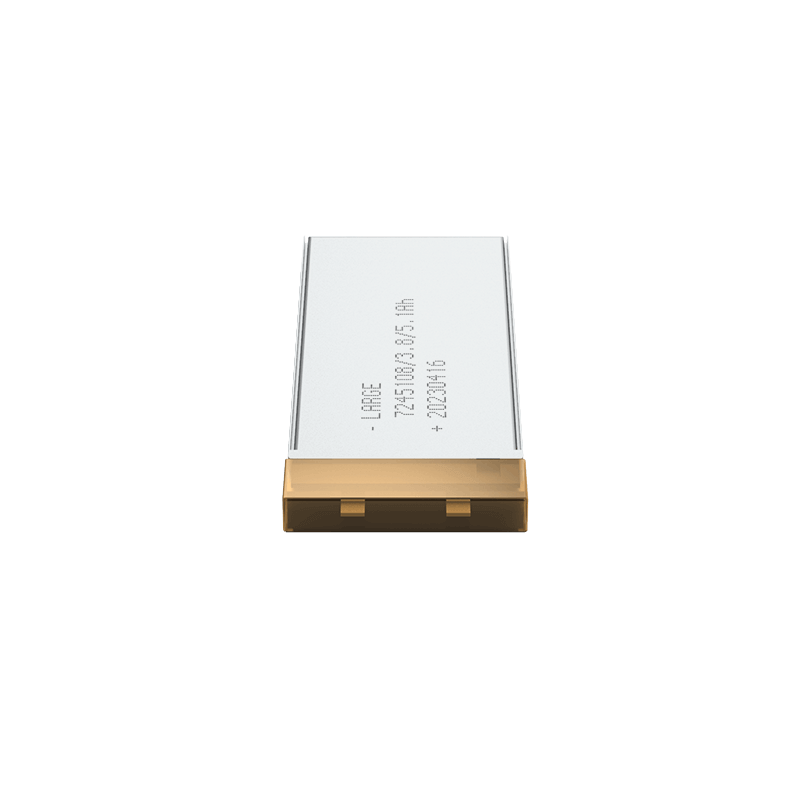

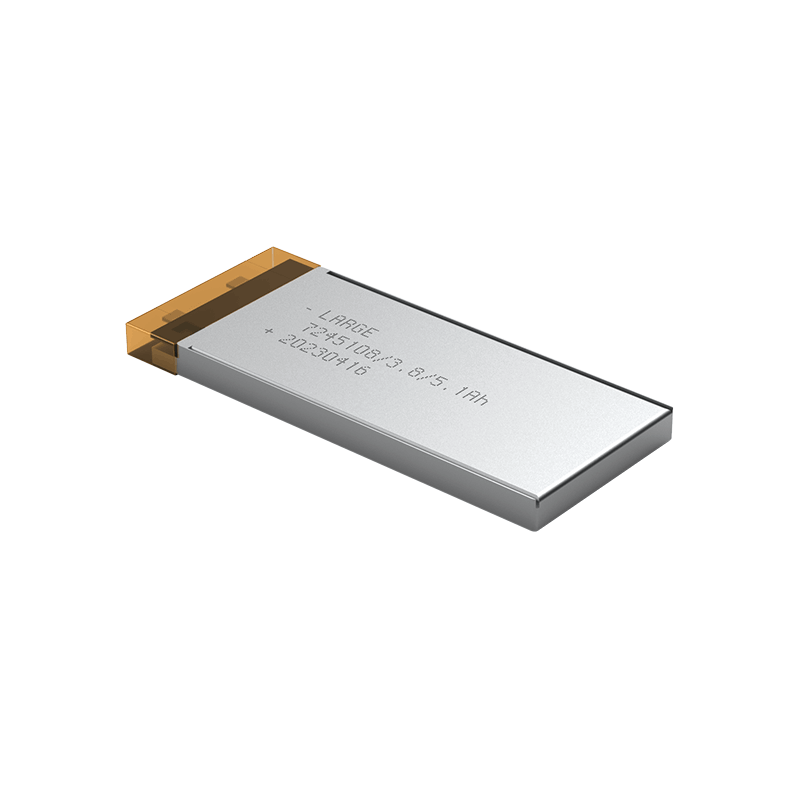

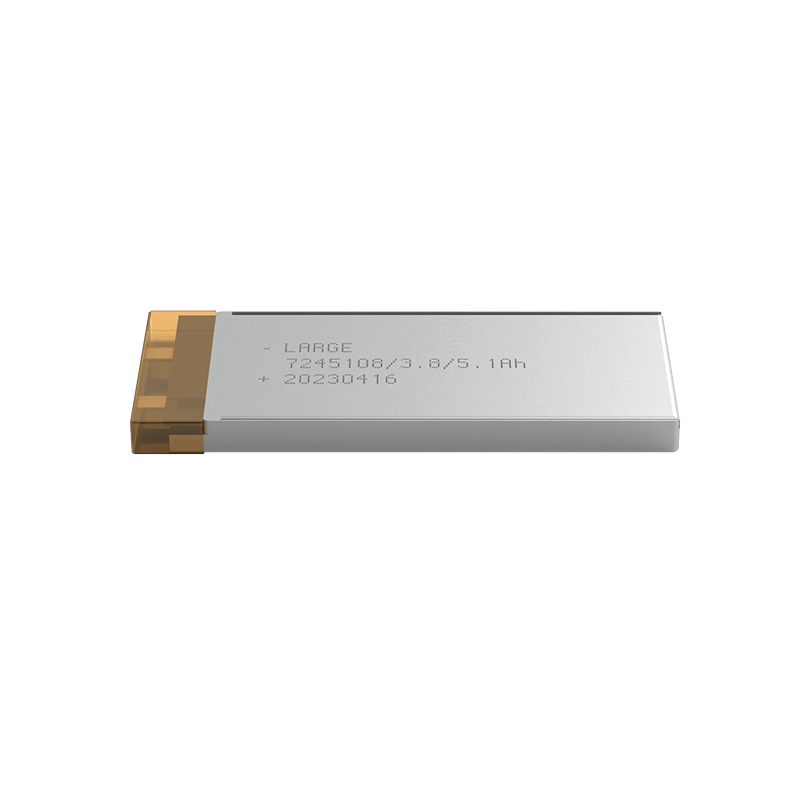

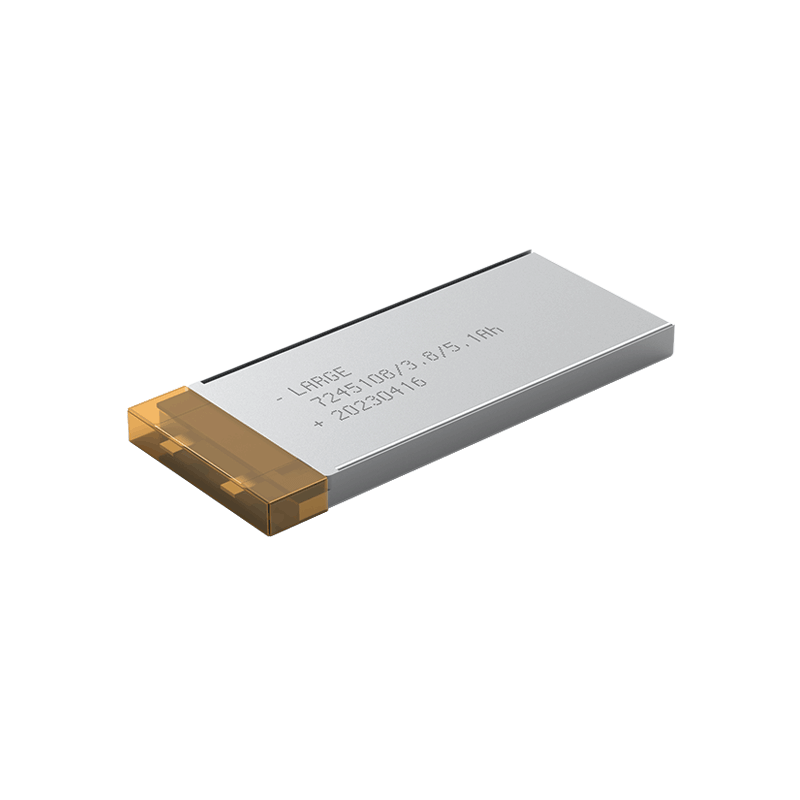

7245108 3.8V 5100mAh VR Image Polymer Lithium-ion Battery Pack

Product number: 01DQ0136-04

Cell model: 7245108-5100mAh-3.8V

Battery specification: 7245108-1S1P-5100mAh-3.8V

Product size: 110*45.5*7.7mm (Max)

Nominal voltage: 3.8V

Nominal capacity: 5100mAh

Finished internal resistance: ≤180mΩ

Charging voltage: 4.35V

Charging current: ≤3.5A

Discharge current: ≤5.0A

Discharge cut-off voltage: 3.0V

Battery weight: 80g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: polymer simple package

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: VR imaging equipment, VR equipment

Product features

1.Polymer package is simple and reliable,and easy to install;

2.Output terminal: Adopt FPC flexible cable plug output mode to increase the electrical reliability of the plug;

3.Hardware output: Gold-plated shrapnel output to increase electrical reliability;

4.Battery protection management: Use special lithium-ion battery protection chip, with high stability, high precision monitoring, accurate control,to minimize safety hazards;

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
