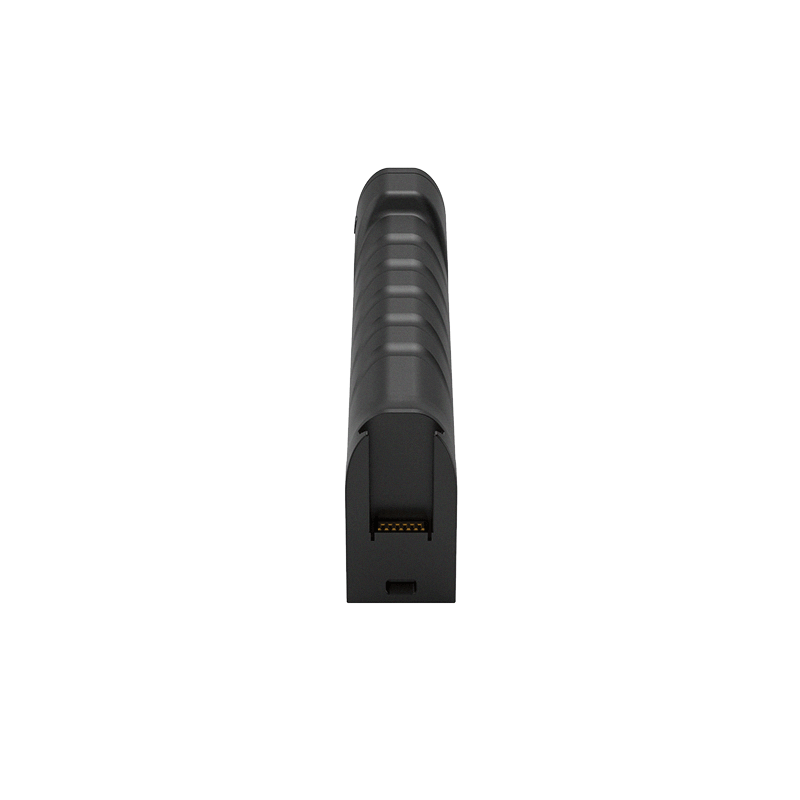

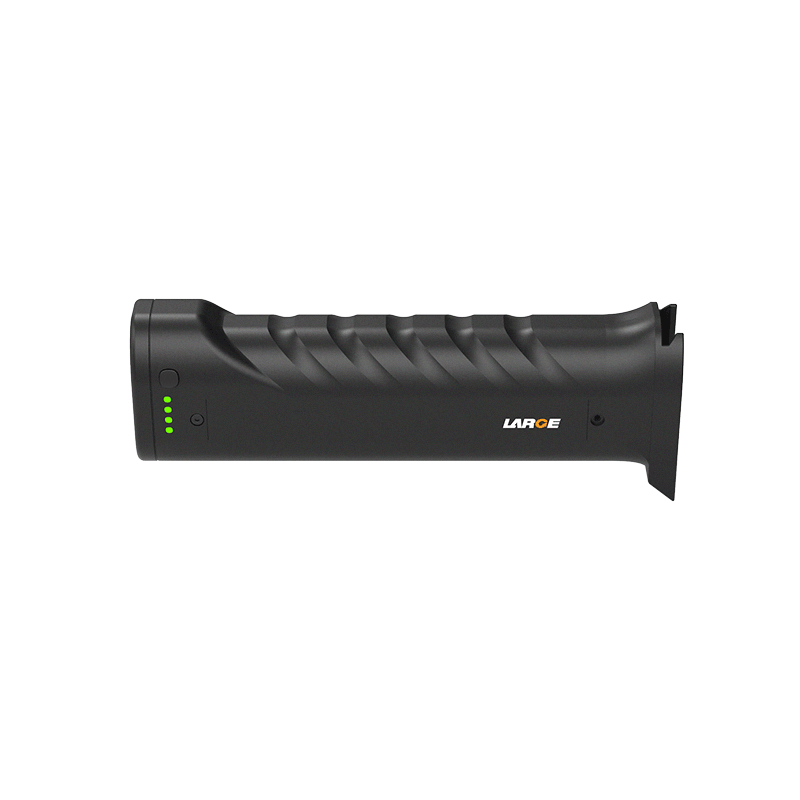

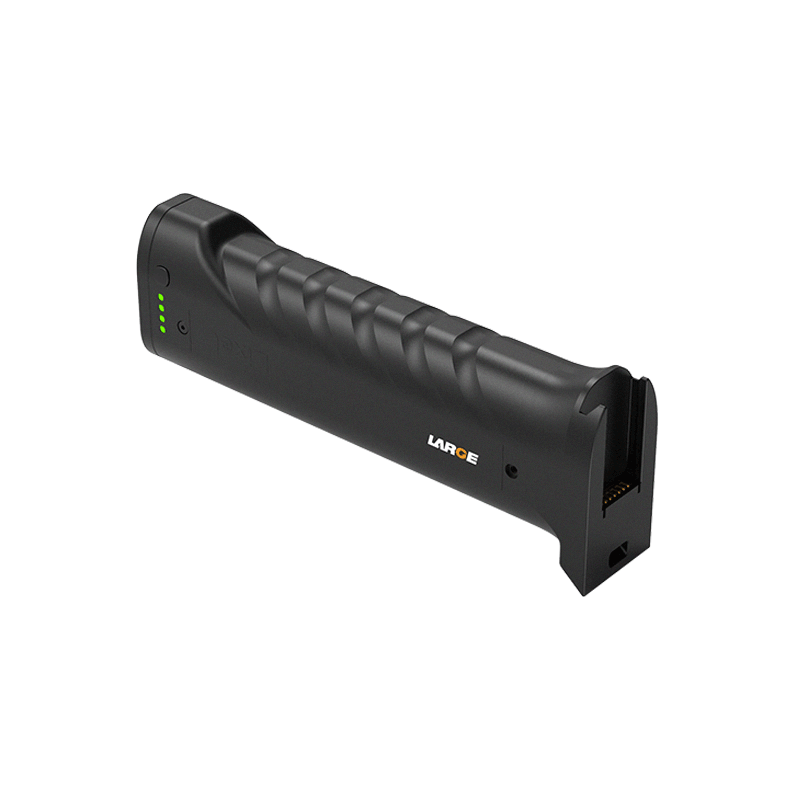

18650 14.4V 3.35AH Mapping Handle Battery

Product number: 37DZ006-01C

Cell model: 18650/3.6V/3.35Ah

Battery specification: 18650-4S1P/14.4V/3.35Ah

Nominal voltage: 14.4V

Nominal capacity: 3.35Ah

Charging voltage: 16.8V

Charging current: ≤2A

Discharge current: 1.5A

Instant discharge current: 6-8A

Discharge cut-off voltage: 11.2V

Finished internal resistance: ≤200mΩ

Battery weight: 340g

Product size: 30*49*162.5mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Temperature protection: 65℃±5℃

Battery case: aluminum alloy case

Communication protocol: SMBUS

Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, coulometer, SMBUS communication, etc.

Application: Mapping handle
