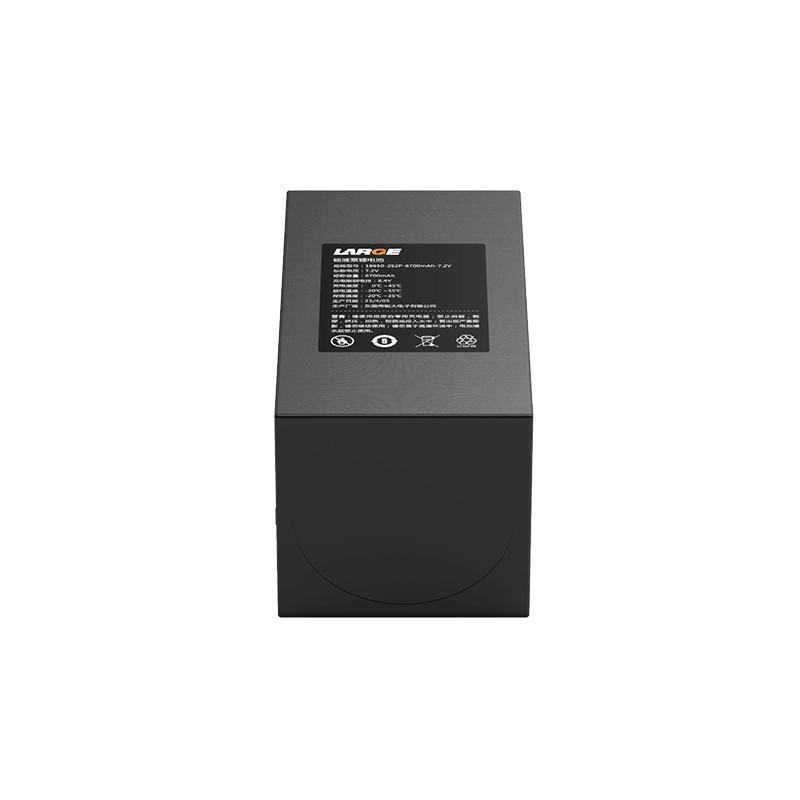

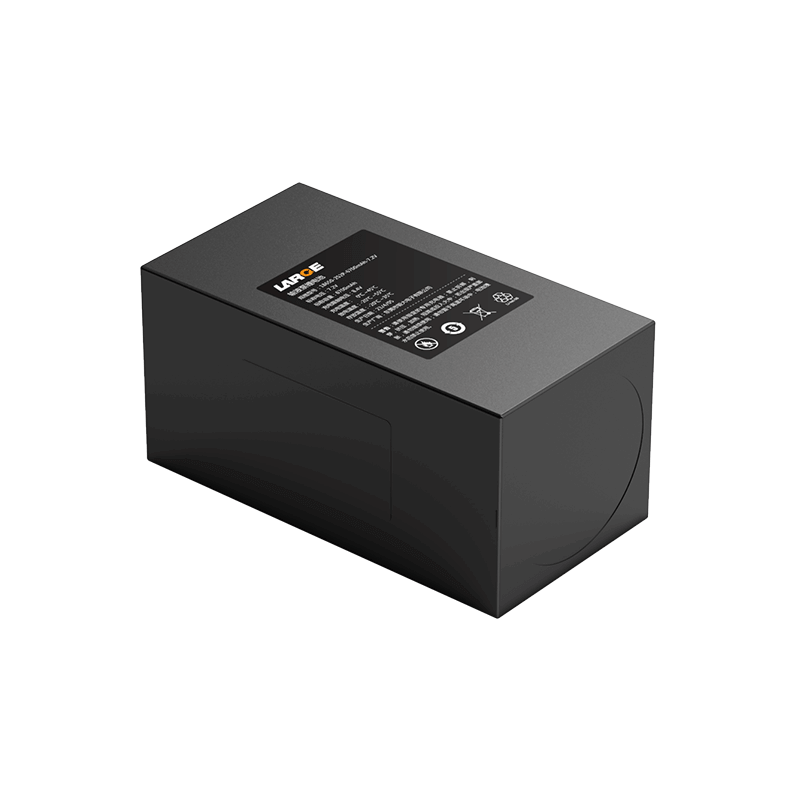

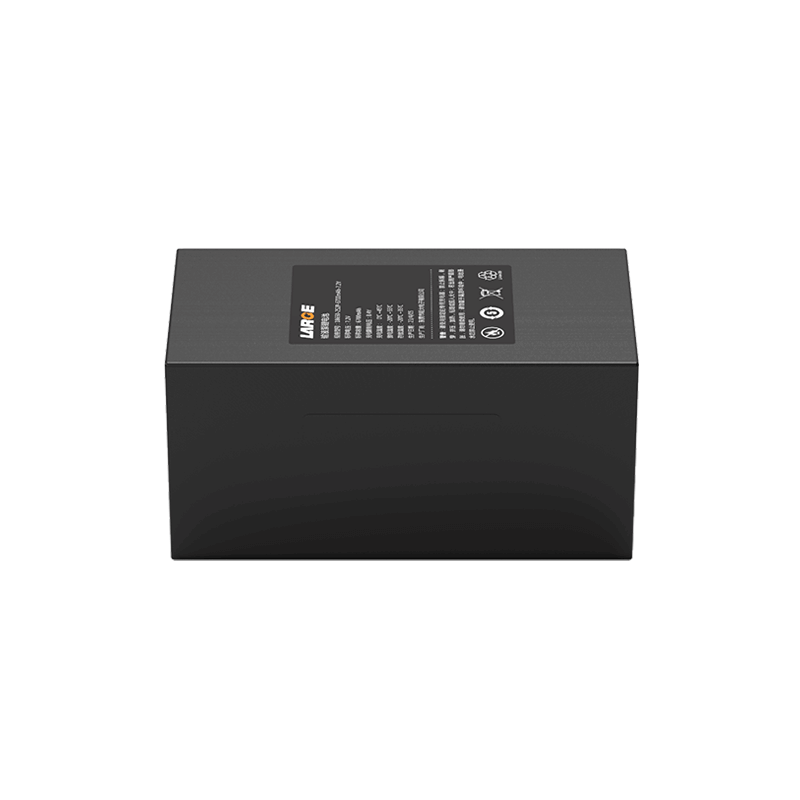

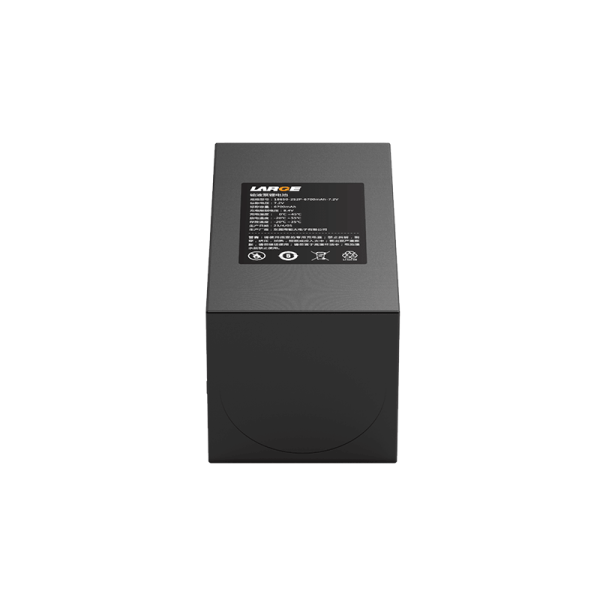

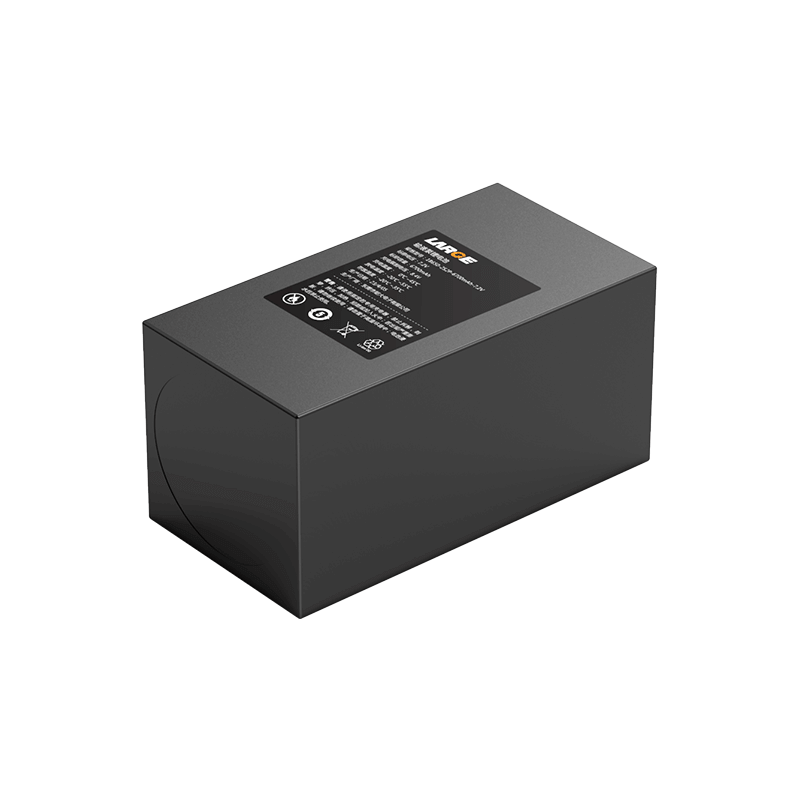

32140 12.8V 15.0Ah Outdoor Monitoring Ball Lithium Iron Phosphate Battery Pack

Product number: 01WQ0113-01

Cell model: 32140/15Ah/3.2V

Battery specifications: 32140-4S1P/15Ah/12.8V

Nominal voltage: 12.8V

Nominal capacity: 15.0Ah

Charging voltage: 14.6V

Charging current: ≤1.3A

Discharge current: 3.0A

Instantaneous discharge current: 3.0A

Discharge cut-off voltage: 11.2V

Finished internal resistance: ≤150mΩ

Battery weight: ≤1.3kg

Product size: 70*75*145mm

Charging temperature: 0 ~ 55℃

Discharge temperature: -20 ~ 55℃

Storage temperature: -20 ~ 45℃

Battery case: PVC

Communication protocol: RS485

Intelligent lithium-ion battery protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.

Applications: outdoor monitoring and control, security communication
