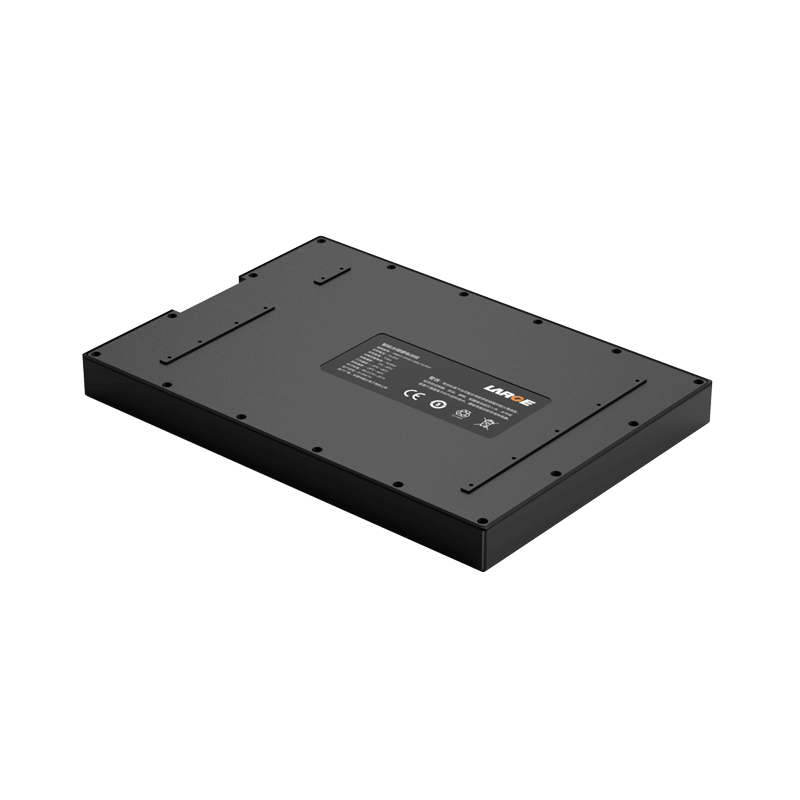

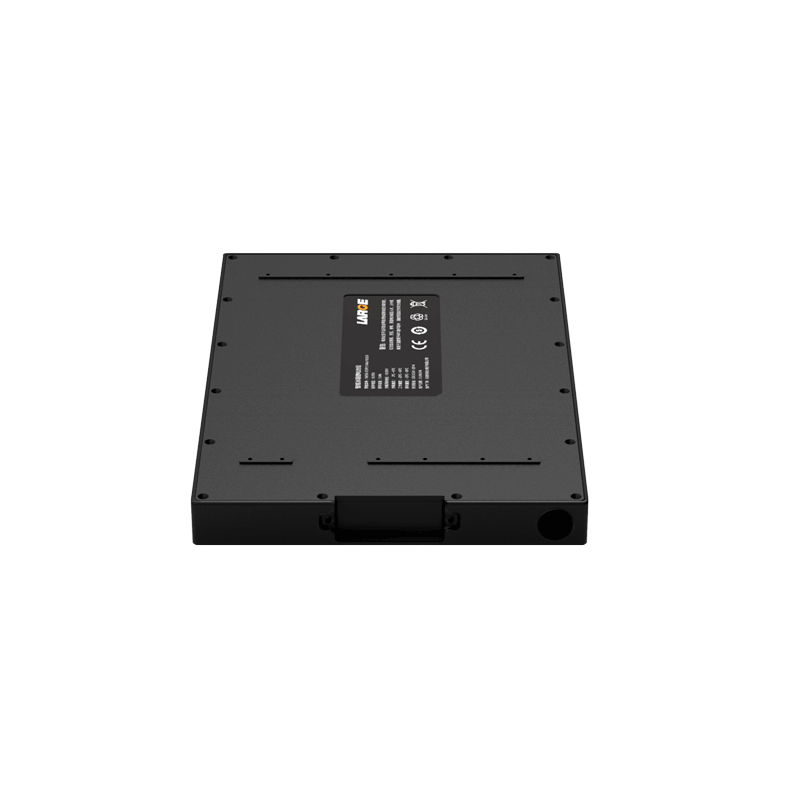

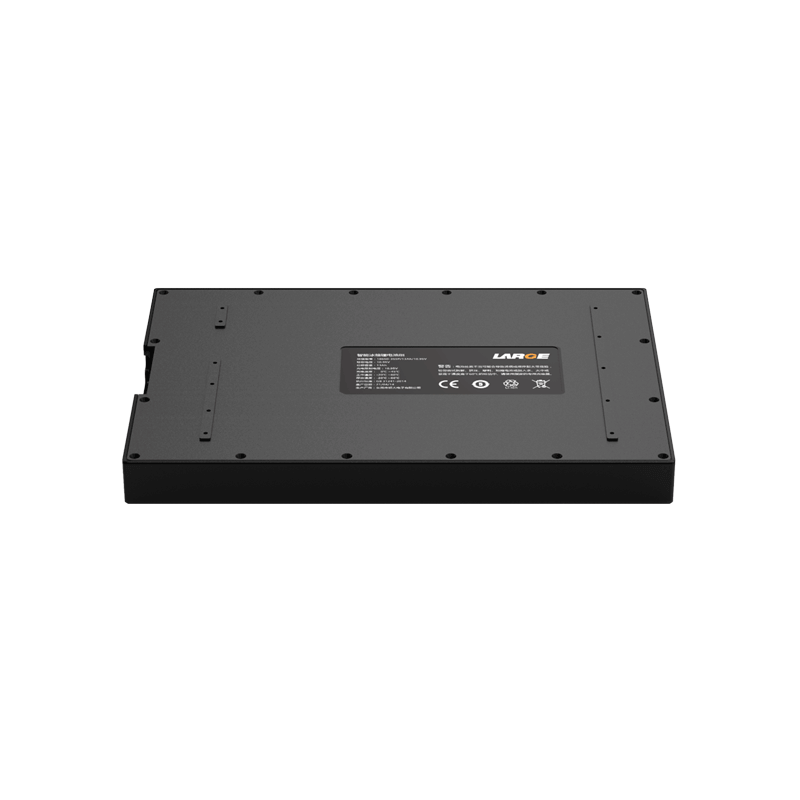

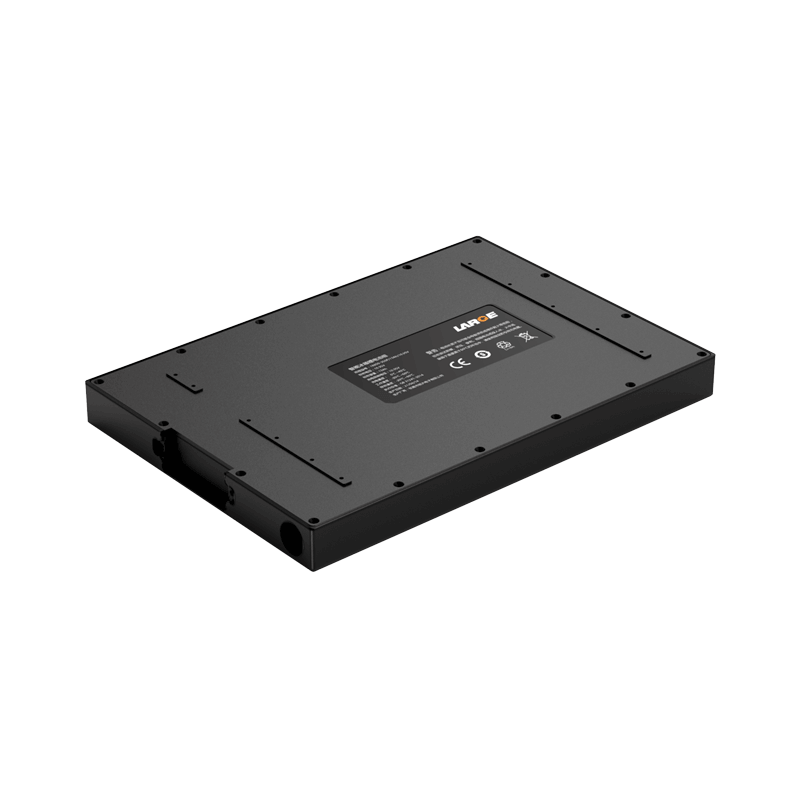

18650 14.4V 13.4Ah Smart Lithium Battery for Encoder With SMBus Communications

Product number: 08DQ0022-03T

Cell model: 18650-3350MAH-3.6V

Battery specification: 18650-4S4P-13.4AH-14.4V

Product dimension: 260*182*23.5mm (Max)

Nominal voltage: 14.4V

Nominal capacity: 13.4Ah

Charging voltage: 16.8V

Charging current: ≤5A

Discharge current: ≤5A

Discharge cut-off voltage: 11.2V

Finished product internal resistance: ≤150mΩ

Battery weight: 1000G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 35 ° C

Battery package: plastic case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: encoders, decoding equipment, portable handheld devices

Product Features

1.ABS+PC shell, an aluminum alloy shell, increases the reliability and immobility of the battery.

2.Battery protection management: Adopt imported protection chips with high stability, good precision monitoring and precise control to minimize safety risks.

3.Data communication management: Use Ti-Smbus software management chip, precise data transmit and accurate temperature control to minimize security risks.

4.The Battery pack has good safety, nice discharge performance and high rate, supports 3C discharge. The discharging power is up to 90%.

5.The battery pack has good safety, nice discharge performance and long cycle life.

6.The battery cycle life is high, in line with low carbon, energy saving, and environmental protection values;
