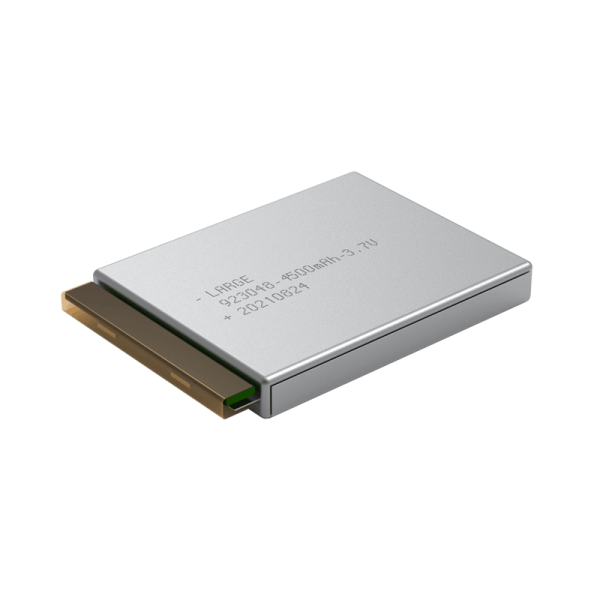

4500mAh 3.7V Lithium Polymer Battery for Network Signal Testing Instrument

Product number: 01WQ0037-01T

Cell model: 923048-1500MAH-3.7V

Specification: 923048-1S3P-4500MAH-3.7V

Product size: 52.5*30.5*28mm (Max)

Nominal voltage: 3.7V

Nominal capacity: 4500mAh

Charging voltage: 4.2V

Charging current: ≤ 2.2a

Discharge current: ≤ 4.5a

Discharge cut-off voltage: 3.0V

Product internal resistance: ≤180mΩ

Battery weight: 140G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery package: PVC heat shrinkable film package

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: network signal testing equipment, portable, handheld terminal testing equipment

Product Features

1.Black PVC heat shrinkable film package is simple, reliable and easy to be installed.

2.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

3.Battery protection management: Adopt imported seiko protection chip with good stability, high precision monitoring and accurate control, to eliminate potential safety hazards to the maximum.

4.The battery pack has good safety, nice discharge performance and long cycle life.

5.The battery cycle has long cycle life, in line with low carbon, energy saving, environmental protection values;
