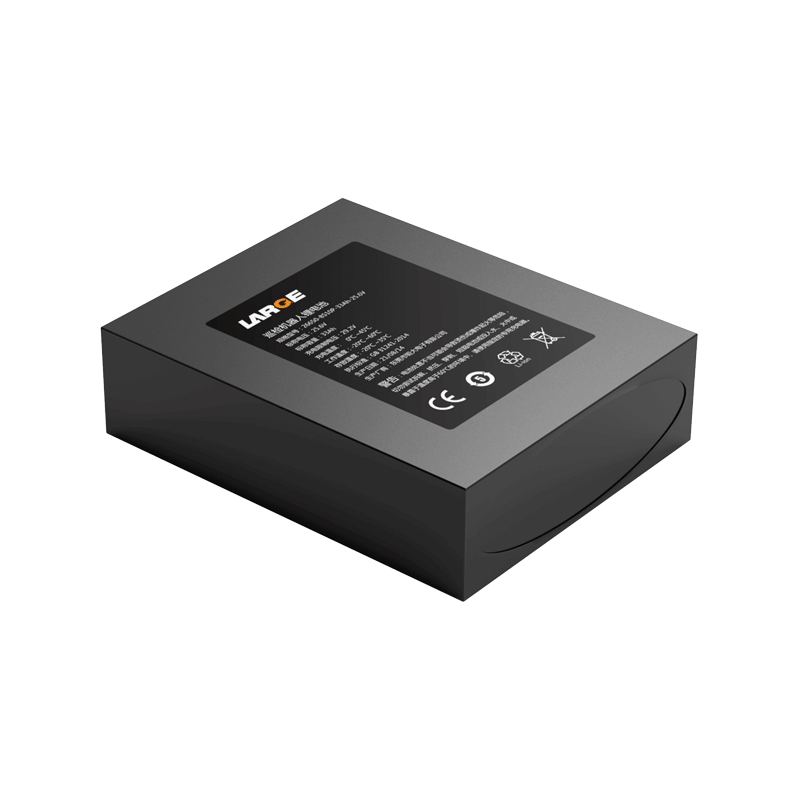

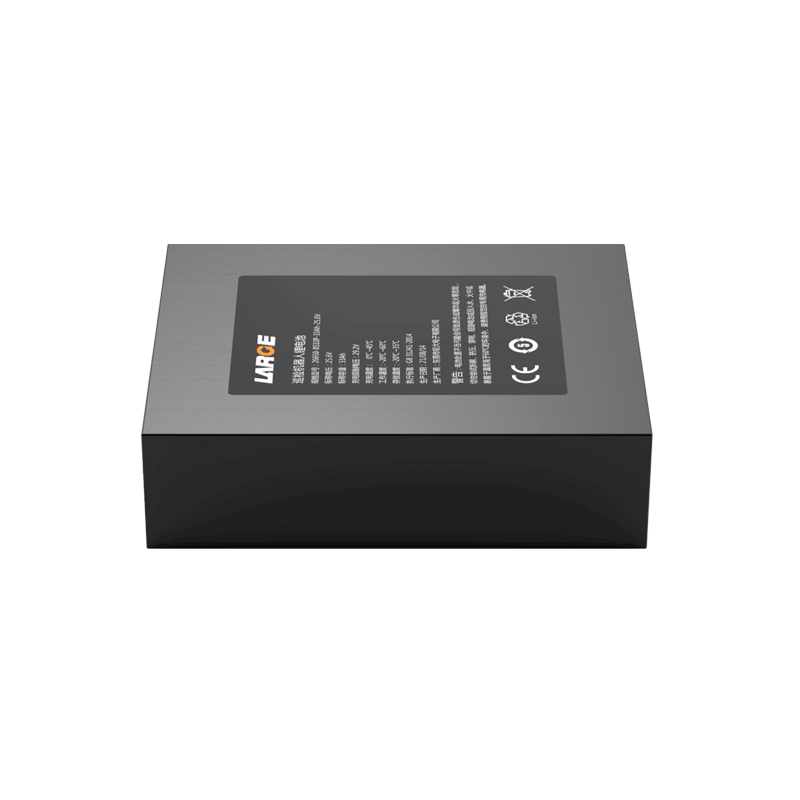

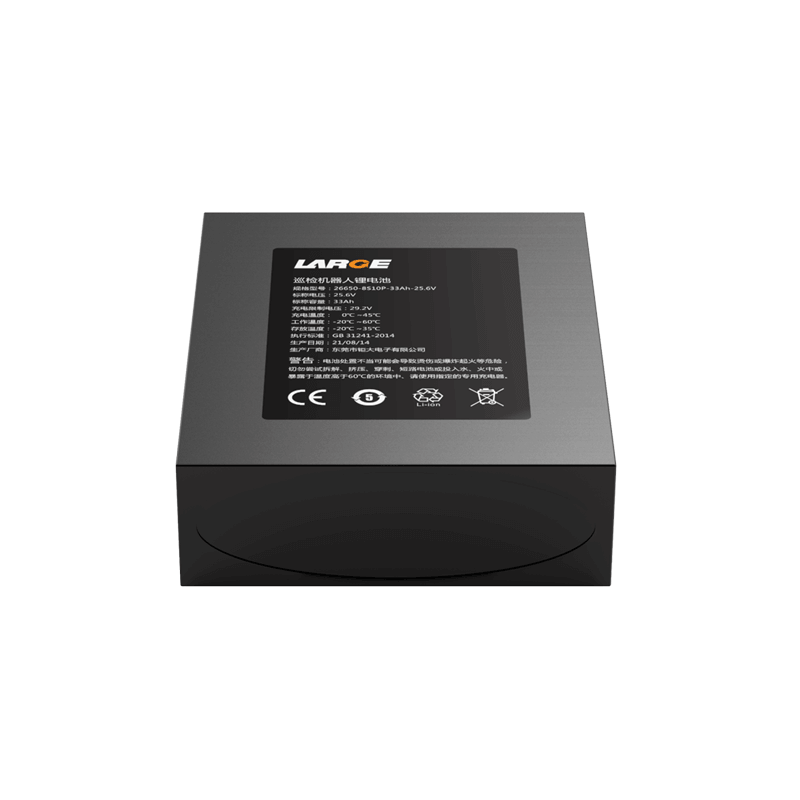

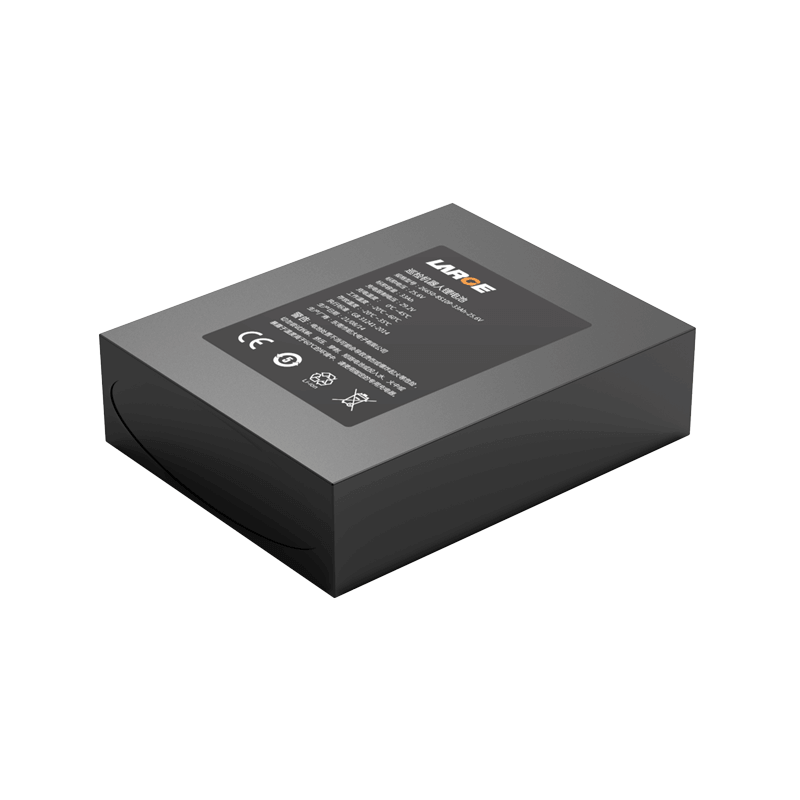

26650 25.6V 33Ah LiFePO4 Battery for Inspection Robot

Product number: 08DQ0042-01

Cell model: 26650-3300MAH-3.2V

Specification: 26650-8S10P-33AH-25.6V

Nominal voltage: 25.6V

Nominal capacity: 33Ah

Charging voltage: 29.2V

Charging current: ≤16A

Discharge current: ≤33A

Instantaneous discharge current: 20A

Discharge cut-off voltage: 16V

Finished product internal resistance: ≤150mΩ

Battery weight: 9000G

Product size: 280*225*76mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: blue PVC heat shrinkable film package

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: inspection robot, power monitoring robot, security robot

Product Features

1.Blue PVC heat shrinkable film package is simple, reliable and easy to be installed.

2.Connector output terminal: adopt high temperature resistant wire output mode to increase conductive reliability and high temperature resistance;

3.Battery protection management: Adopt special protection chip for lithium battery with good stability, high precision monitoring and precise control, to eliminate potential safety hazards to the maximum.

4.The battery pack has good safety, nice discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
