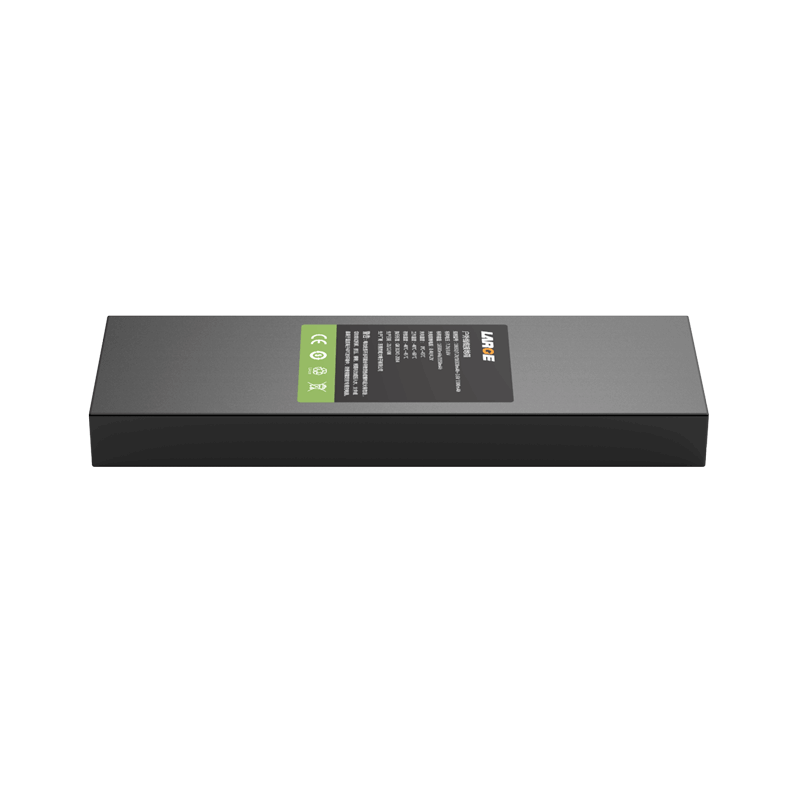

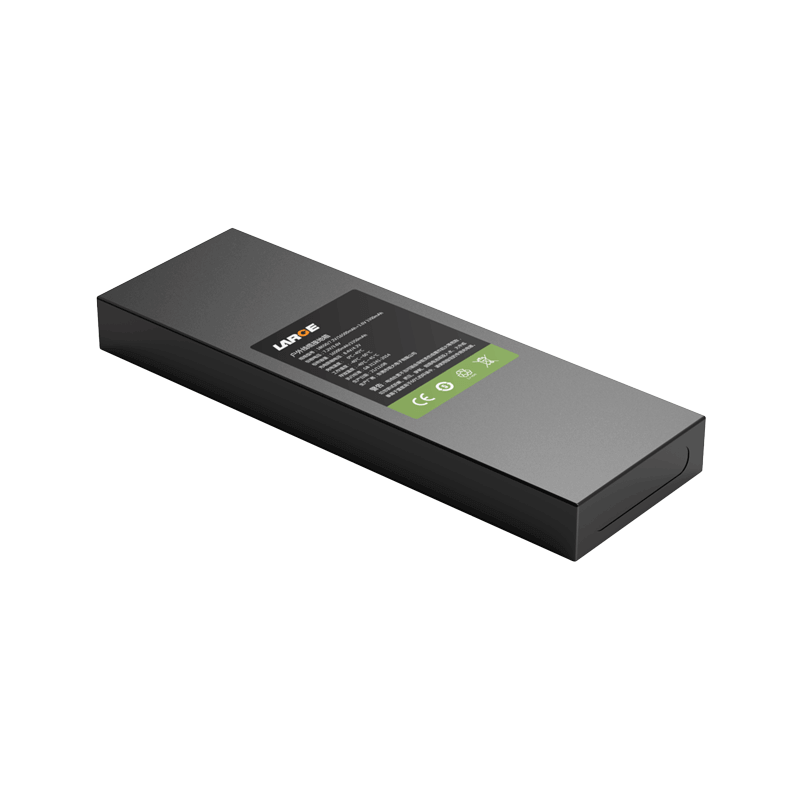

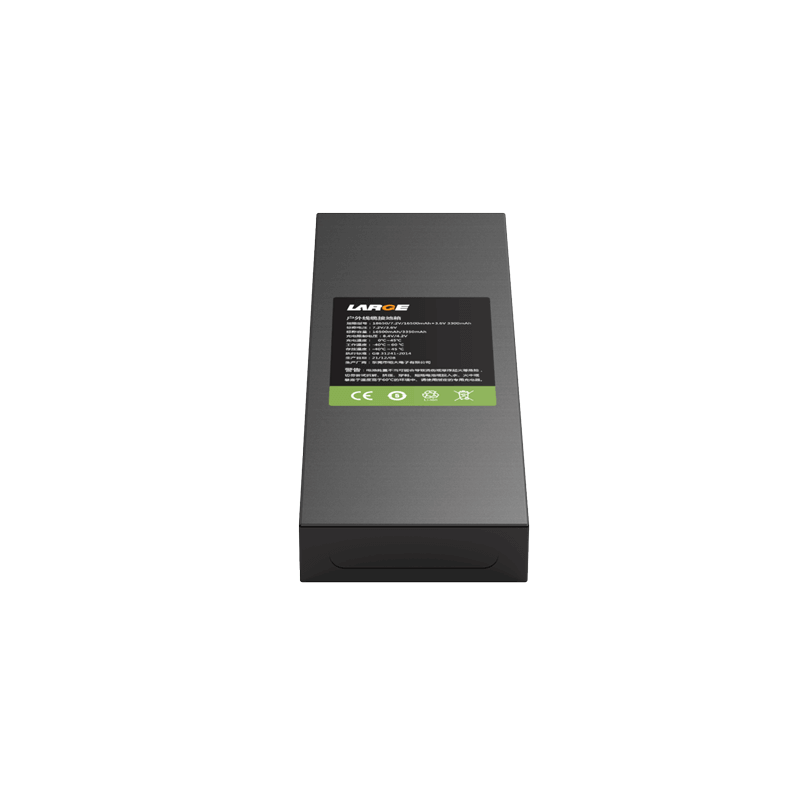

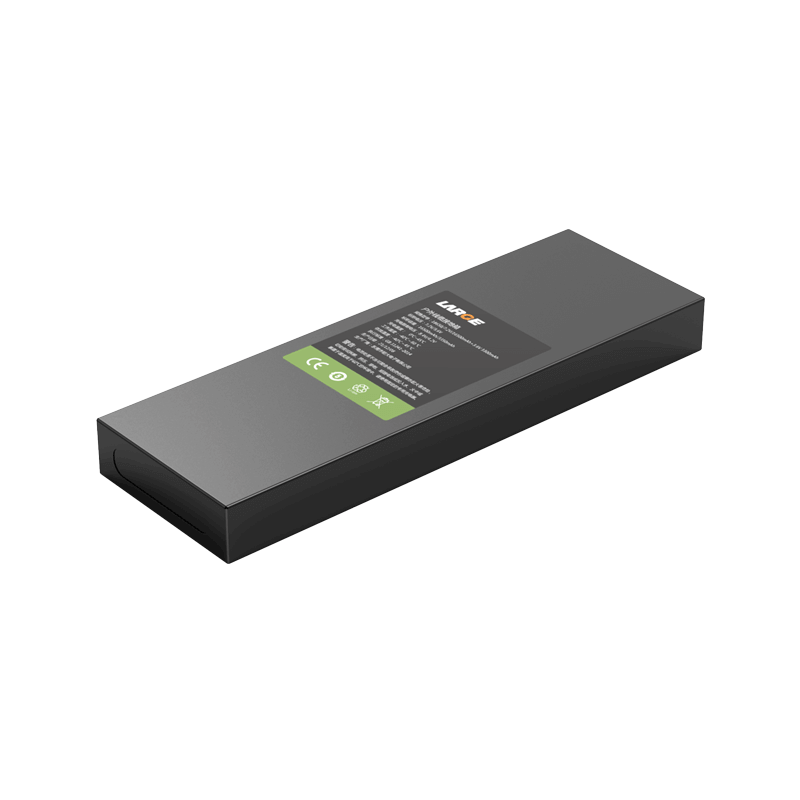

18650/2S5P/7.2V/16500mAh+18650/1S1P 3.6V 3300mAH Lithium-ion Battery for Outdoor Cable Grounding Box

Project number:42DZ002-03

Cell model: 18650 3.6V/3350mAh (low temperature)

Specification: 18650/2S5P/7.2V/16500mAh+18650/1S1P 3.6V 3300mAH

Nominal voltage: 7.2V/3.6V

Nominal capacity: 16500mAh/3350mAh

Charging voltage: 8.4V/4.2V

Charging current: ≤3A

Discharge current: ≤3A

Instantaneous discharge current: 3-6A

Discharge cut-off voltage: 5.0V/2.5V

Finished product internal resistance: ≤150m Ω

Battery weight: 650g

Product size: 23*75*225mm (Max)

Charging temperature 0 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -40 ° C to 45 ° C

Battery case: support +PVC

Communication: no

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: outdoor cable grounding box

Product Features

1.Low energy consumption;

2.The battery pack is safe and has long cycle life.

3.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

4.Two channels output
