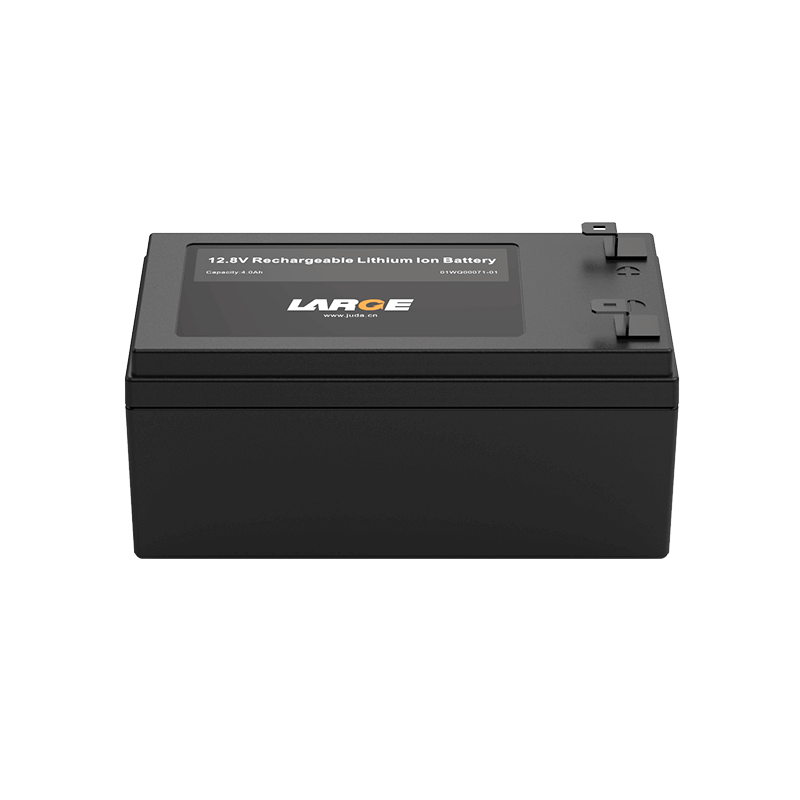

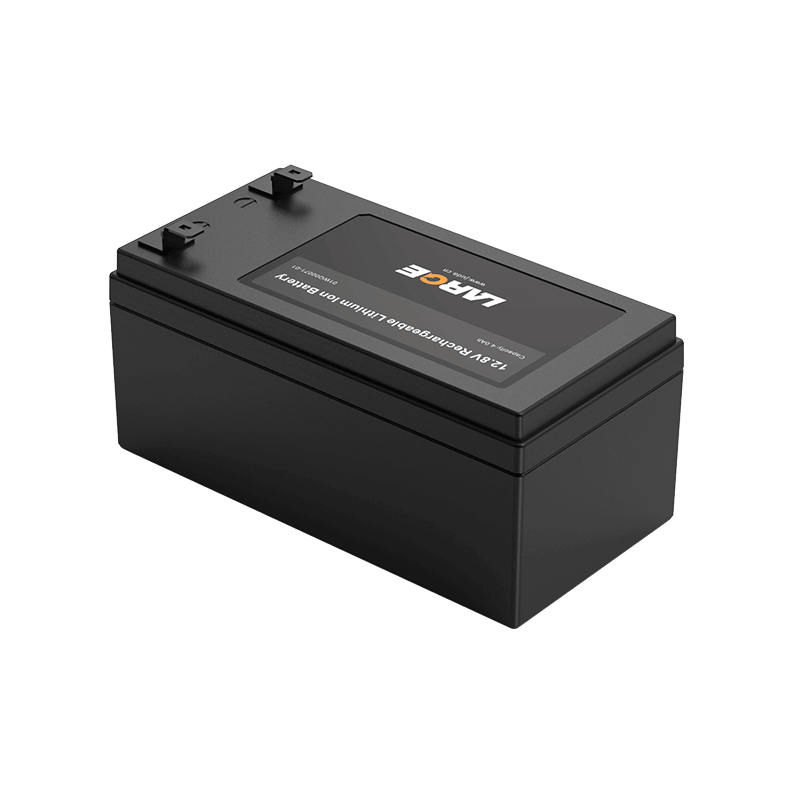

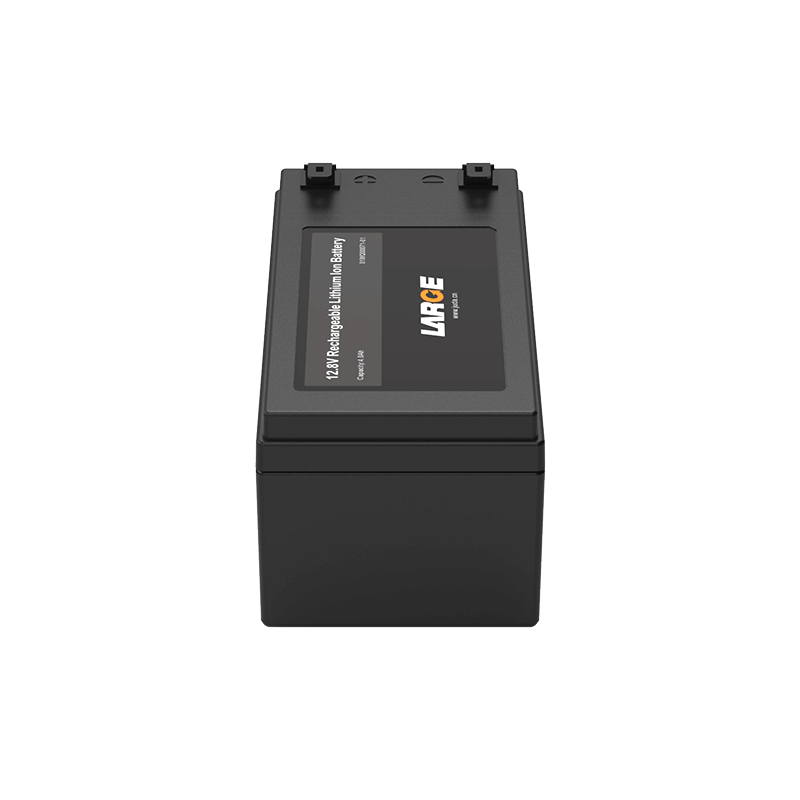

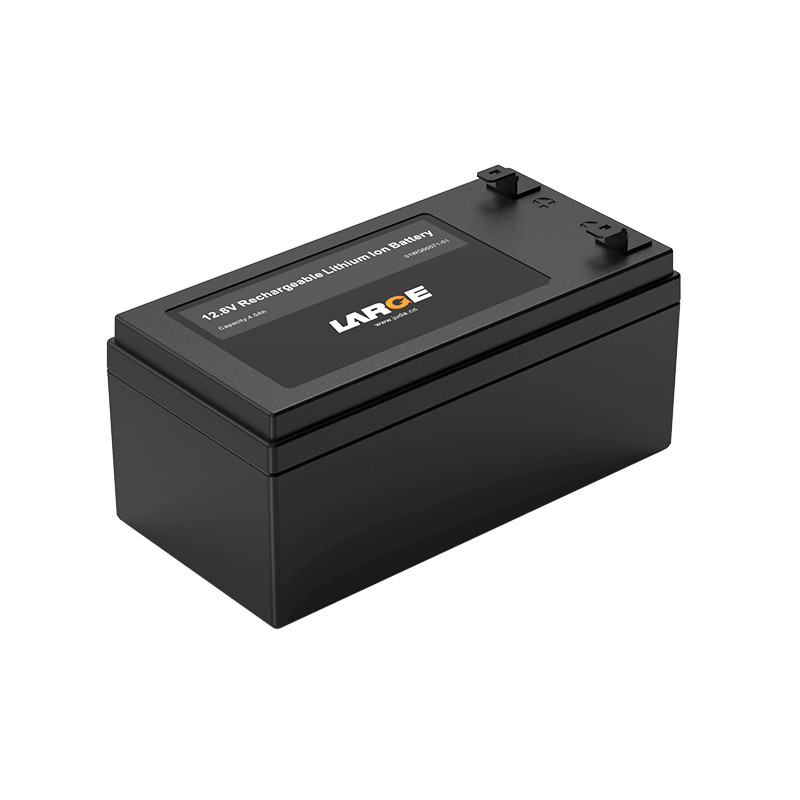

26650 12.8V 4.0Ah LiFePO4 Lithium for Signal Detection

Project number: 01WQ00071-01

Cell model: IFR26650/4000mah /3.2V

Battery specification: IFR26650-4S1P/4.0AH/12.8V

Nominal voltage: 12.8V

Nominal capacity: 4.0Ah

Charging voltage: 14.4V

Charging current: ≤4.0A

Discharge current: 6.0A

Instantaneous discharge current: 8A

Discharge cut-off voltage: 10.0V

Product internal resistance: ≤240mΩ

Battery weight: 500g

Product size: 59.5*67.3*134.1mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 35 ° C

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Signal detection
