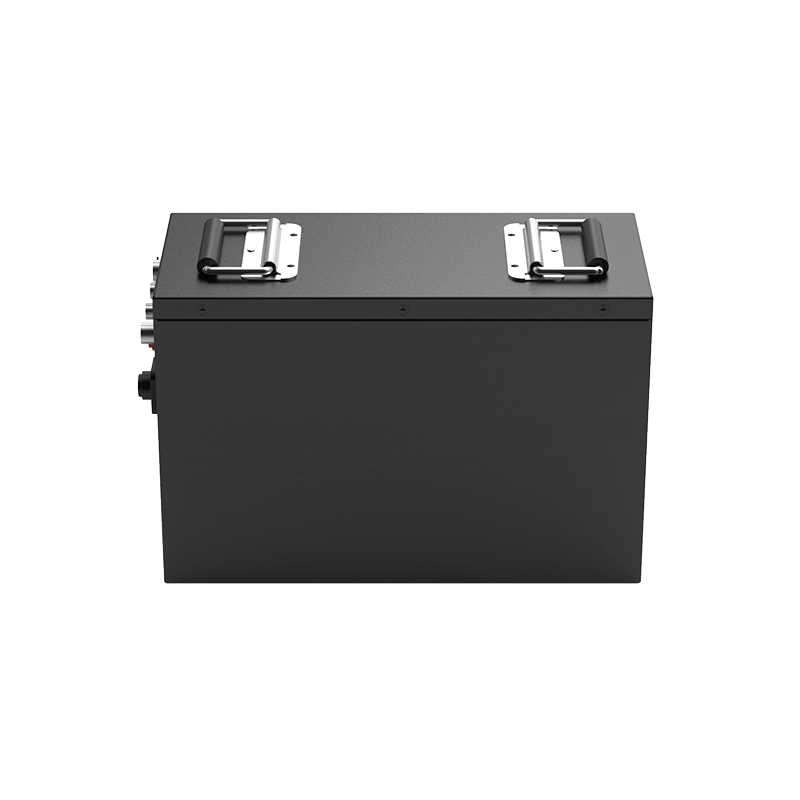

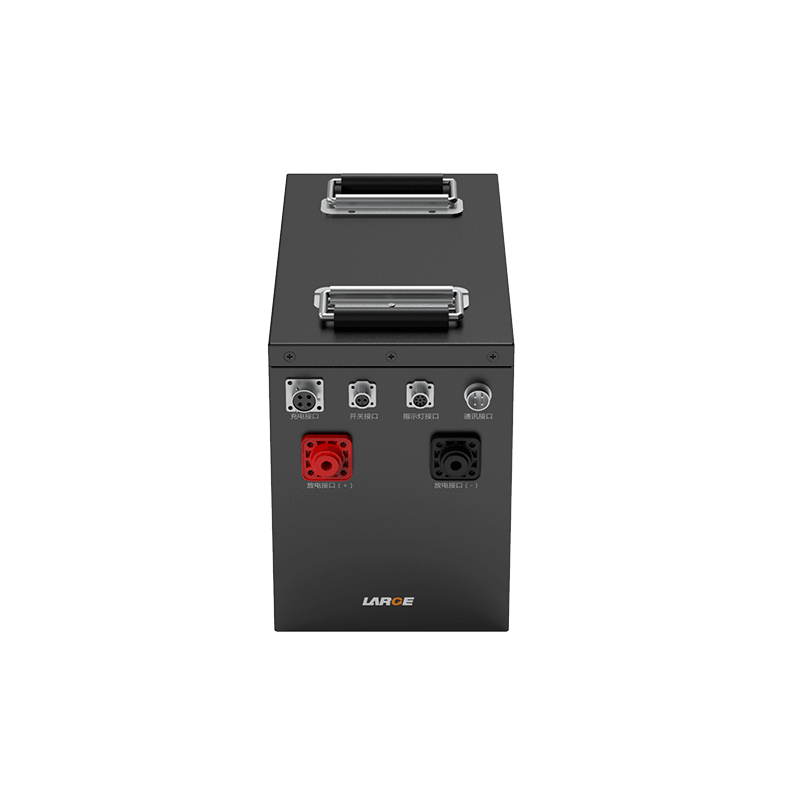

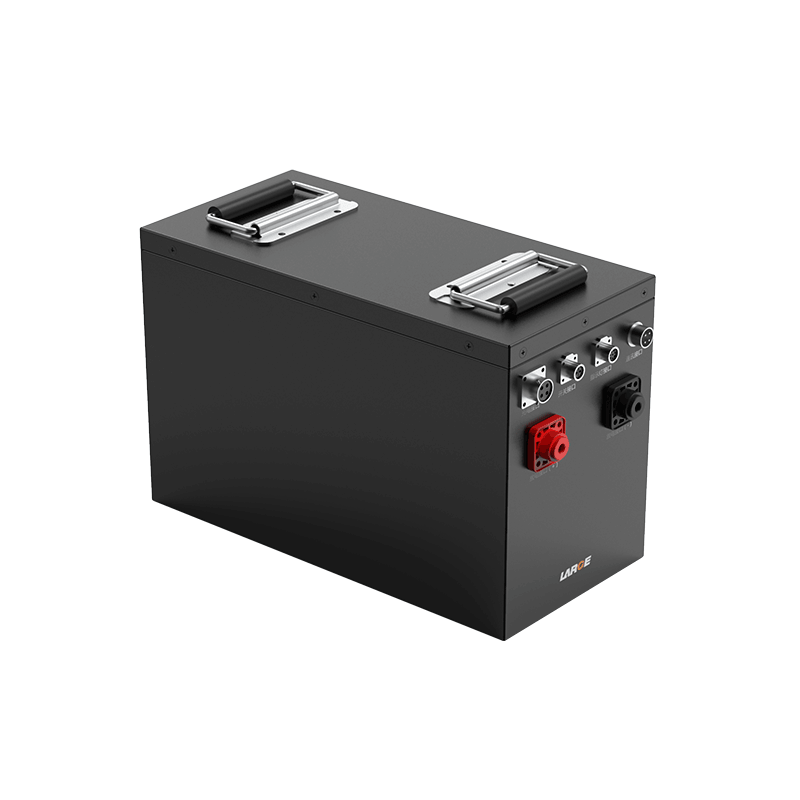

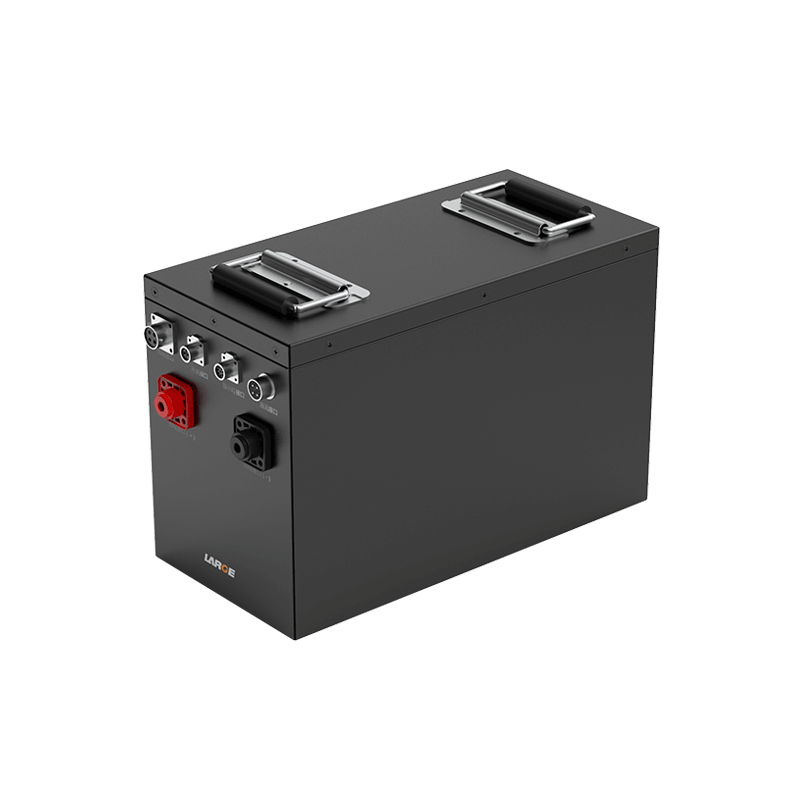

22.4V 50Ah LiFePO4 Battery for Surgical Robot

Product number: 01WQ0069-01

Cell model: LF50-50Ah-3.2V

Battery specification: LF50-7S1P-50Ah-22.4V

Product dimension: 350*170*240mm

Nominal voltage: 22.4V

Nominal capacity: 50Ah

Finished internal resistance: ≤100mΩ

Charging voltage: 25V

Charging current: ≤10A

Discharge current: ≤50A

Discharge cut-off voltage: 20V

Battery weight: 1200g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ℃

Battery case: Aluminum alloy case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on

Applications: surgical robotic equipment, energy storage, robotics

Product Features

1.Aluminum alloy shell increases the reliability and firmness of the battery;

2.The battery pack is assembled by special cell bracket, protected by epoxy plate and connected by special nickel sheet, which has good vibration and impact resistance.

3.Connector plug output terminal: use terminal output to increase the conductivity reliability of the plug;

4.Battery protection management: Use special lithium battery protection chip, with good stability, high precision monitoring, accurate control,temperature protection and other functions, so as to maximize the elimination of safety hazards;

5.Data communication management: Use 485 communication for precise data transmission, CAN bus, precise temperature control, real-time battery condition monitoring and control to maximize the elimination of security risks.

6.BMS communication uses optical coupling isolation. The product supports 485 bus as optional communication for customers, supports networking, and communicates at a baud rate of 9600bps.

7.BMS products support the CAN bus.The physical layer non-data link layer completely follows the CAN2.0B protocol, and are optional for customers.The baud rate is 250Kbps

8.The battery pack has good safety, nice discharge performance and long cycle life;

9.The battery pack has long cycle life, in line with the value of low carbon, energy saving, and environmental protection;
