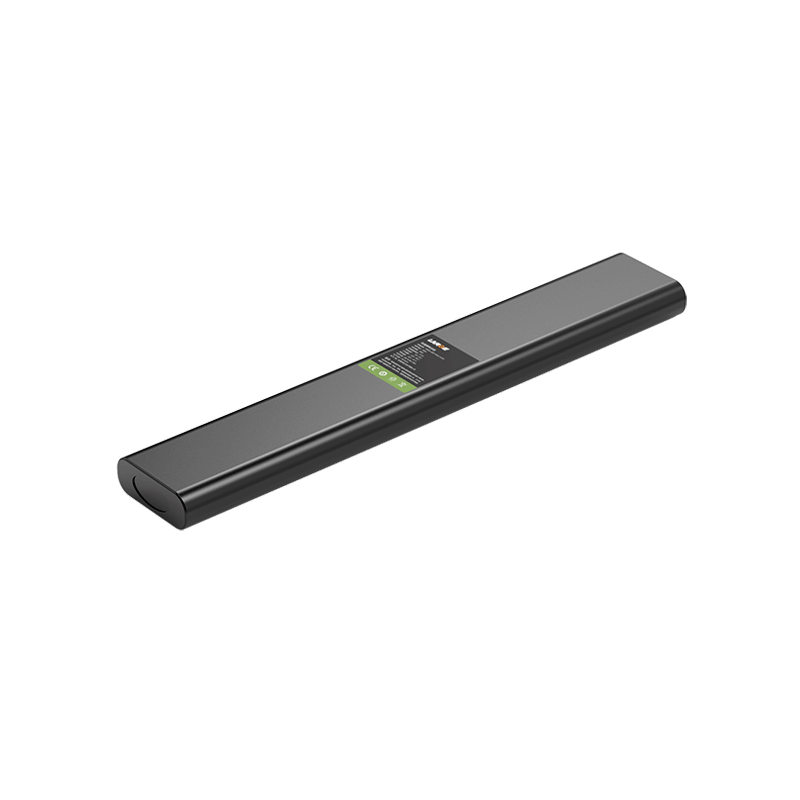

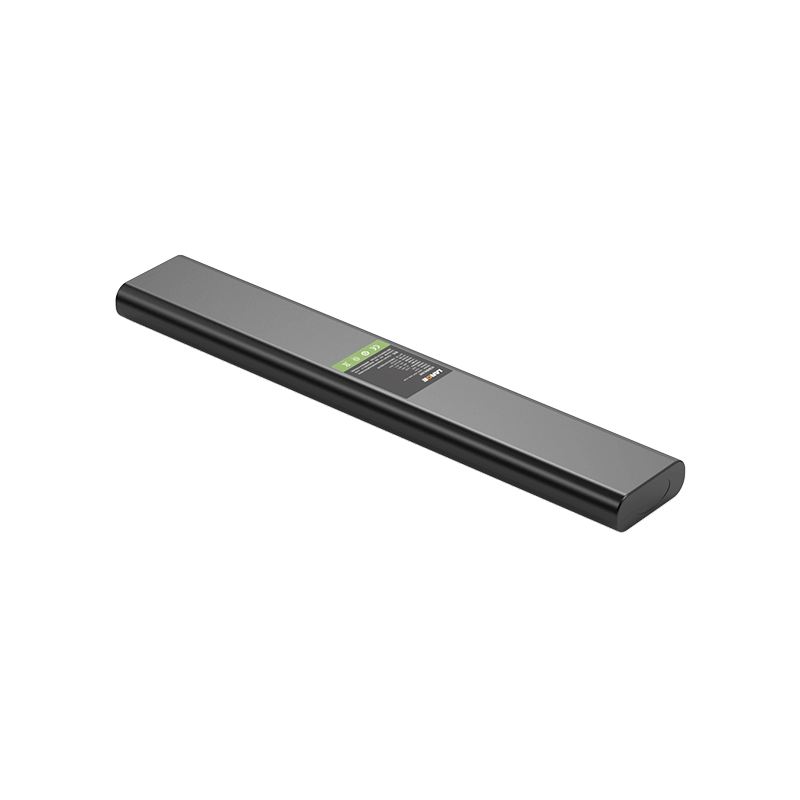

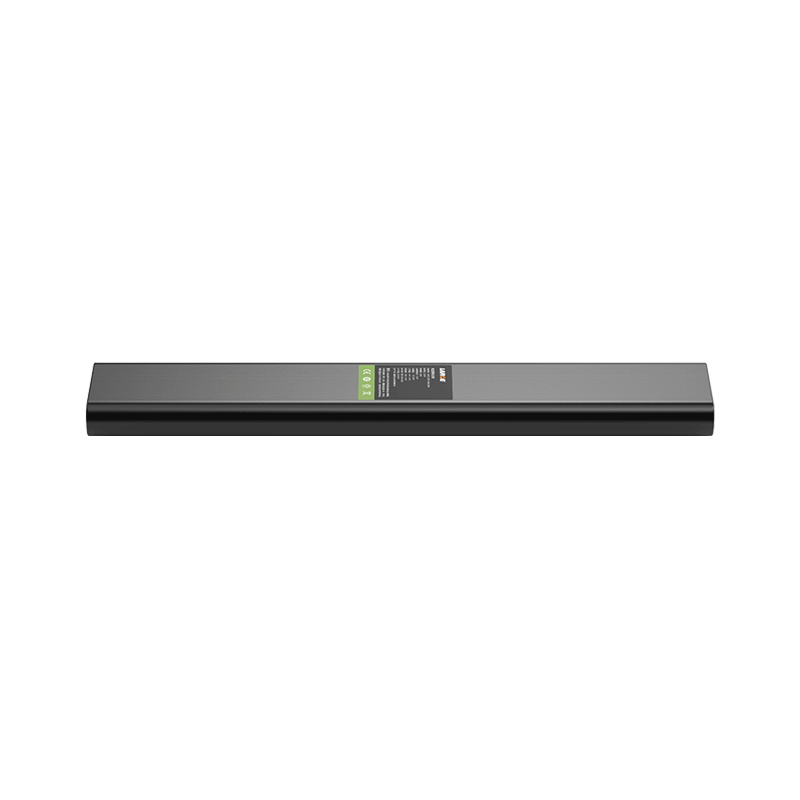

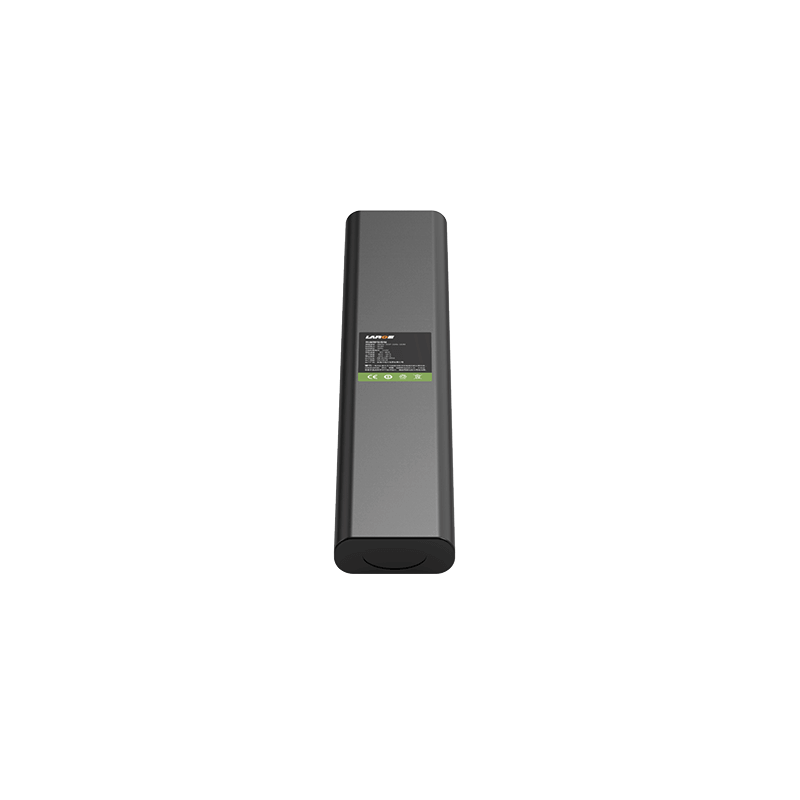

18650 10.8V 16Ah Low Temperature Lithium-ion Battery Pack

Product number: 36AQ006-01

Battery model: 18650L-3350mAh-3.6V

Battery specification: 18650-3S5P-16Ah-10.8V

Product size: 388×57×21mm

Nominal voltage: 10.8V

Nominal capacity: 16.75Ah

Charging voltage: 12.6V

Charging current: 8A (0.5C)

Discharge current: 8A (0.5C)

Discharge cut-off voltage: 7.5V

Finished internal resistance: ≤150mΩ

Battery weight: ≤1kg

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery package: PVC heat seal process

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.

Application: Laptop battery

Product Features

1.PVC heat sealing process is simple and reliable, and is easy to install.

2.SMBUS Communication protocol

3.Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability;

4.Battery protection management: Use imported well-known brand protection chip with high stability, nice precision monitoring, precise control, to eliminate security risks;

5.The battery pack has good safety, nice discharge performance and long cycle life;

6.The battery pack has a high cycle life, which conforms to the value concept of low carbon, energy saving and environmental protection.
