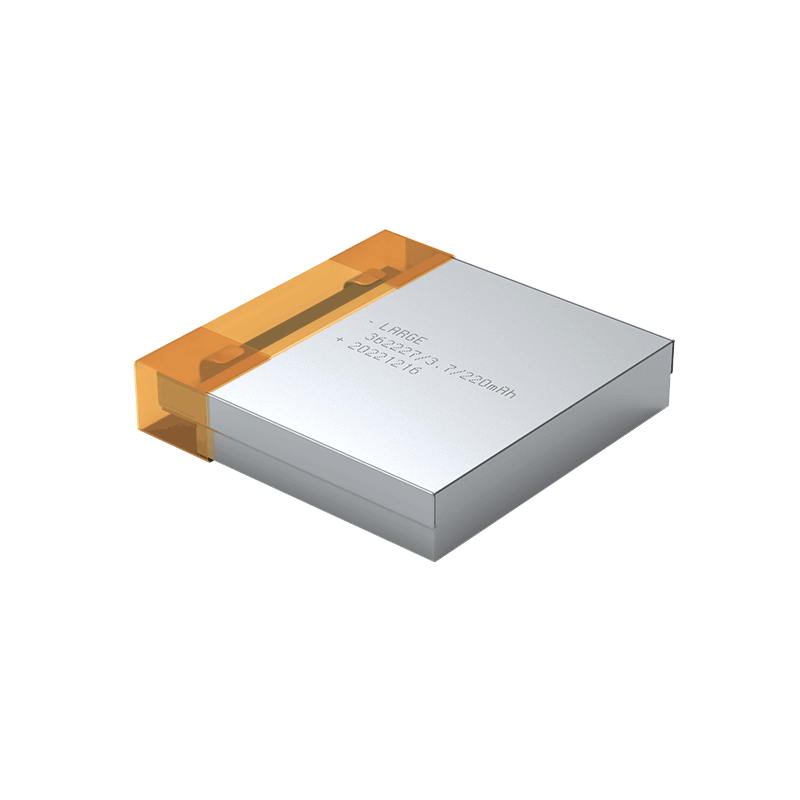

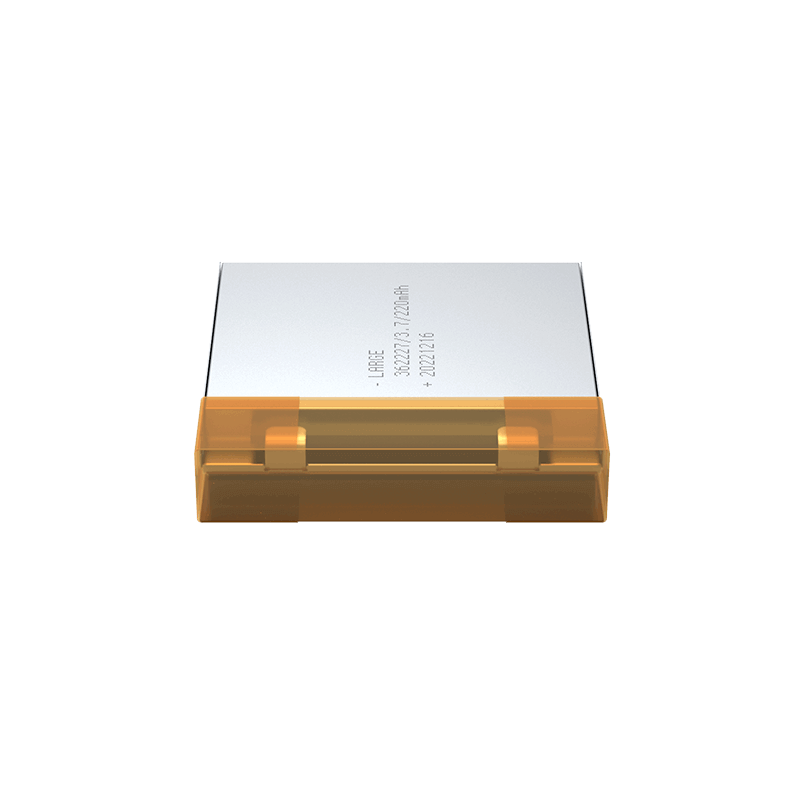

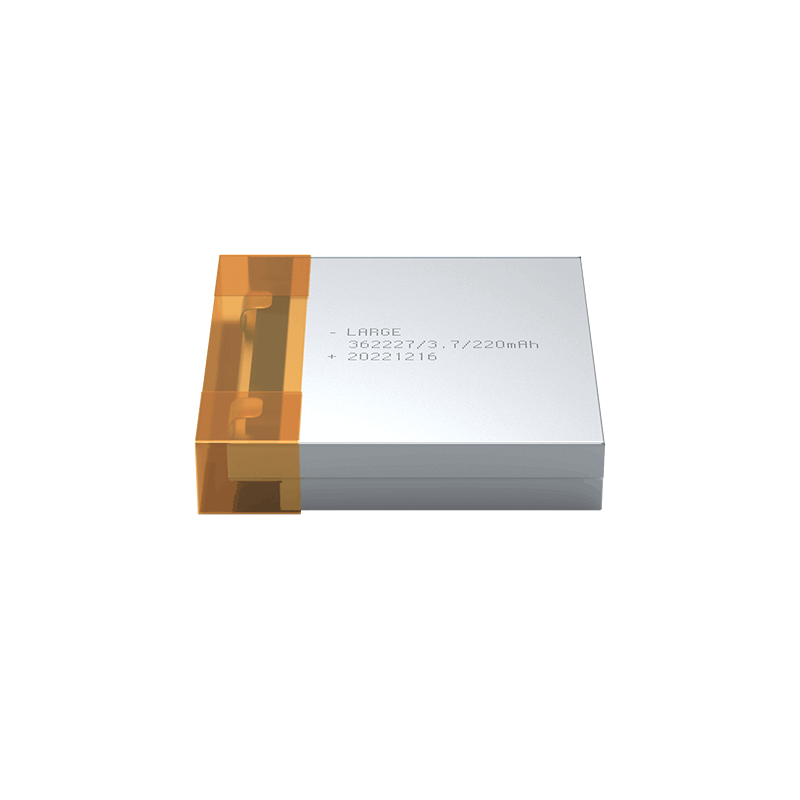

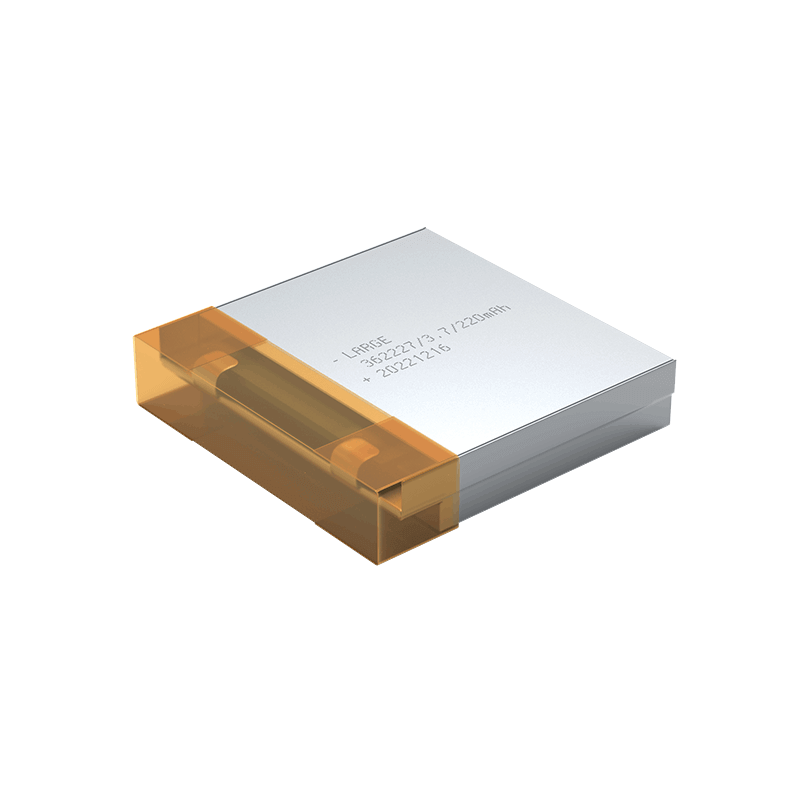

362227 3.7V 220mAh Lithium Polymer Battery for Infrared Night Vision

Product number: 36AQ517-27

Battery model: 362227-220mAh-3.7V

Battery specification: 362227-1S1P-220mAh-3.7V

Product size: 30*22.5*4.3mm (Max)

Nominal voltage: 3.7V

Nominal capacity: 220mAh

Finished internal resistance: ≤300mΩ

Charging voltage: 4.2V

Charging current: ≤0.1A

Discharge current: ≤0.2A

Discharge cut-off voltage: 3.0V

Battery weight: 10g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: polymer simple package

Output mode: JST special plug

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc

Applications: infrared night vision equipment, portable test equipment
