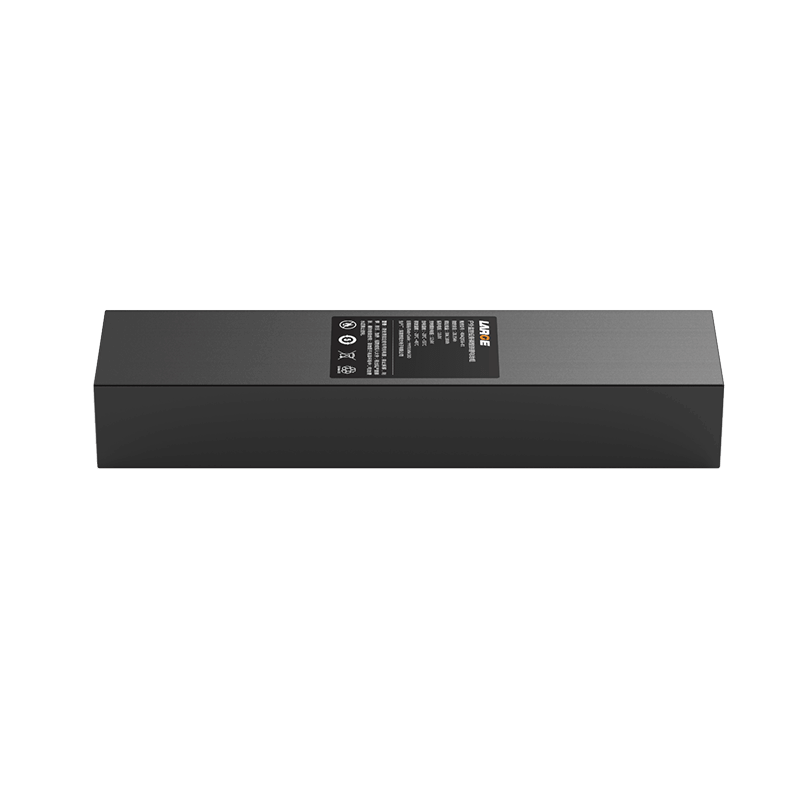

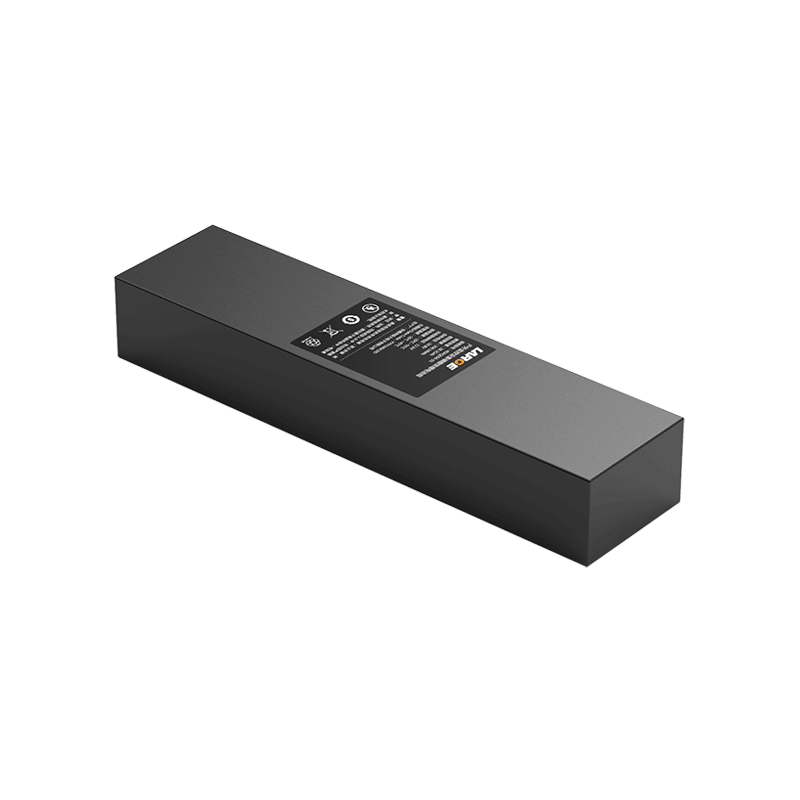

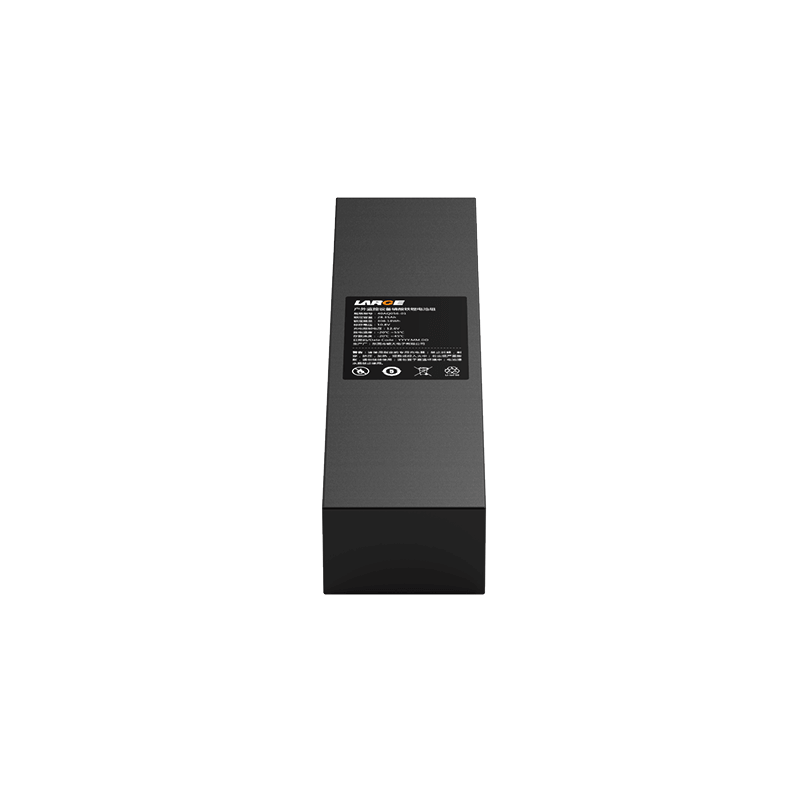

18650 36V 40.8Ah Intelligent Robot Lithium-ion Battery

Product number: 06DQ063-01

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-10S12P-40.8Ah-36V

Product size: 471*114*71mm (Max)

Nominal voltage: 36V

Nominal capacity: 40.8Ah

Internal resistance of finished product: ≤100mΩ

Charging voltage: 42V

Charging current: ≤20A

Discharge current: ≤20A

Discharge cut-off voltage: 27V

Battery weight: 7000g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ℃

Battery package: Blue PVC heat shrink film

Communication protocol: RS485 communication

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Application: Robot, intelligent robot, AGV
