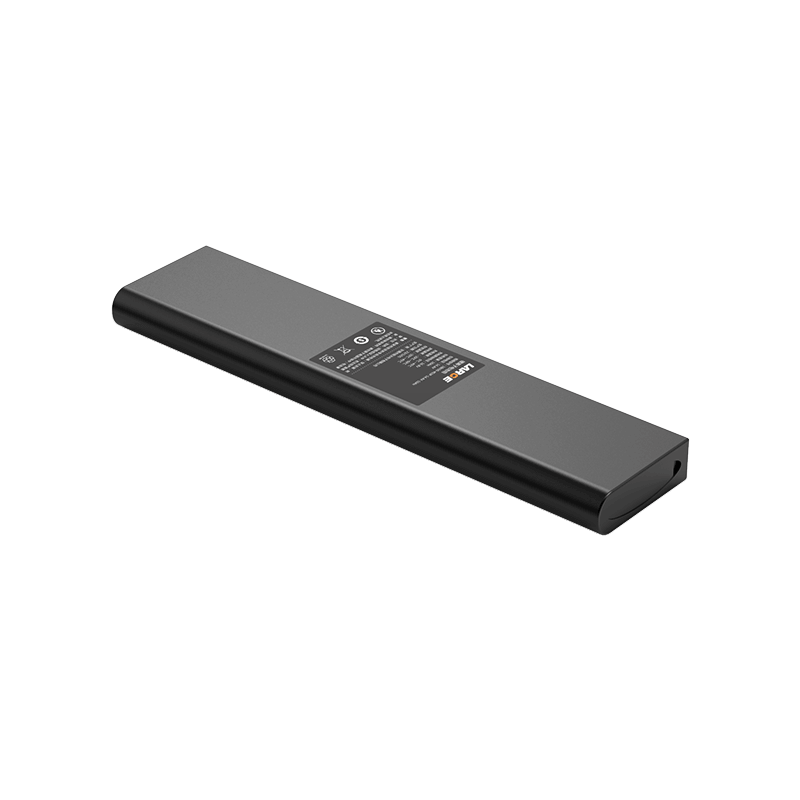

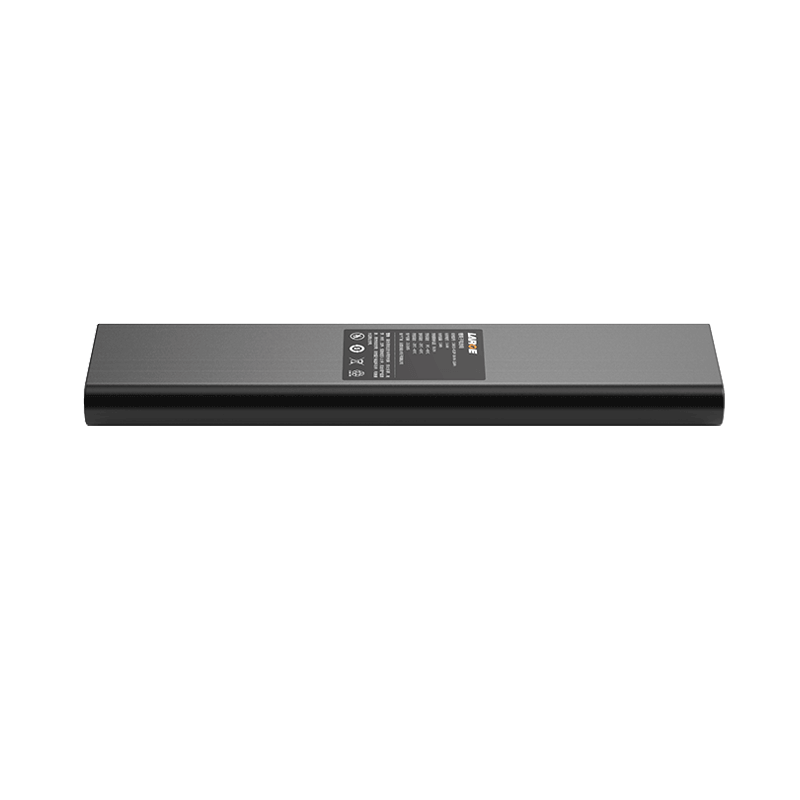

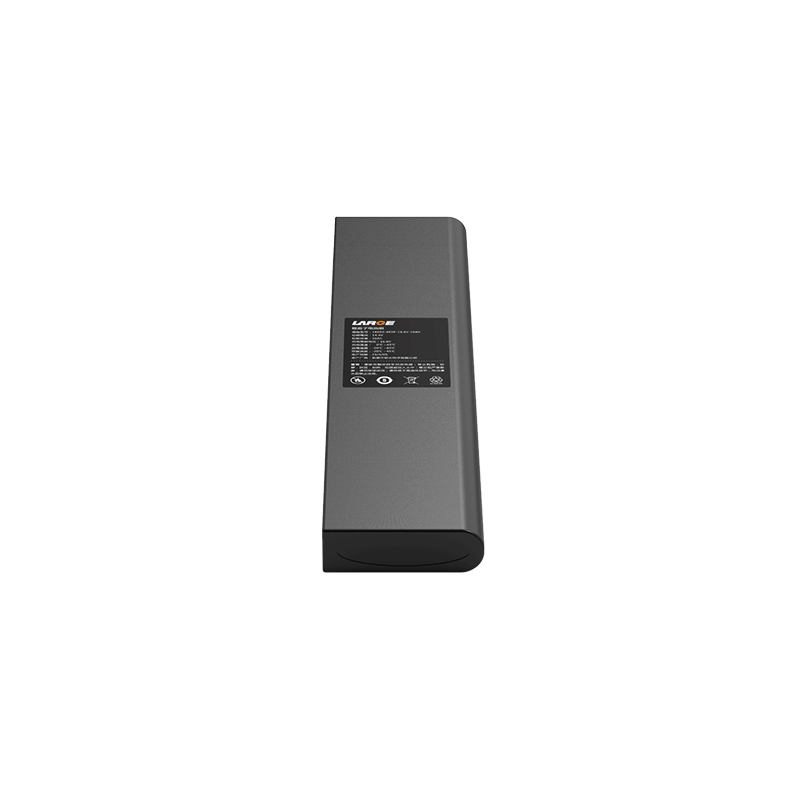

18650 14.4V 10Ah Lithium-ion Battery Pack

Product number: 40AQ021-01

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-4S3P-14.4V-10Ah

Product size: 264.5*60*19mm

Nominal voltage: 14.4V

Nominal capacity: 10Ah

Charging voltage: 16.8V

Charging current: 5A

Discharge current: 5A

Discharge cut-off voltage: 10V

Finished internal resistance: ≤180mΩ

Battery weight: 650g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery package: PVC heat seal process

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.

Application: Equipment battery

Product Features

1.PVC heat sealing process is simple and reliable, and easy to install

2.I2c protocol

3.Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability;

4.Battery protection management: Use imported well-known brand protection chip with high stability, high precision monitoring and precise control, to maximize the elimination of security risks.

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
