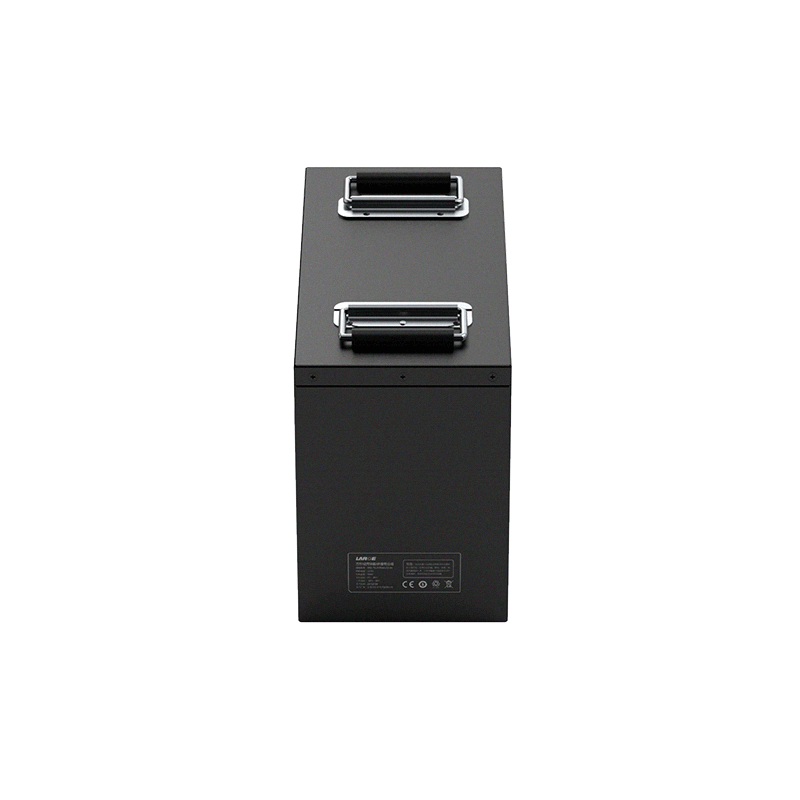

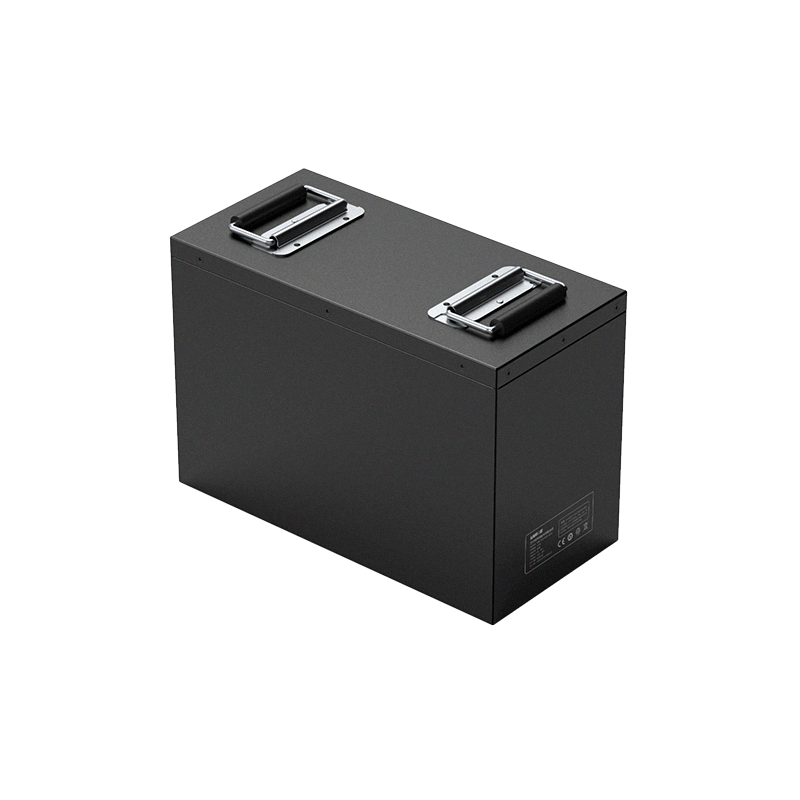

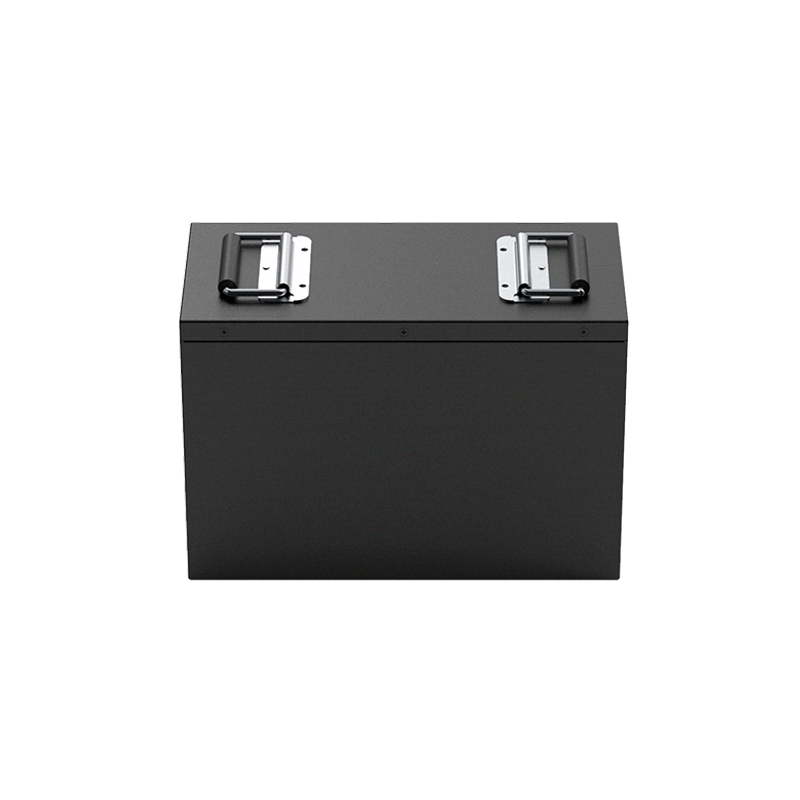

22.4V 50.0Ah Square Aluminum Shell Lithium Iron Phosphate Battery Pack for Surgical Robot

Product number: 01WQ0069-01

Cell model: IF50/50Ah/3.2V

Battery specifications: IF50-7S1P/50Ah/22.4V

Nominal voltage: 12.8V

Nominal capacity: 50Ah

Rated capacity: 50Ah

Charging voltage: 25.5V

Charging current: ≤50.0A

Discharge current: 60.0A

Instantaneous discharge current: 160.0A

Discharge cut-off voltage: 20.0V

Internal resistance of finished product: ≤100mΩ

Battery weight: ≤12KG

Communication protocol: CAN (Baud rate: 500K)

Product size: 170*240*350mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 25℃

Battery case: sheet metal case

Intelligent lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, charge and discharge over temperature protection, power calculation, etc.

Application: surgical robot, medical equipment
