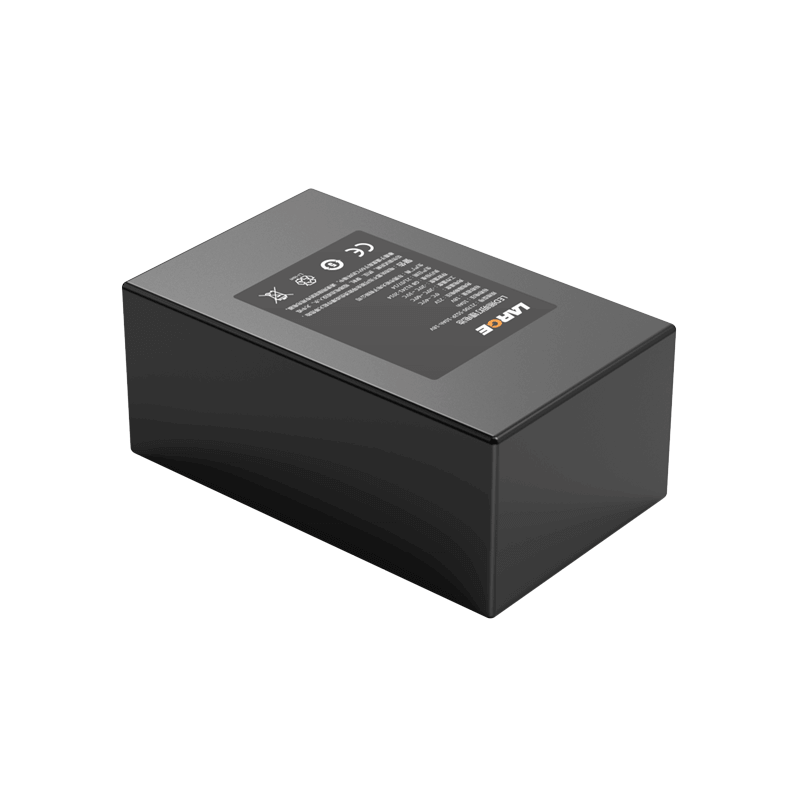

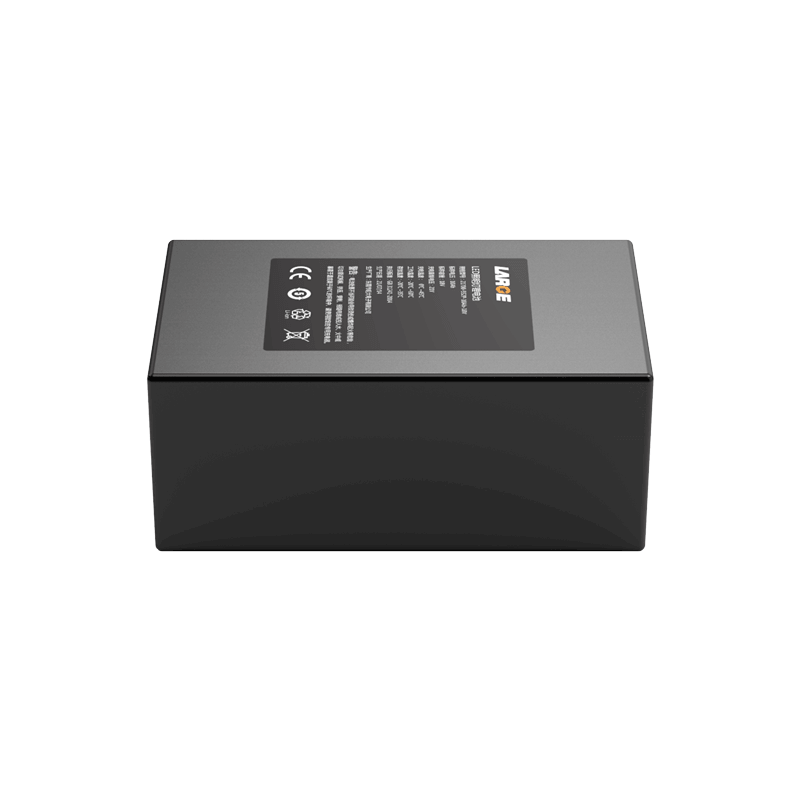

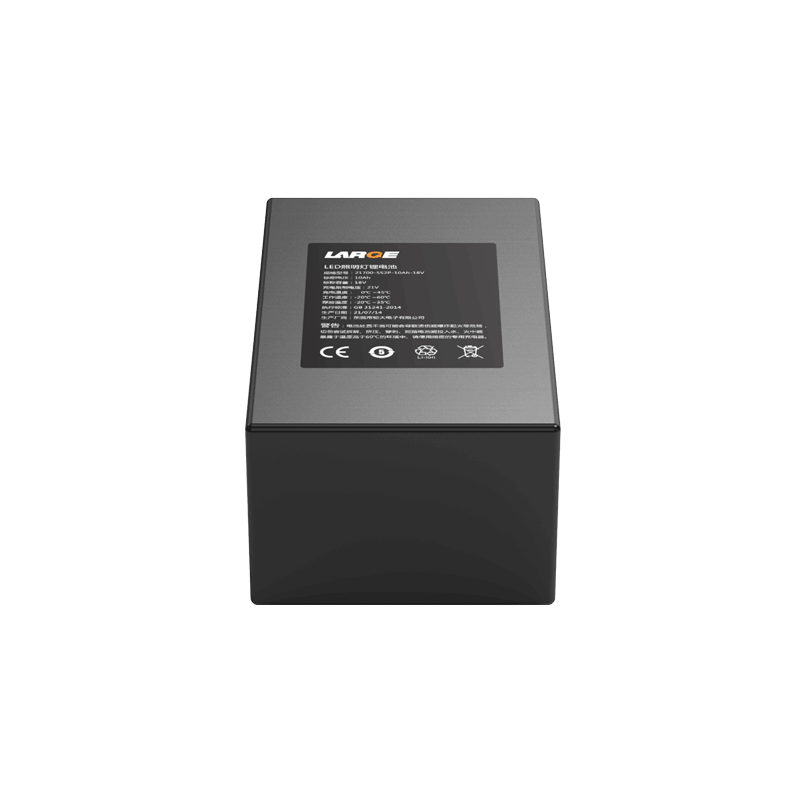

21700 18V 10Ah Lishen Battery for LED

Product number: 04BQ118-30

Cell model: 21700-5000MAH-3.6V

Battery specification: 21700-5S2P-10AH-18V

Product size: 740*32*32mm (Max)

Nominal voltage: 18V

Nominal capacity: 10Ah

Product internal resistance: ≤200mΩ

Charging voltage: 21V

Charging current: ≤5A

Discharge current: ≤5A

Discharge cut-off voltage: 14V

Battery weight: 750G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 35 ° C

Battery package: blue PVC heat shrinkable film package

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: LED lighting equipment, high power lighting equipment

Product features

1.Protective blue PVC heat shrinkable film package is simple, reliable and easy to install.

2.Fix epoxy panels around so as to facilitate battery assembly.

3.Battery protection management: Adopt imported Ricoh protection chip with high stability, high precision monitoring and precise control to eliminate potential safety hazards to the maximum.

4.The battery pack is safe, has good discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
