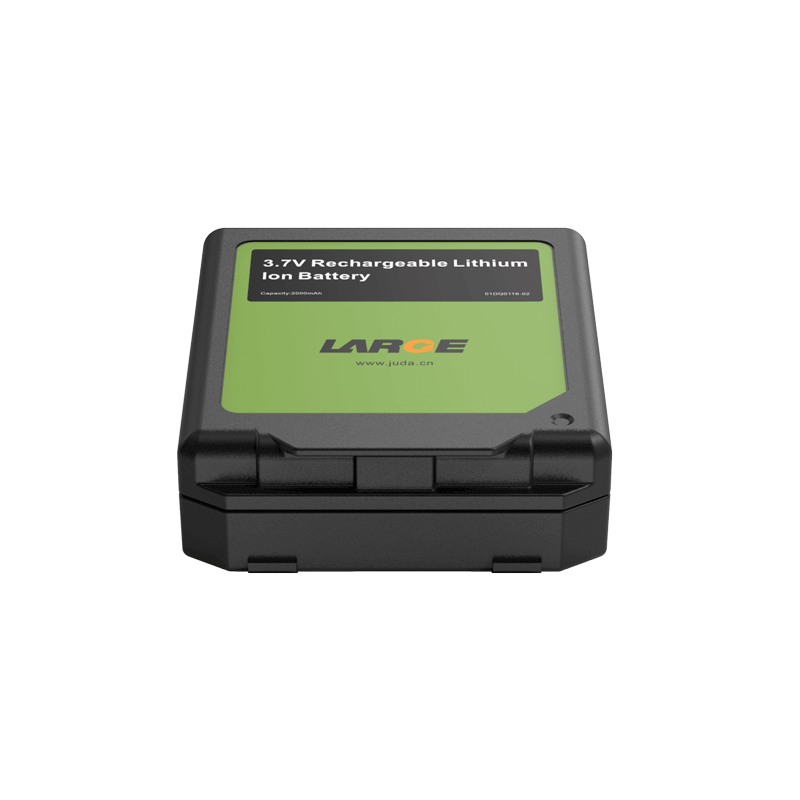

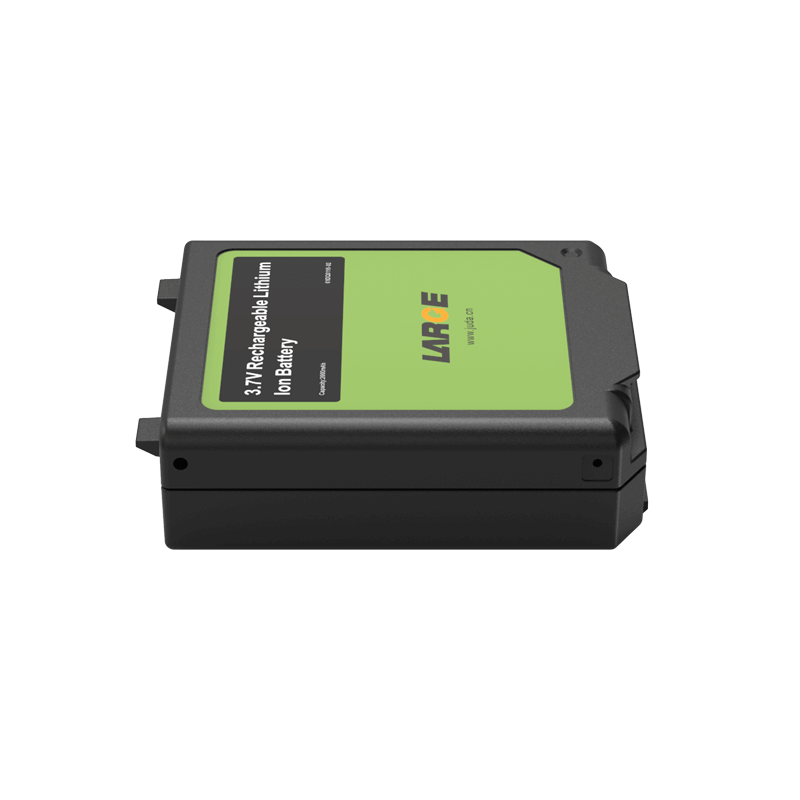

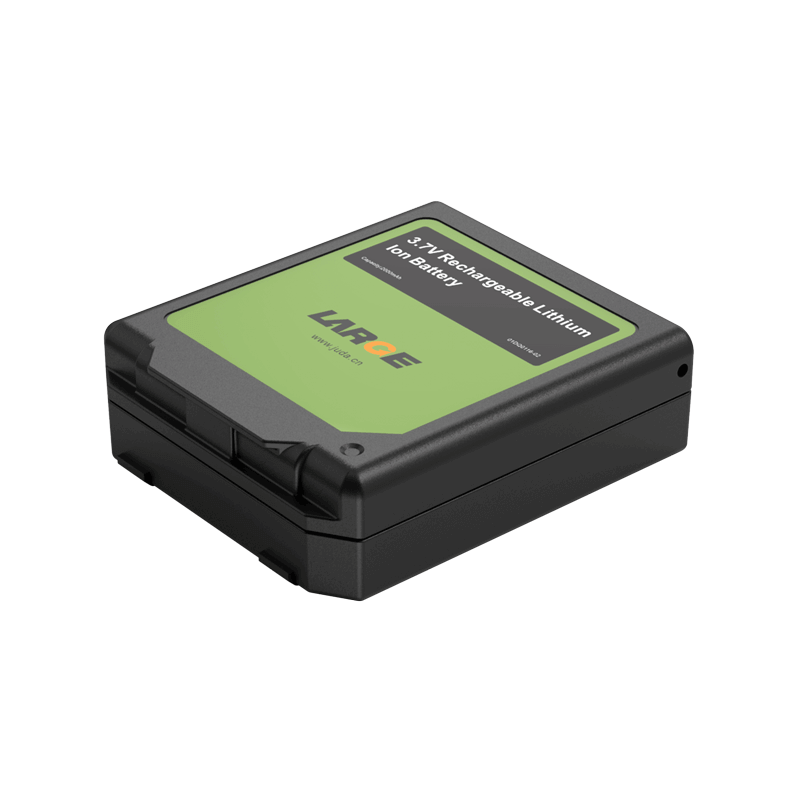

3.6V 2000mAh Panosonic Battery for Handheld Device

Project number: 01DQ0116-02

Cell model: NCR103443/2000mAh/3.7V- explosion-proof

Battery specification: NCR103443/2000mAh/3.7V- Explosion-proof

Nominal voltage: 3.6V

Nominal capacity: 2000mAh

Charging voltage: 4.2V charging

Charging current: ≤ 2.5A

Discharge current: 2.8A

Instantaneous discharge current: 5.0A

Discharge cut-off voltage: 3.0V

Product internal resistance: ≤180mΩ

Battery weight: 50G

Product size: 14.95*44.15*50.15mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 55℃

Storage temperature: 0 to 25 ° C

Battery case: /

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Handheld terminal
