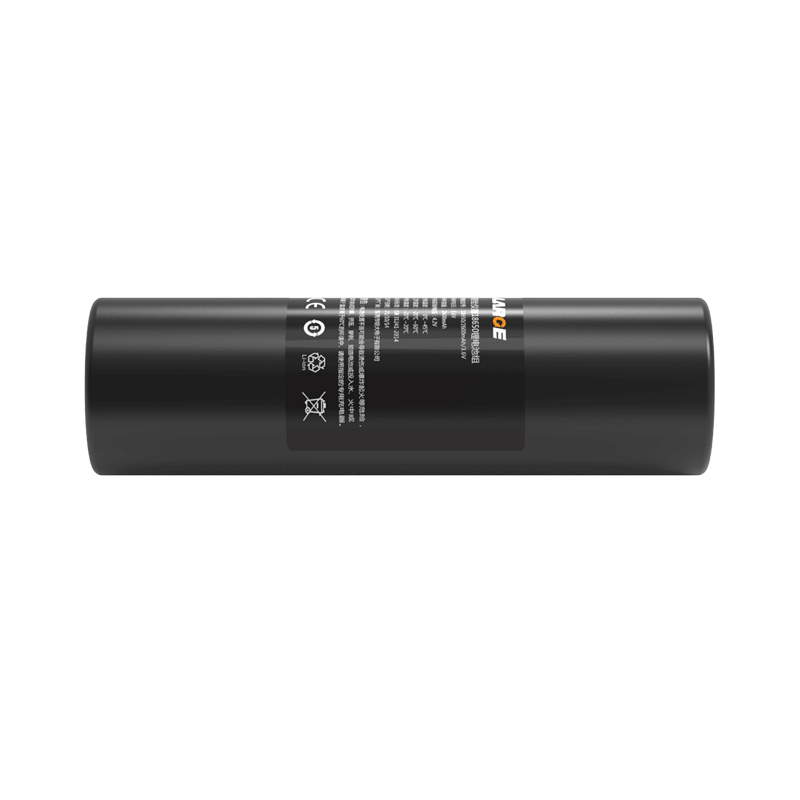

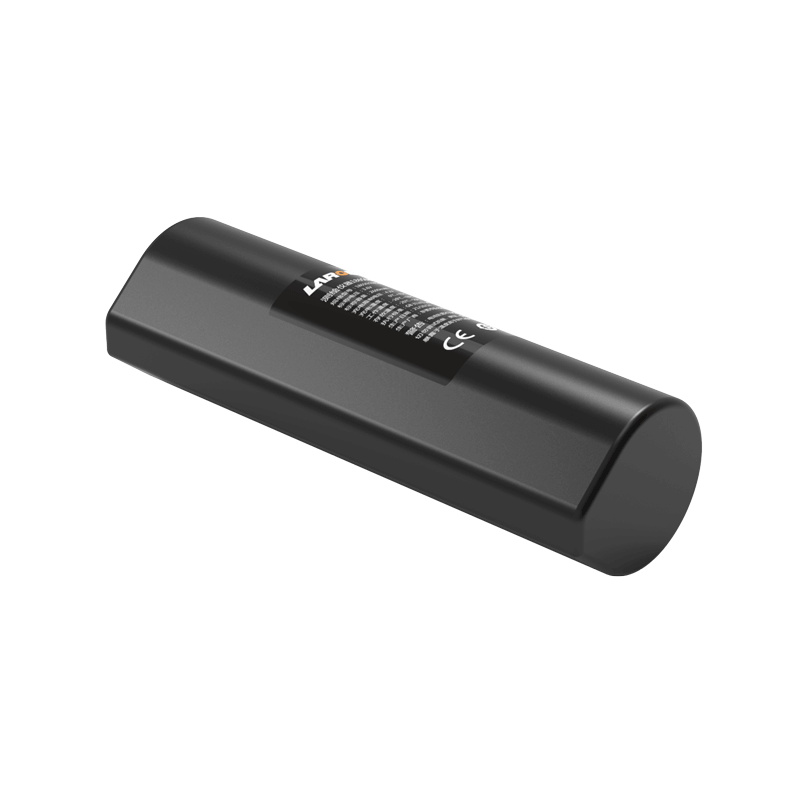

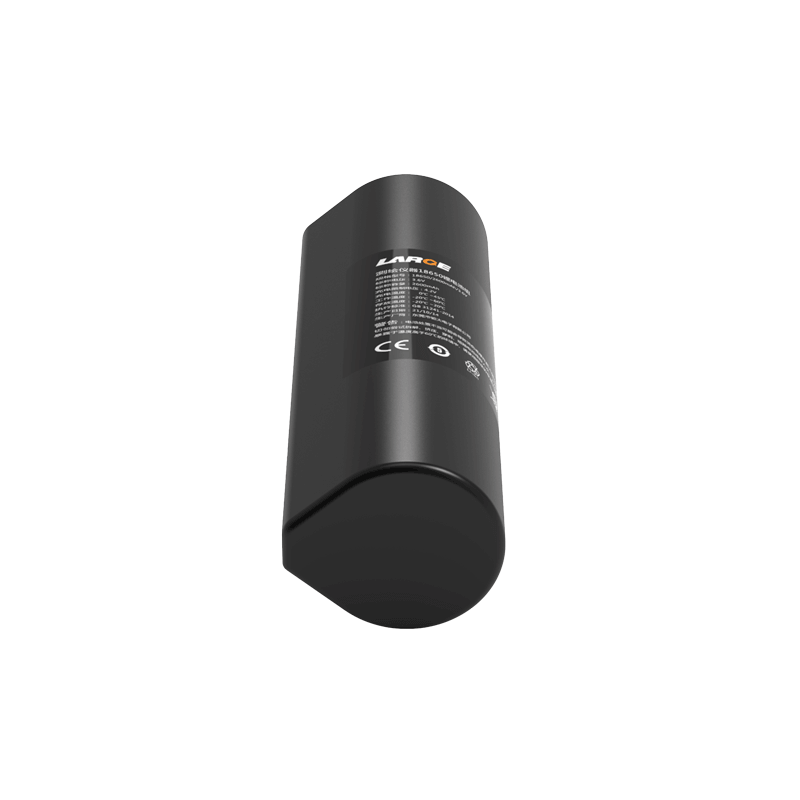

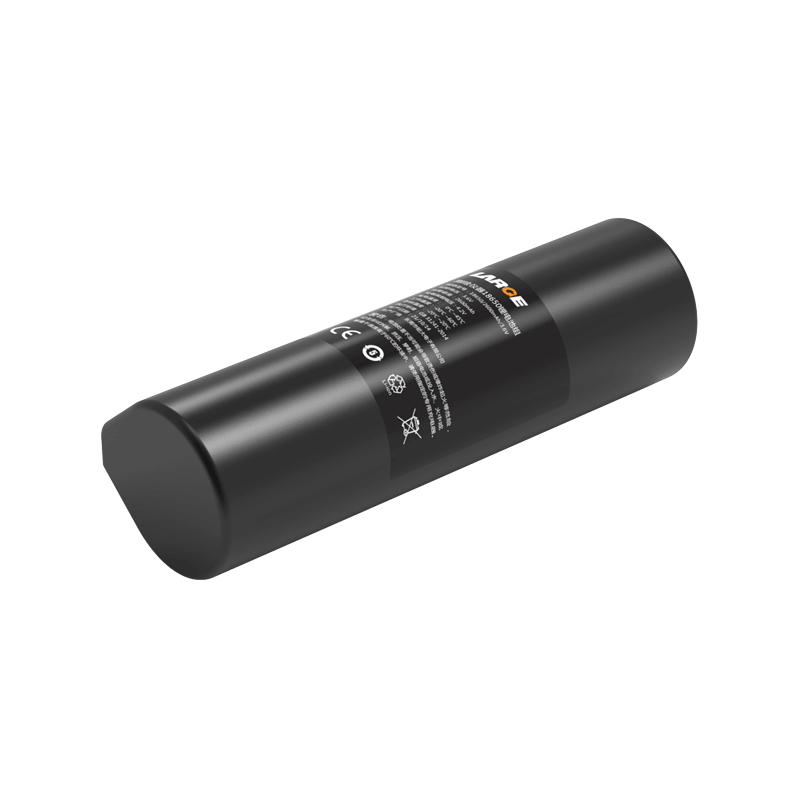

18650 3.6V 2600mAh Lithium-ion Battery for Instrument of Surveying and Mapping

Project number: 05BQ673-41

Cell model: 18650/2600mah /3.6V

Specification: 18650/1S1P/2600mAh/3.6V

Nominal voltage: 3.6V

Nominal capacity: 2600mAh

Charging current: ≤ 1.3A

Discharge current: 2.6A

Instantaneous discharge current: 5A

Discharge cut-off voltage: 2.8V

Finished product internal resistance: ≤150mΩ

Battery weight: 50G

Product size: 22.0*68.0mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ° C to 20 ° C

Battery case: /

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: surveying and mapping instruments
