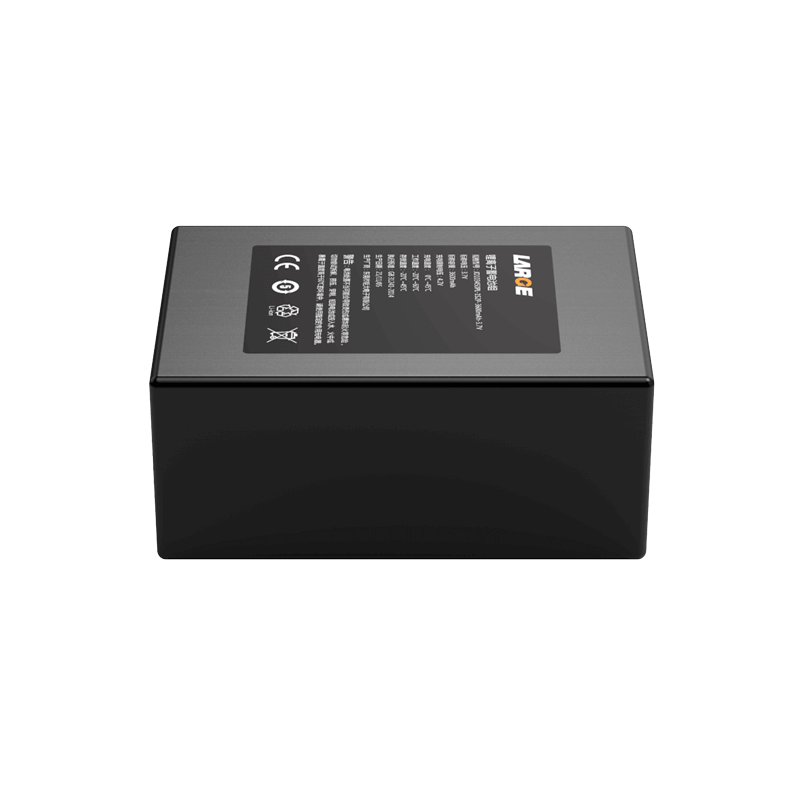

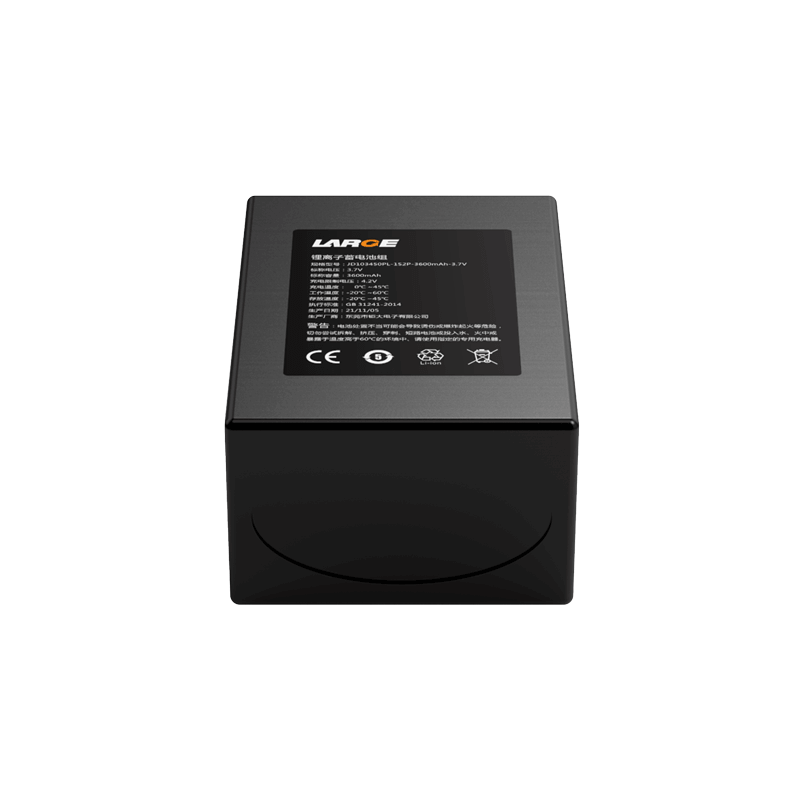

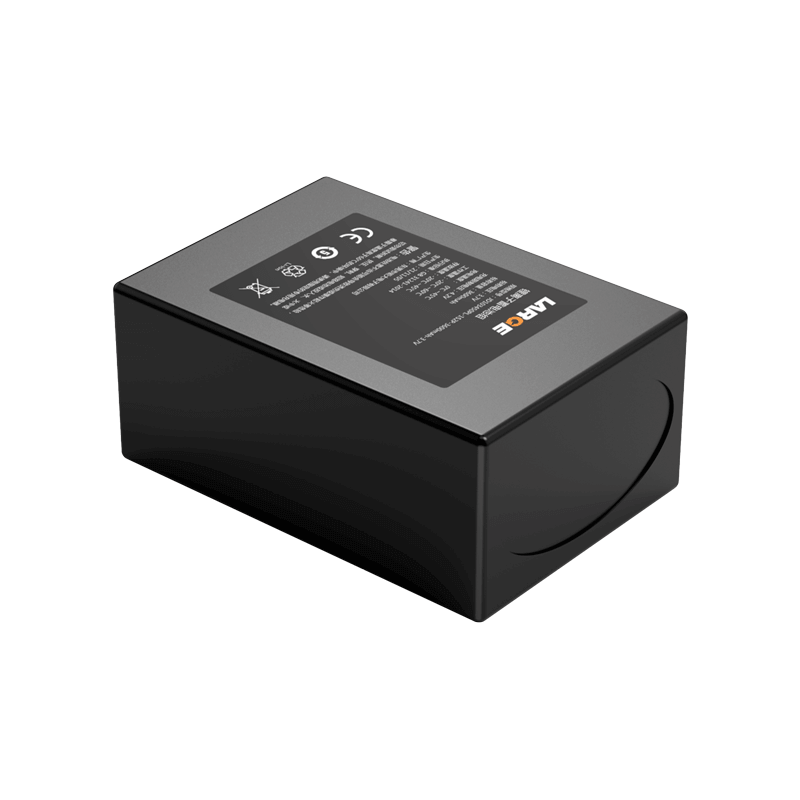

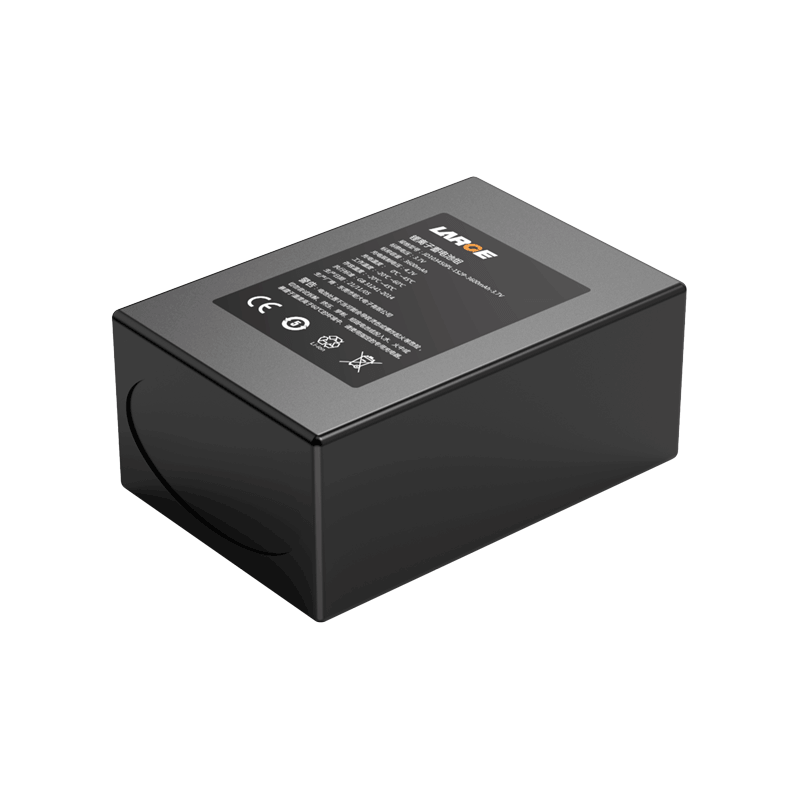

3.7V 3600mAh Lithium Polymer Battery for Instrument

Product number: 36AQ517-06

Cell model: 103450PL-1800MAH-3.7V

Specification: JD103450PL-1S2P-3600MAH-3.7V

Product size: 50*34*22(mm)

Nominal voltage: 3.7V

Nominal capacity: 3600mAh

Charging voltage: 4.2V

Charging current: 1500mA

Discharge current: 1500mA

Discharge cut-off voltage: 3.0V

Product internal resistance: ≤200mΩ

Battery weight: About 75G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to +45 ° C (less than 1 month) -20 to 35 ° C (less than 3 months); 10~+25℃ (less than 12 months)

Battery case: PVC

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Instrument

Product Features

1.PVC process is simple, reliable and easy to install.

2.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

3.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.

4.The battery pack is safe, has good discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
