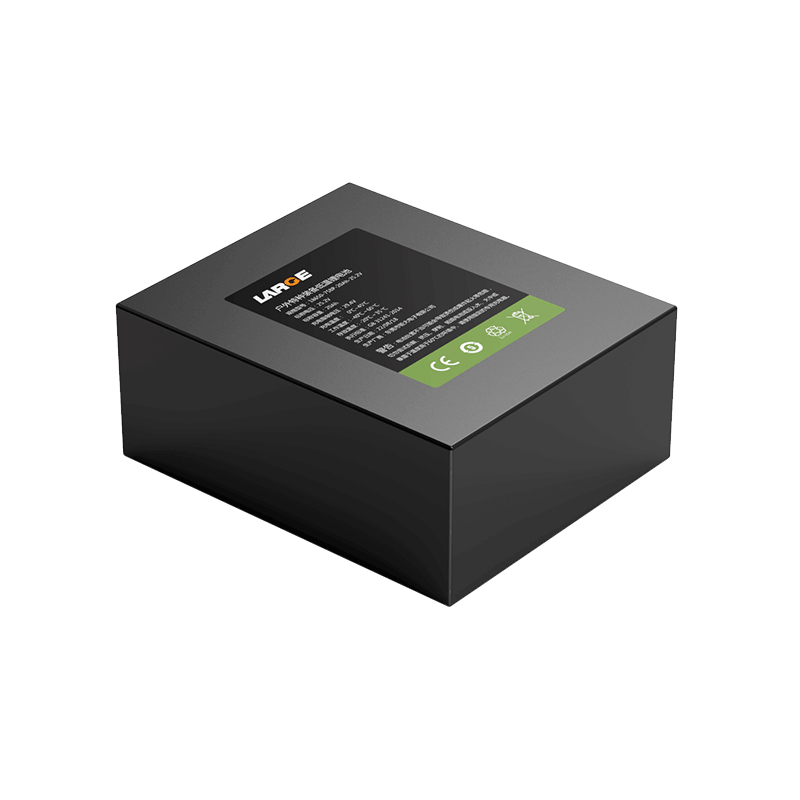

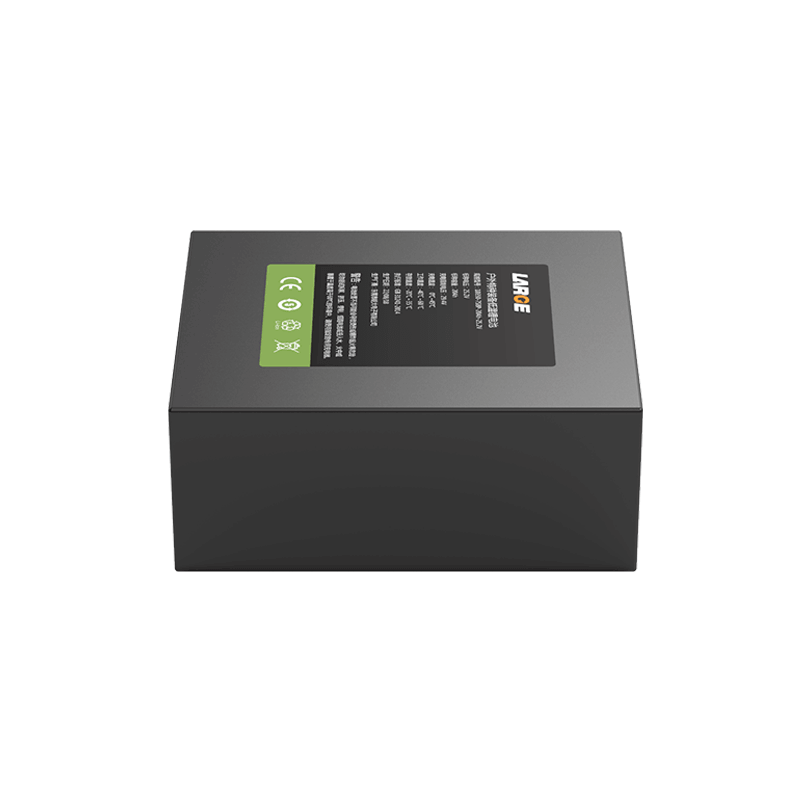

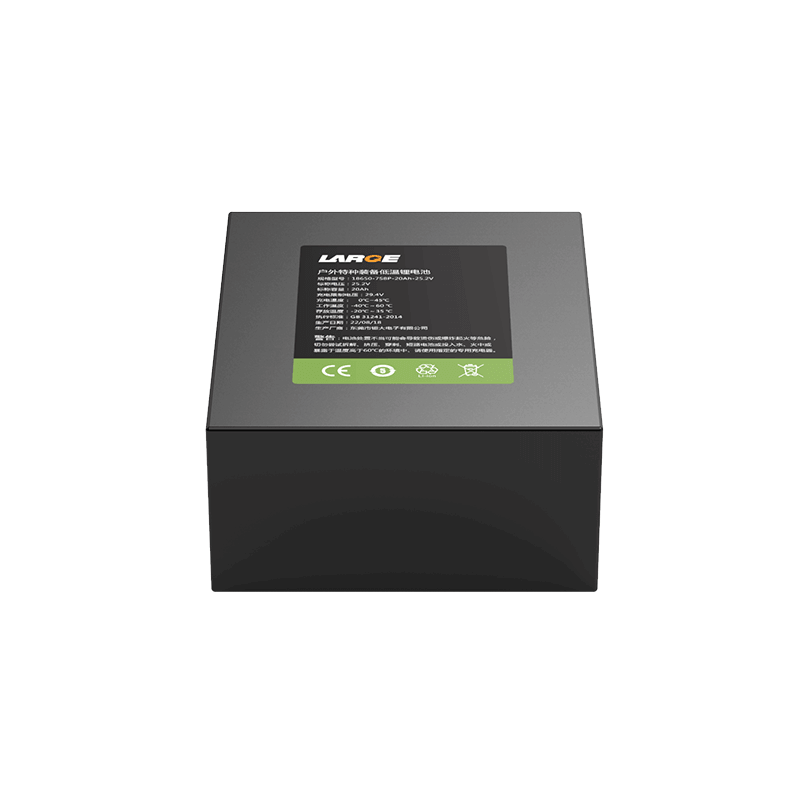

18650 25.2V 20Ah Low Temperature Battery for Outdoor Special Equipment

Product Number: 35AQ905-01

Cell model: 18650-2500mAh-3.6V

Battery specification: 18650-7S8P-20Ah-25.2V

Product size: 176*150*75mm

Nominal voltage: 25.2V

Nominal capacity: 20Ah

Finished internal resistance: ≤200mΩ

Charging voltage: 29.4V

Charging current: ≤10A

Discharge current: ≤20A

Discharge cut-off voltage: 17.5V

Battery weight: 100g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: blue PVC heat shrinkable film

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on

Application: Special operation equipment, outdoor backup power supply, outdoor equipment,industrial equipment

Product Features

1.Blue PVC heat shrinkable film package is simple, reliable and easy to install;

2.The battery uses special cell bracket assembly, epoxy board protection, special nickel piece connection for better shock impact resistant performance;

3. 40 ℃ low temperature - discharge lithium batteries;

4.Battery protection and control: Adopt special lithium battery protection chip with good stability, high precision monitoring, precision control and temperature protection function, so as to eliminate potential safety problems;

5.It has LED power indicator with real-time display of the current power;

6.It has low voltage switch control output with convenient real-time battery control;

7.The battery has nice safety, good discharge performance at low temperature, high low temperature ratio, supports 40 ℃ discharge, and the discharge capacity is 90% or more;

8.The battery has nice safety, good discharge performance and long cycle life.

9.The battery has long cycle life,which accord with low carbon, energy saving, environmental protection value concept;
