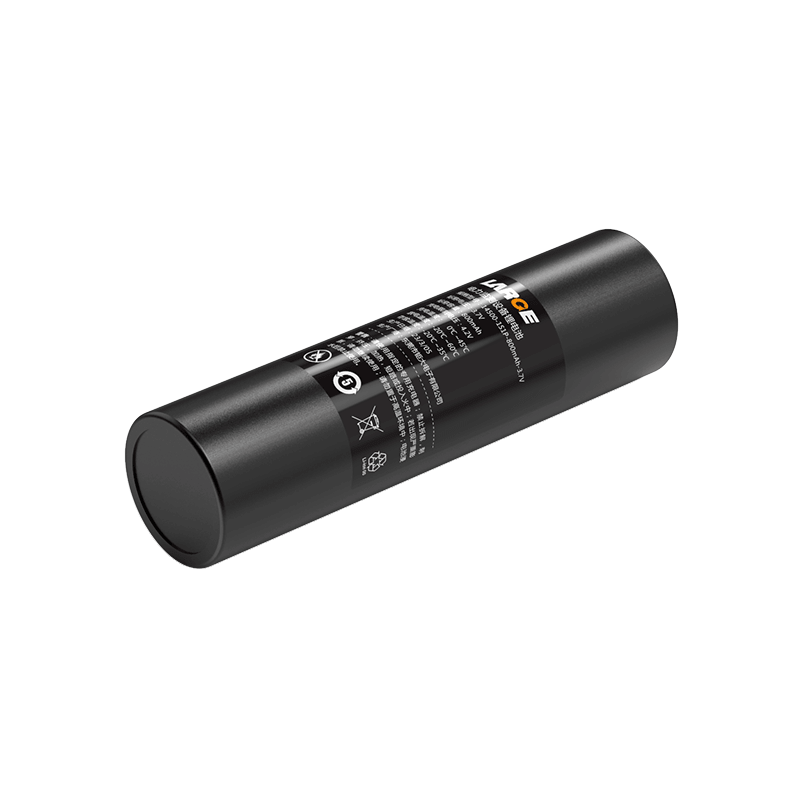

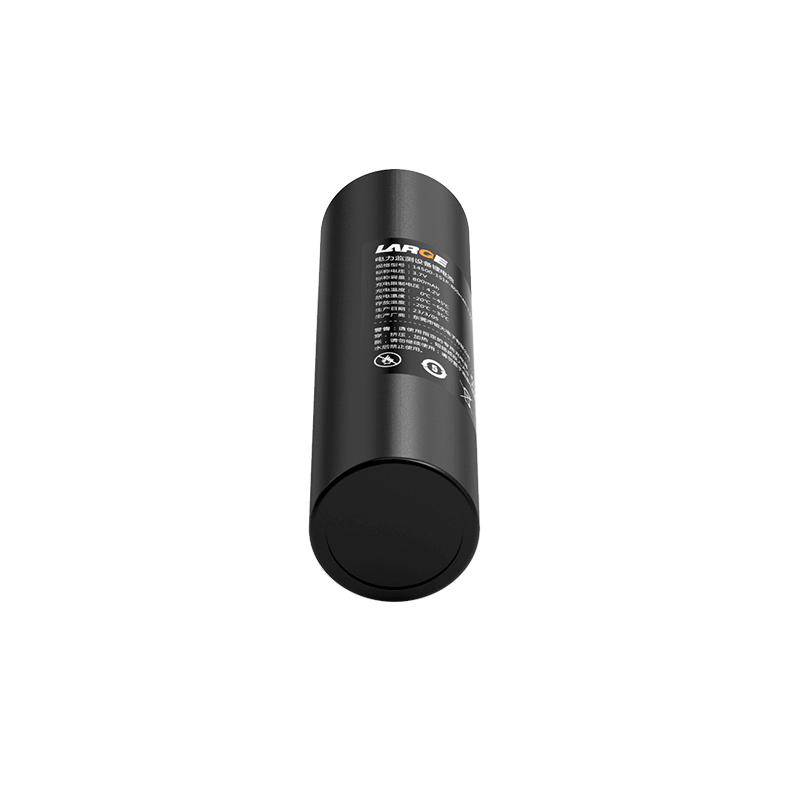

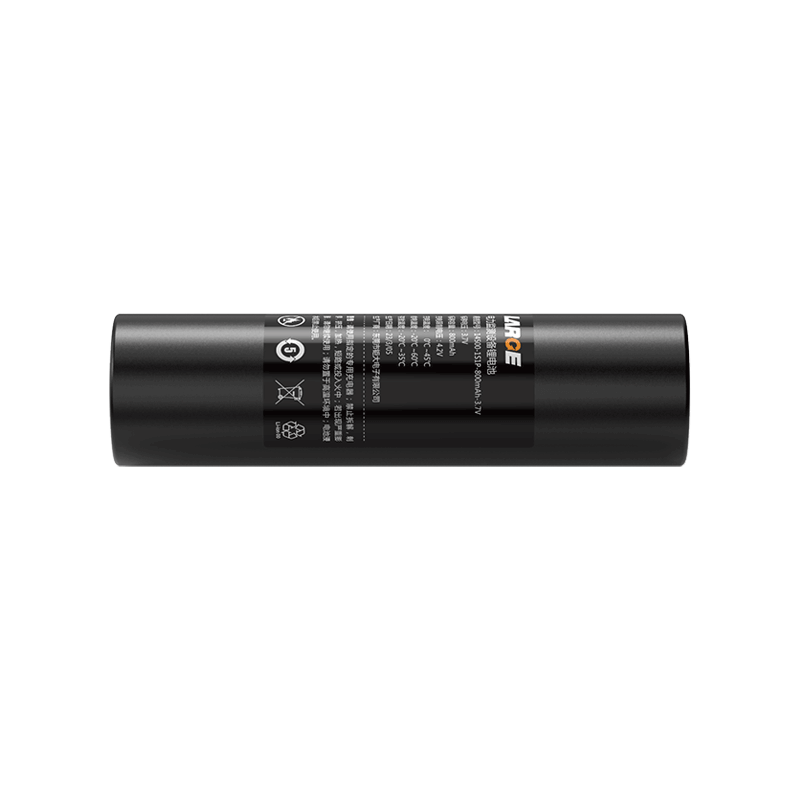

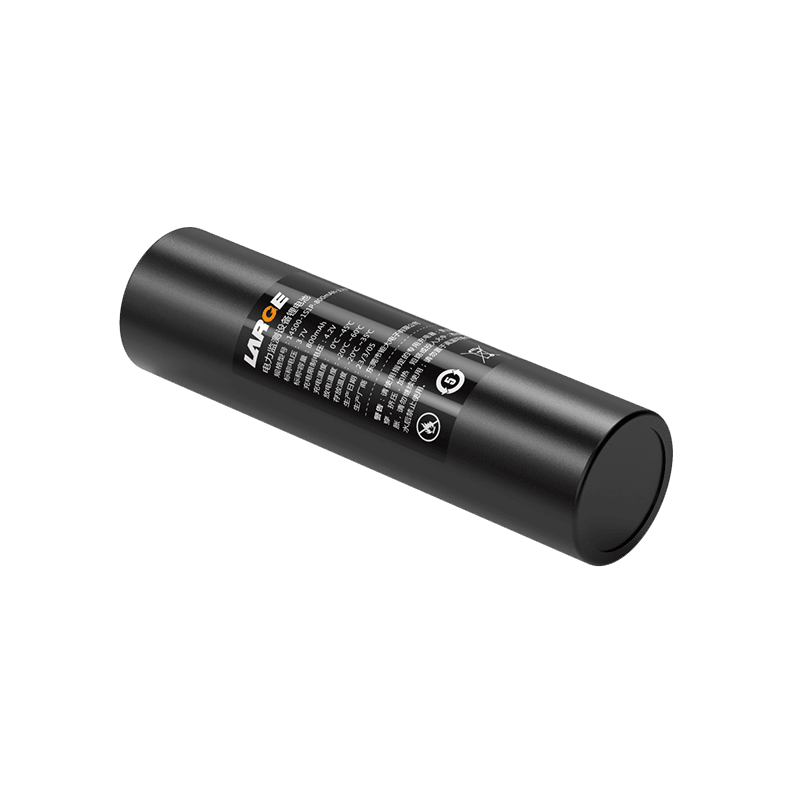

14500 3.7V 800mAh Power Monitoring Equipment Lithium-ion Battery

Product number: 34AQ020-10

Cell model: 14500-800mAh-3.7V

Battery specification: 14500-1S1P-800mAh-3.7V

Product size: 56*φ15mm (Max)

Nominal voltage: 3.7V

Nominal capacity: 800mAh

Charging voltage: 4.2V

Charging current: ≤0.35A

Discharge current: ≤0.7A

Discharge cut-off voltage: 2.8V

Finished internal resistance: ≤180mΩ

Battery weight: 25g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Power testing equipment, testing instruments

Product Features

1.Blue PVC heat shrink film package is simple and reliable and easy to install.

2.Connector plug out terminal: Adopt JST plug output mode to increase conductive reliability;

3.Battery management: Use imported protection chip with high stability, high precision monitoring, accurate control, ESD protection, temperature protection to minimize security risks.

4.The battery pack has nice safety, good discharge performance and long cycle life;

5.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
