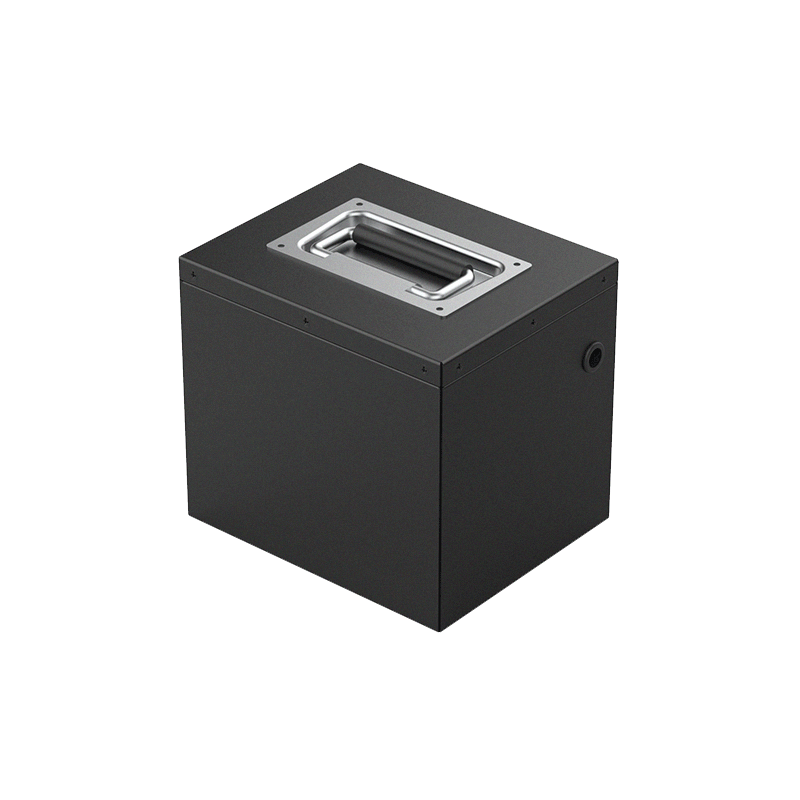

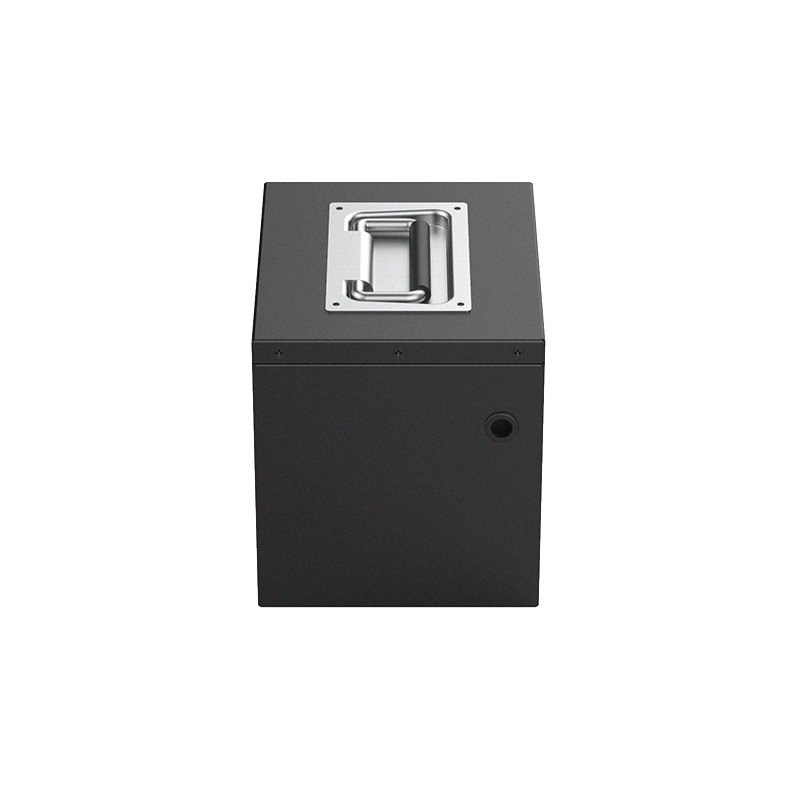

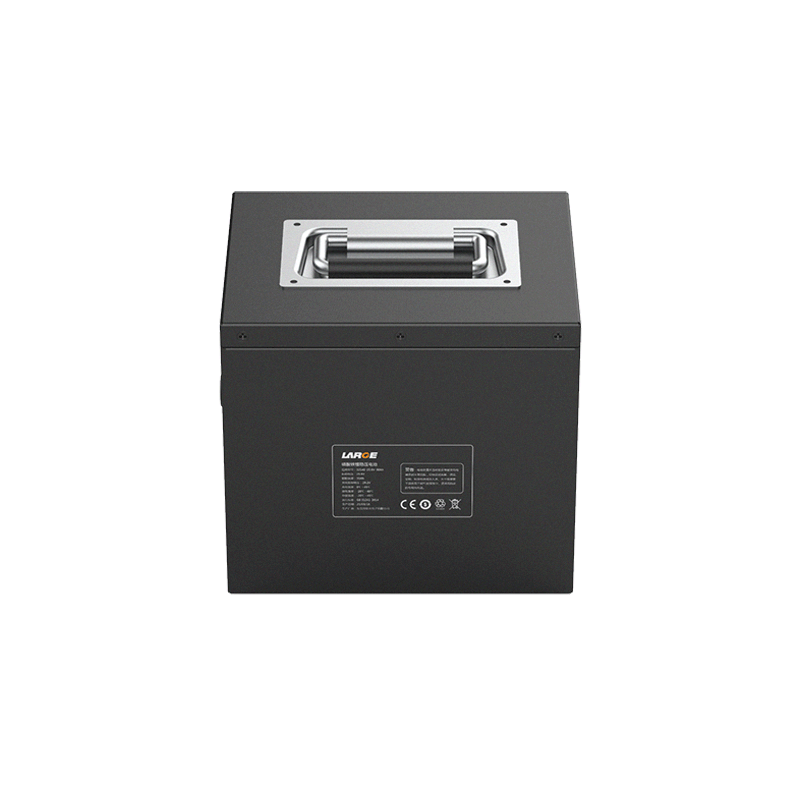

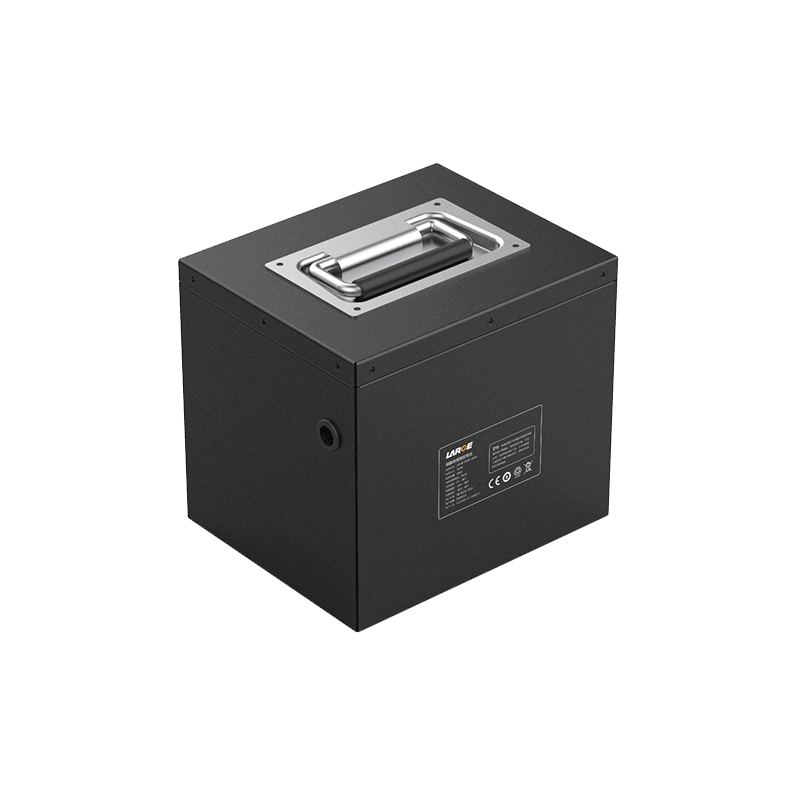

Lithium Iron Phosphate Battery Pack for Mining Robot 32140 25.6V 30Ah

Product number: 40AQ052-02

Battery model: 32140-3.2V-15Ah

Battery specifications: 25.6V-30Ah

Product size: 195mm *160mm *175mm

Nominal voltage: 25.6V

Nominal capacity: 30Ah

Charging voltage: 29.2V

Charging current: 15A

Discharge current: 30A

Discharge cut-off voltage: 20V

Finished internal resistance: ≤180mΩ

Battery weight: ≤7.5Kg

Charging temperature: 0℃~+55℃

Discharge temperature: -20℃~+60℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery package: metal case

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.

Application: Robot battery

Product Features

1.Hardware shell is simple and reliable,and easy to install;

2.RS485 communication protocol

3.Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability;

4.Battery protection management: Use imported well-known brand protection chip with high stability, high precision monitoring, precise control, to maximize the elimination of security risks;

5.The battery pack has nice safety, good discharge performance,and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
