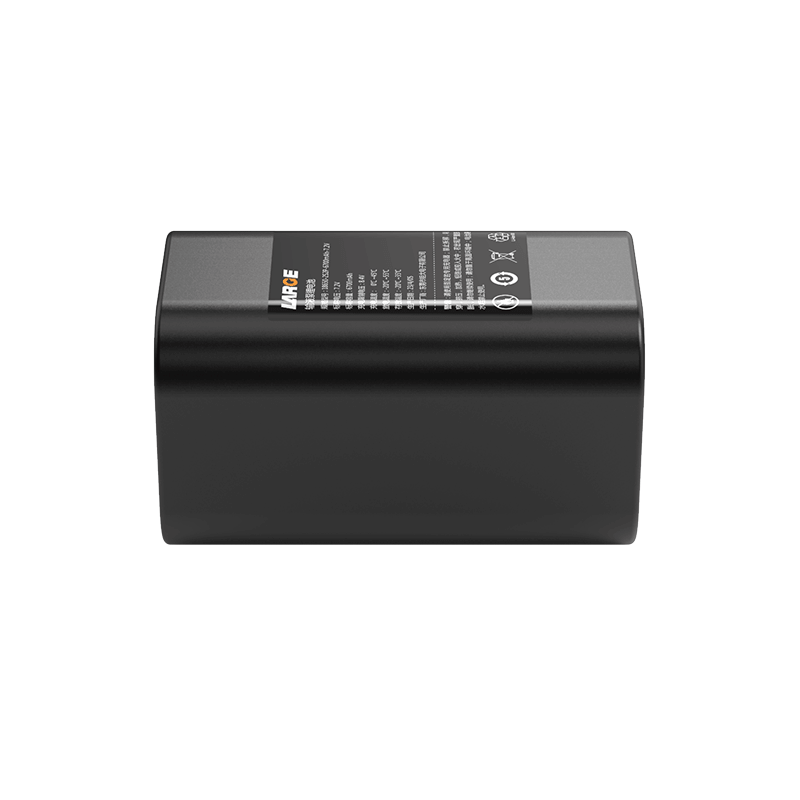

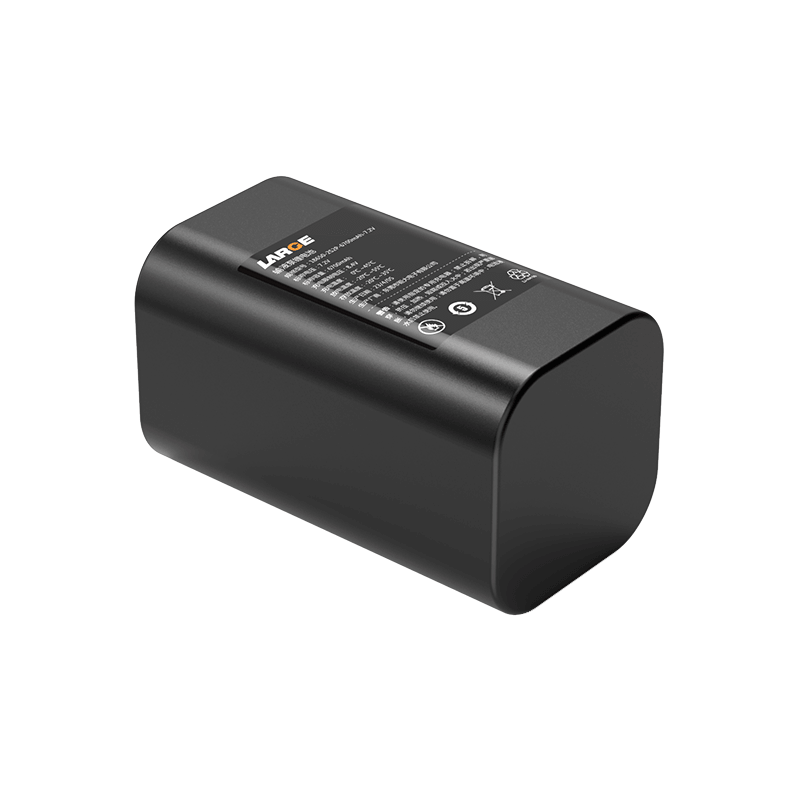

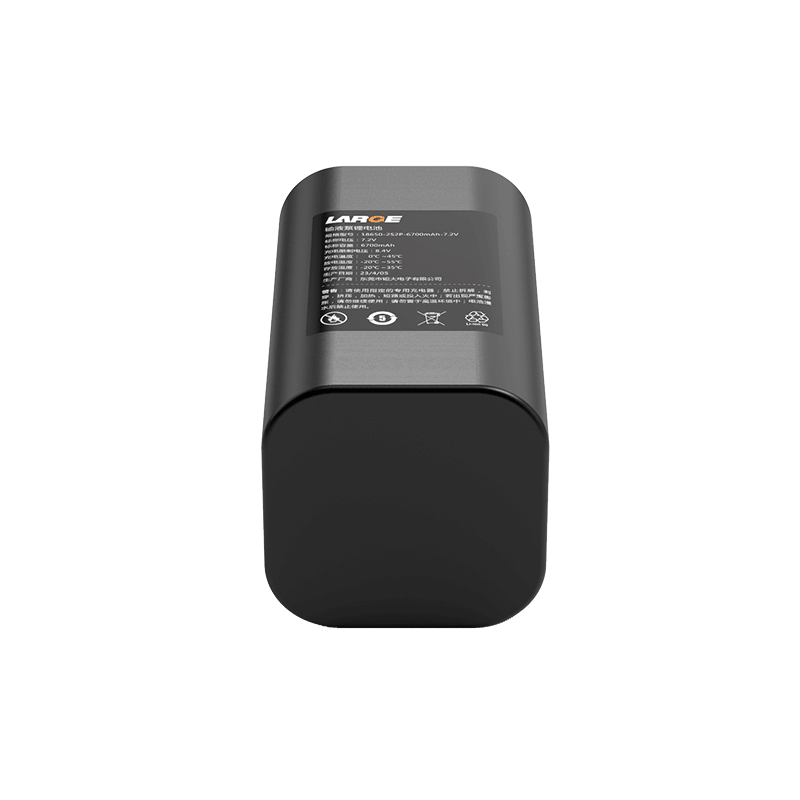

18650 14.4V 3200mAh Vacuum Robot Lithium-ion Battery Pack

Product number: 01DQ0023-65

Battery model: 18650-3200mAh-3.6V

Battery specification: 18650-4S1P-3200mAh-14.4V

Product size: 71.5*38*38mm (Max)

Nominal voltage: 14.4V

Nominal capacity: 3200mAh

Finished product internal resistance: ≤260mΩ

Charging voltage: 16.8V

Charging current: ≤2.0A

Discharge current: ≤4.0A

Discharge cut-off voltage: 10.0V

Battery weight: 200g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Application: sweeping robot, robot

Product Features

1.Blue PVC heat shrink film package is simple and reliable, easy to install;

2.Connector plug output terminal: use MOLEX plug output mode to increase the electrical reliability of the plug;

3.Battery protection management: Use special lithium-ion battery protection chip, with high stability, high precision monitoring, accurate control, temperature protection and other functions,to eliminate safety hazards;

4.The battery pack has nice safety, good discharge performance and long cycle life;

5.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
