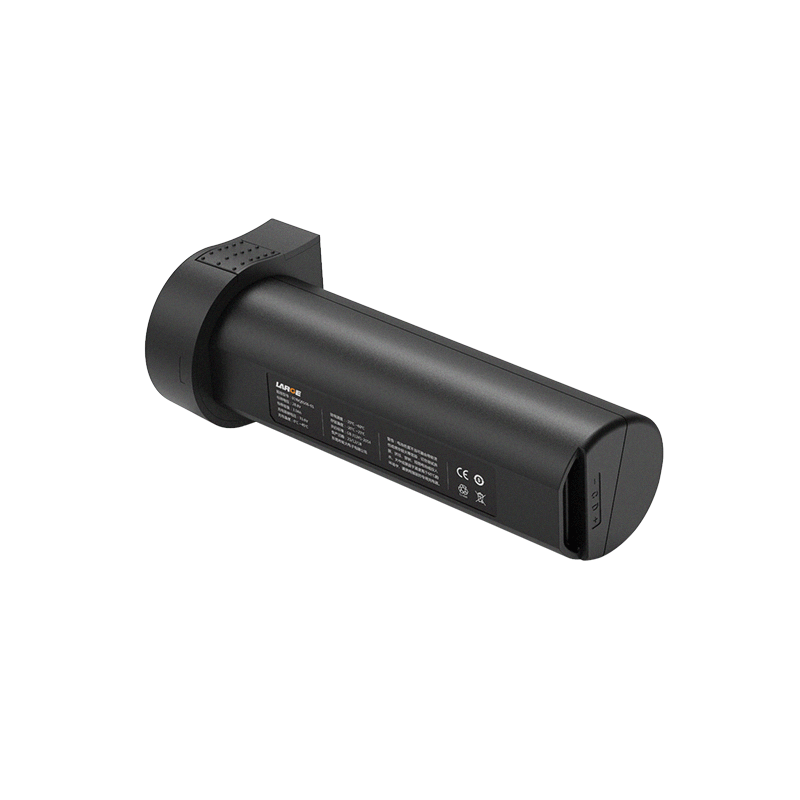

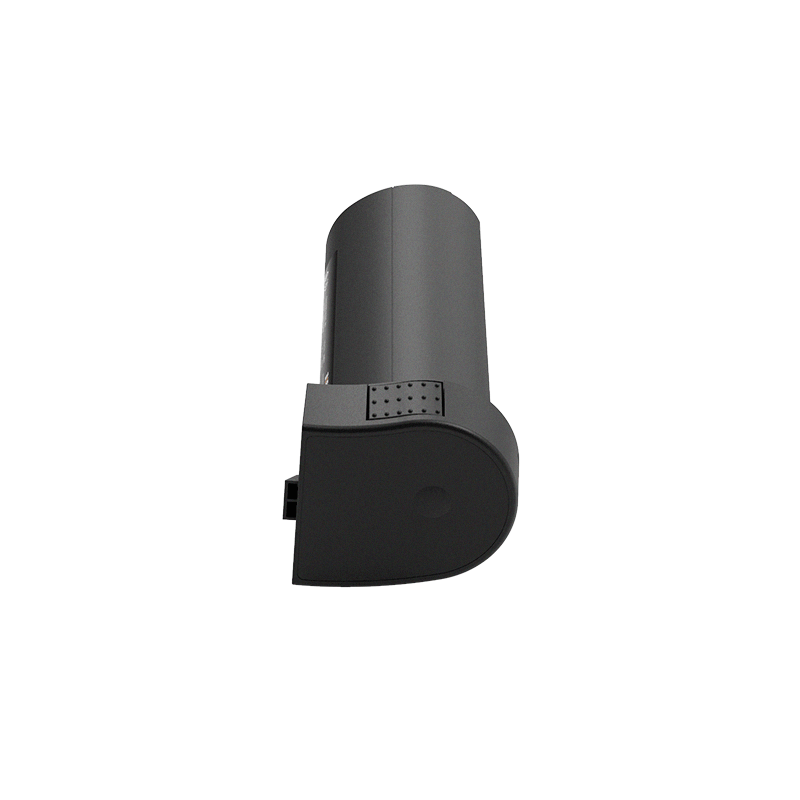

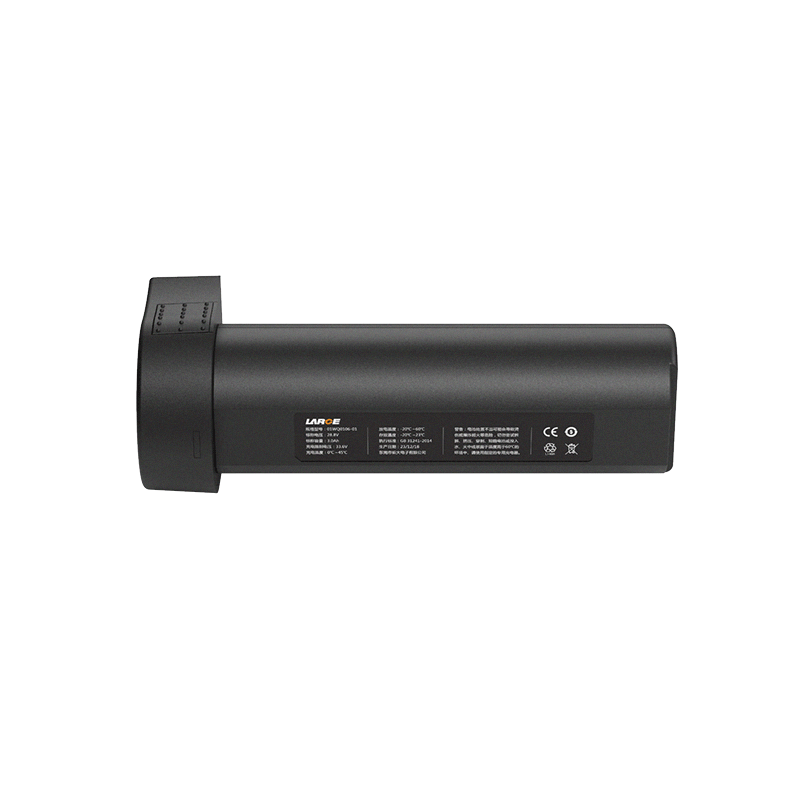

28.8V 3.0Ah Bone Drill 18650 Lithium-ion Battery Pack

Product number: 01WQ0106-01

Batteries models: NCR18650GA6W / 3350 mah / 3.6 V

Battery specification: 18650-8S1P/3.35Ah/28.8V

Nominal voltage: 28.8V

Nominal capacity: 3.0Ah

Charging voltage: 33.6V

Charging current: ≤1.4A

Discharge current: 5.0A

Instantaneous discharge current: 11.0A

Discharge cut-off voltage: 21.6V

Internal resistance of finished product: ≤350mΩ

Battery weight: 550g

Product size: 55.78*50.13*181.0mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23℃

Battery case: ABS+PC

Communication protocol: SMBUS

Intelligent lithium-ion battery protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: bone drill, medical equipment
