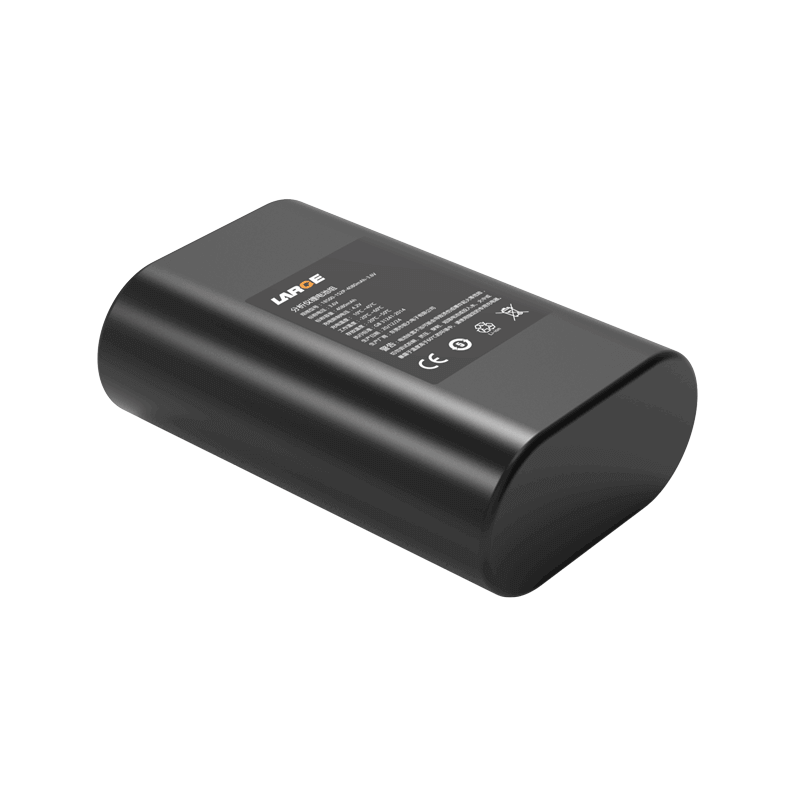

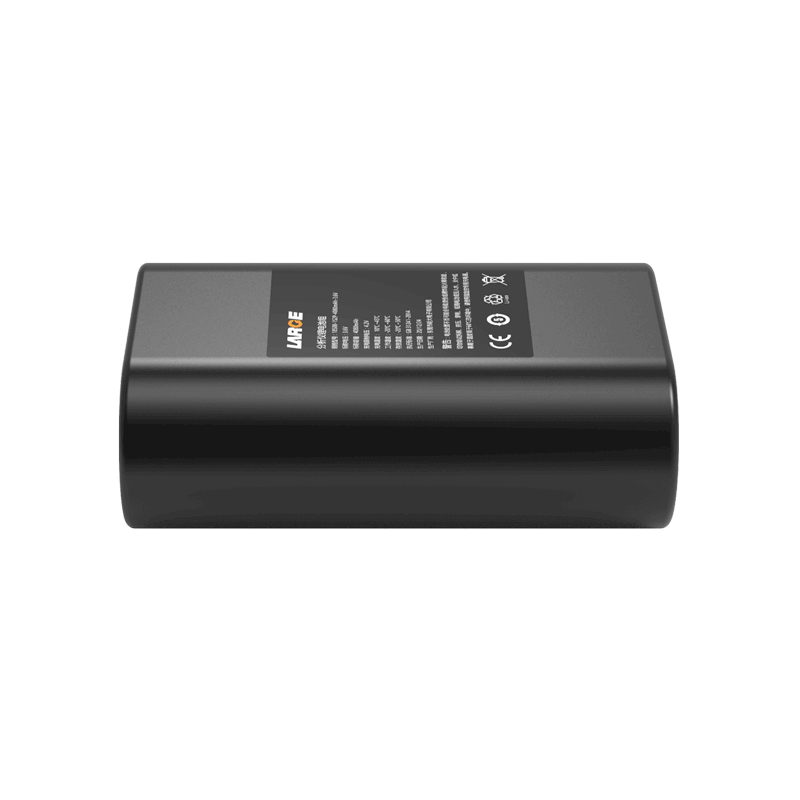

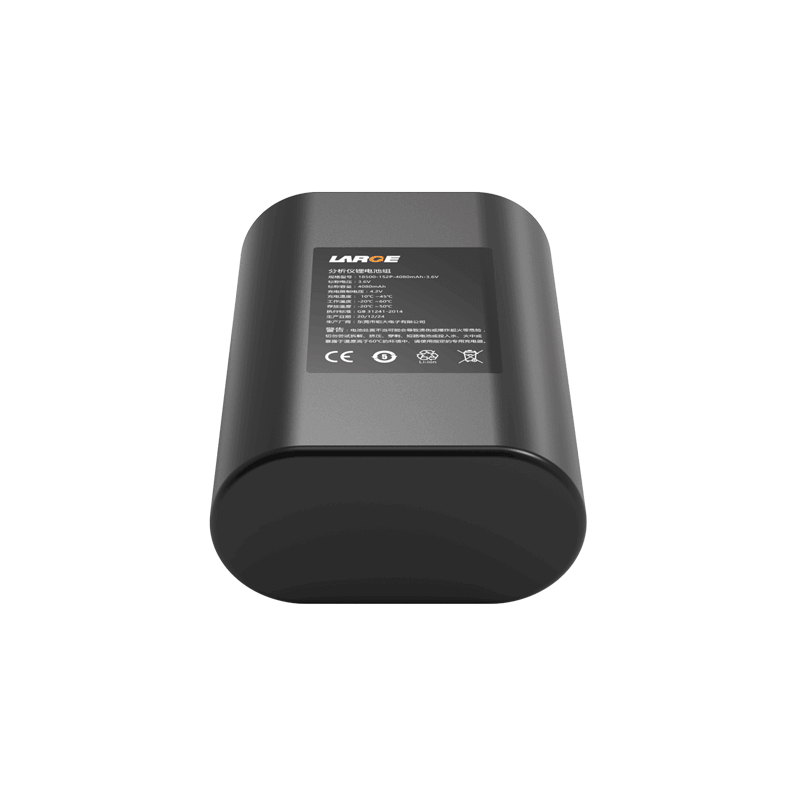

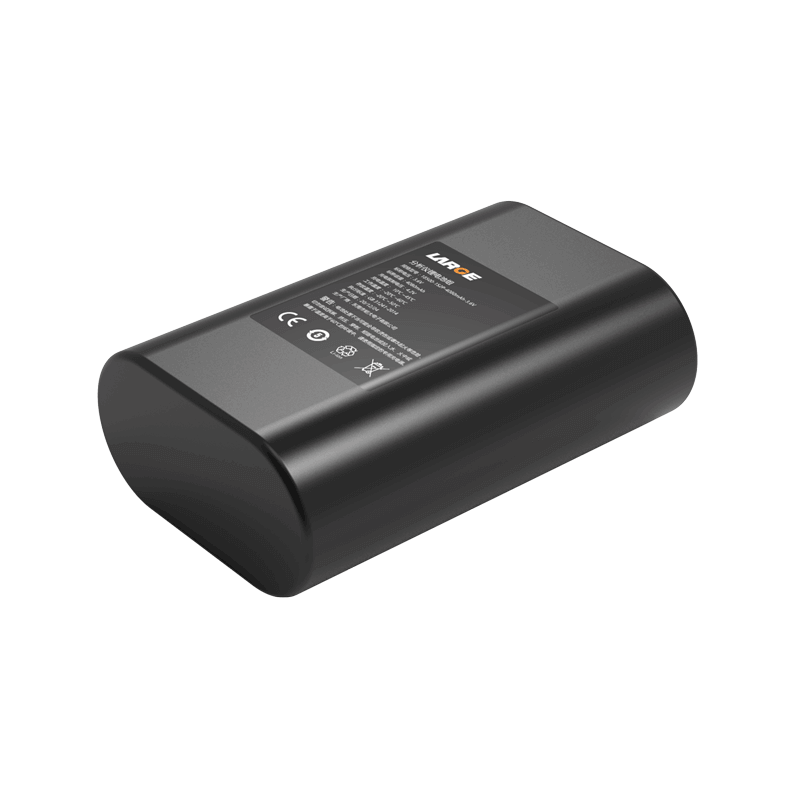

18500 3.6V 4080mAh Panasonic Battery for G6PD-HB Analyzer

Product number: 06DQ010-08

Cell model：18500-2040mAh-3.6V

Battery specification: 18500-1S2P-4080mAh-3.6V

Battery dimension:56*37.5*19mm（Max）

Nominal voltage：3.6V

Nominal capacity：4.08Ah

Charging voltage: 4.2V

Charging current: ≤2.04A

Discharging current: ≤2.04A

End-off voltage: 2.5V

Internal resistance: ≤180mΩ

Battery weight: 110g

Charging temperature：10～45℃

Discharging temperature: -20～60℃

Storage temperature: -20~+50℃（less than one month）-20～45 ℃(less than three months)；-20~+20℃（less than twelve months）

Battery case:PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: G6PD-HB analyzer
