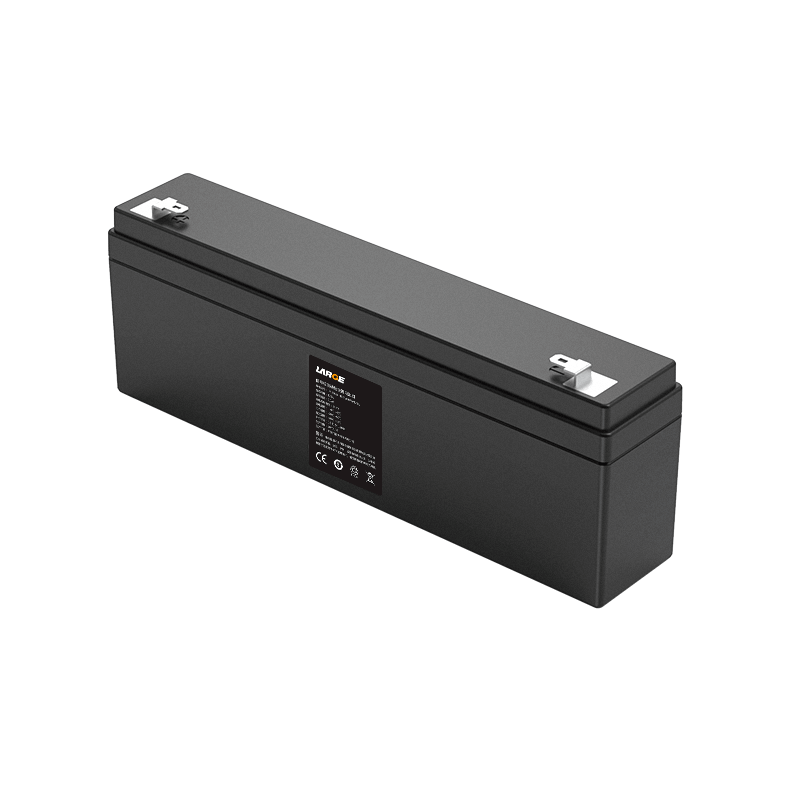

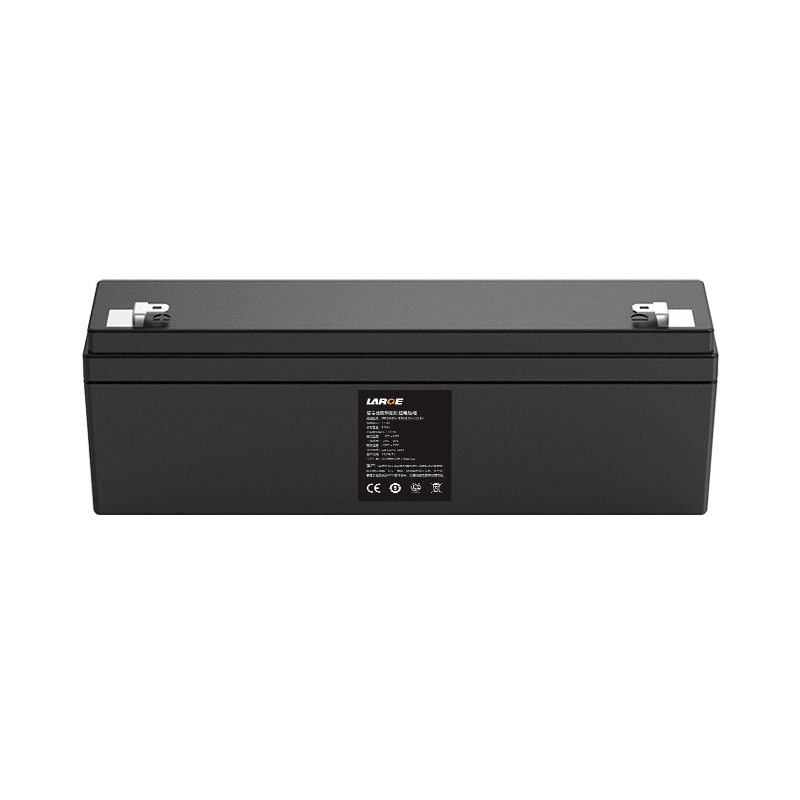

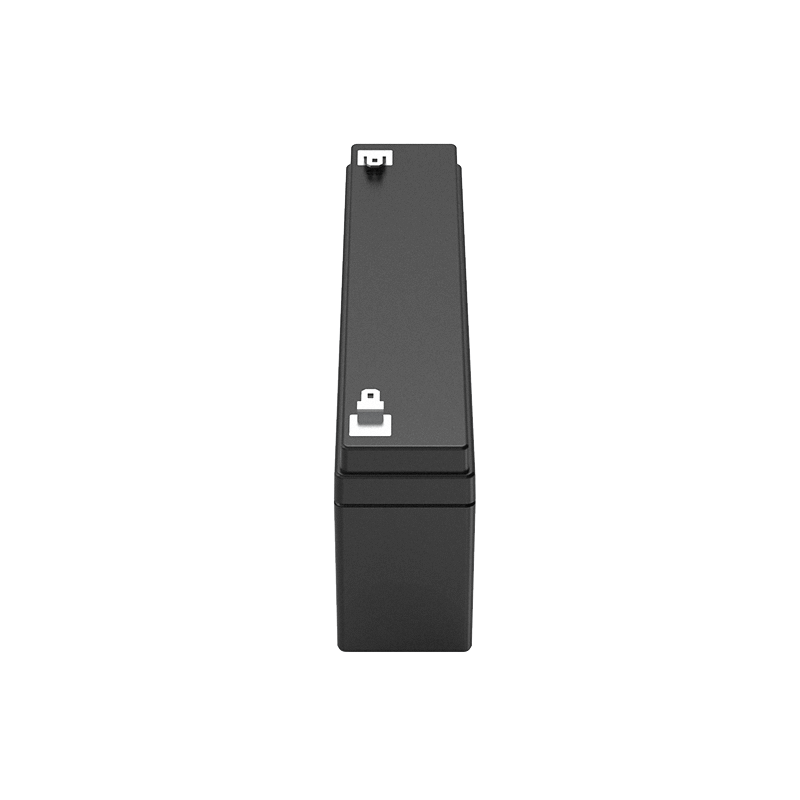

26650 12.8V 8Ah LiFePO4 Battery for Signal Detection

Project number: 01WQ00071-02

Cell model: IFR26650/4000mah /3.2V

Battery specification: IFR26650-4S2P/ 8.0Ah /12.8V

Nominal voltage: 12.8V

Nominal capacity: 8.0Ah

Charging voltage: 14.4V

Charging current: ≤4.0A

Discharge current: 6.0A

Instantaneous discharge current: 8A

Discharge cut-off voltage: 10.0V

Product internal resistance: ≤240mΩ

Battery weight: 1000g

Product size: 94.0*65*151mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 35 ° C

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Signal detection
