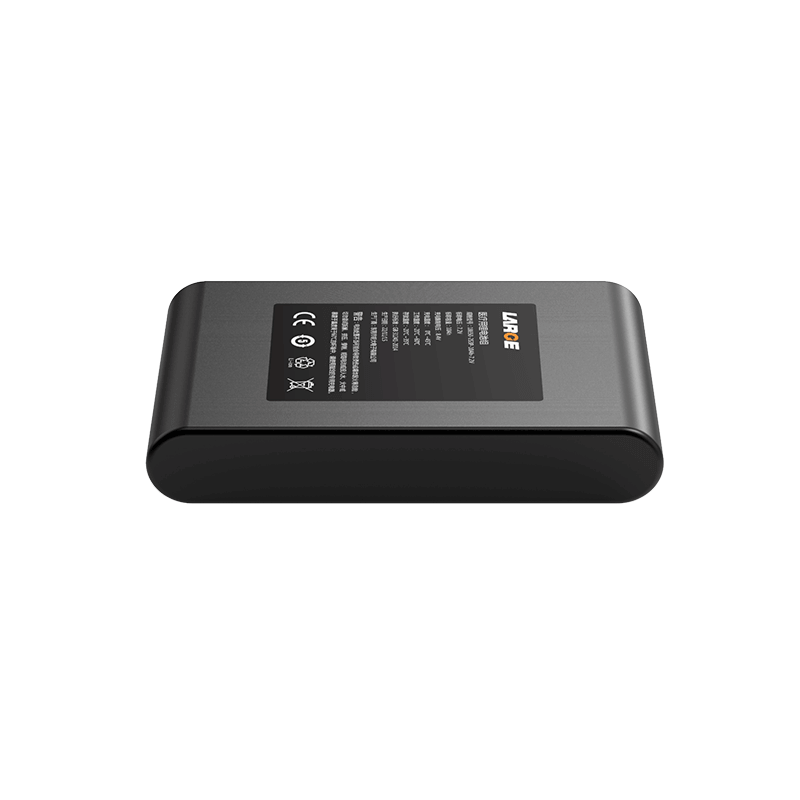

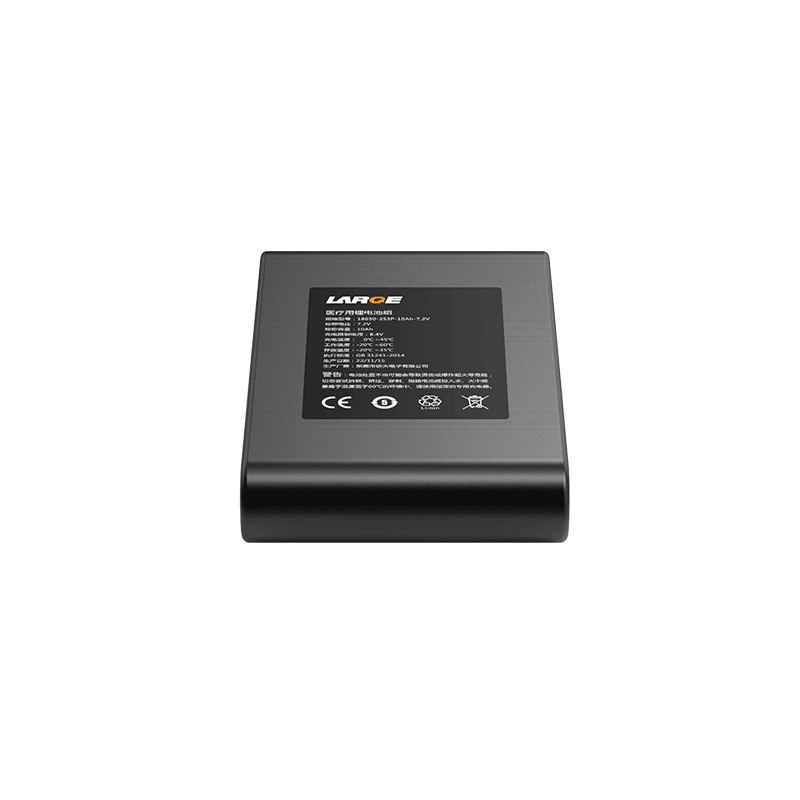

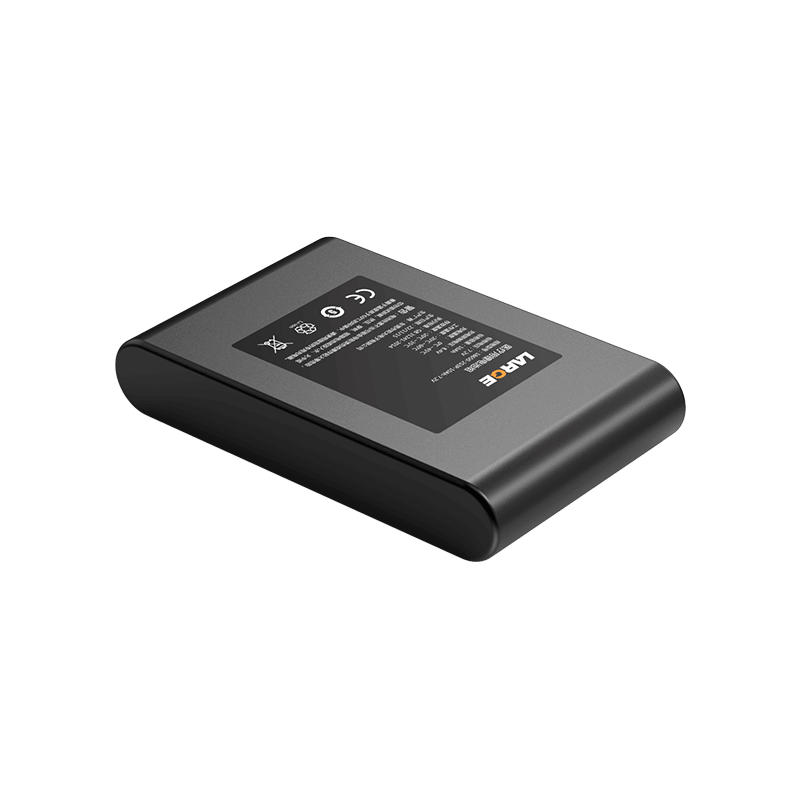

18650 7.2V 10Ah Medical Lithium-ion Battery Pack

Product number: 40AQ028-01

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-2S3P-10Ah-7.2V

Nominal voltage: 7.2V

Nominal capacity: 10Ah

Charging voltage: 8.4V

Charging current: ≤4.5A

Discharge current: 2.0A

Instantaneous discharge current: 4.5A

Discharge cut-off voltage: 6.0V

Finished internal resistance: ≤250mΩ

Battery weight: 305g

Product size: 115*70*20mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection, ESD protection, etc.

Applications: medical handheld equipment, portable camera equipment, security monitoring equipment
