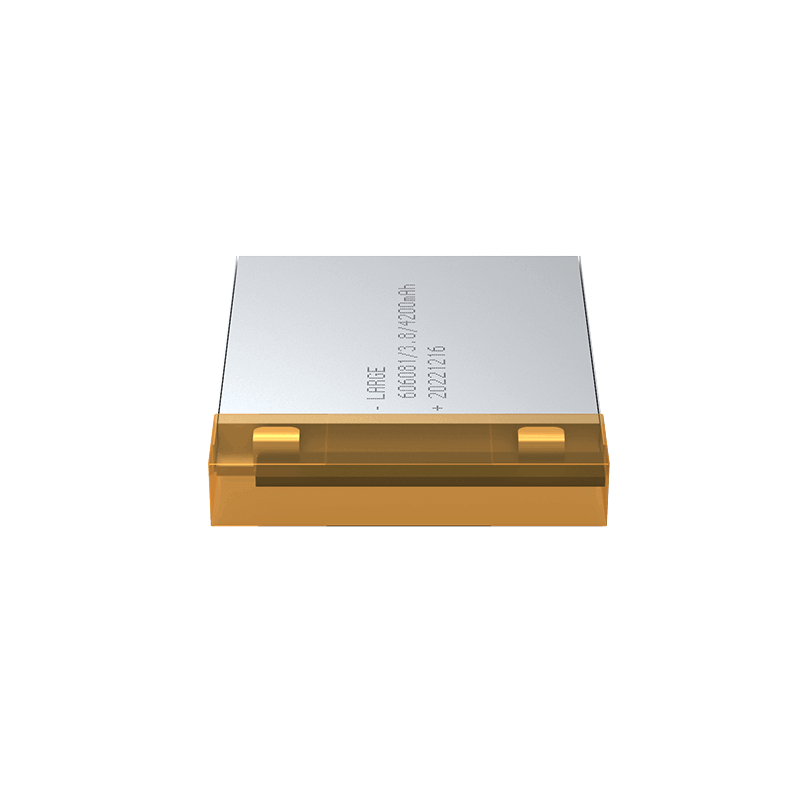

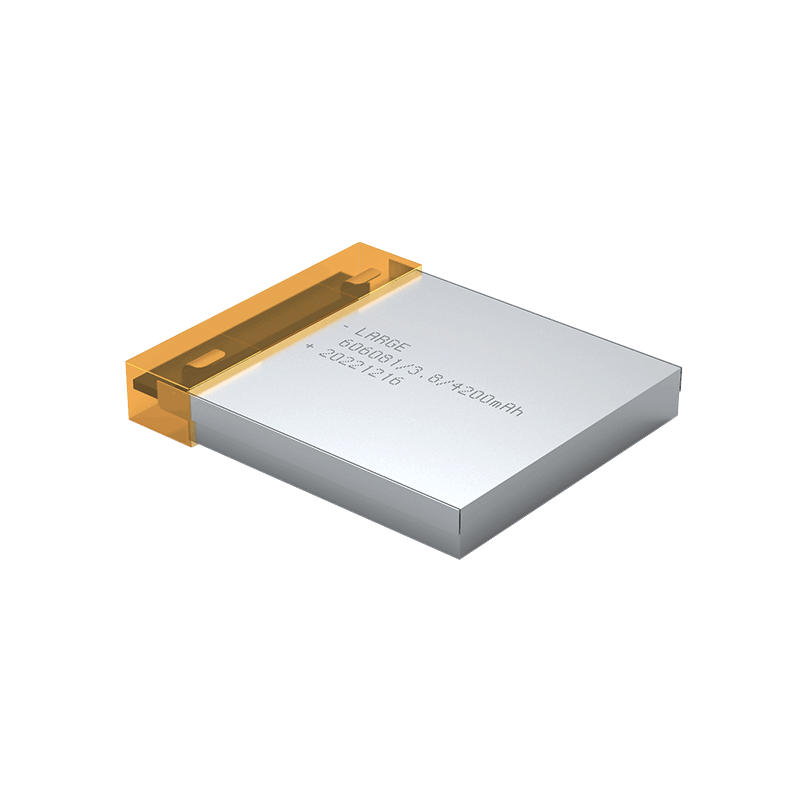

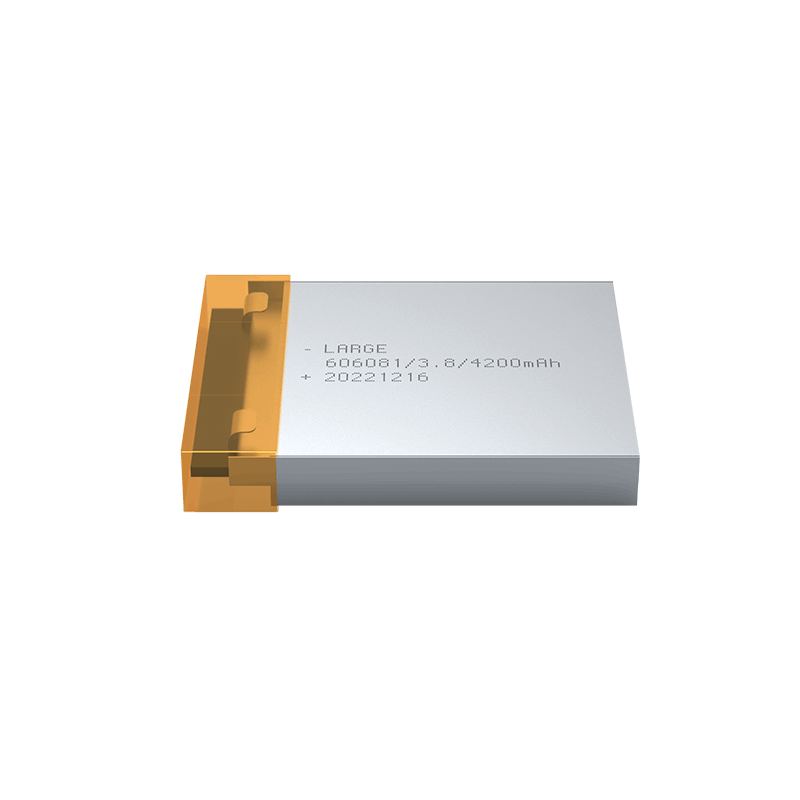

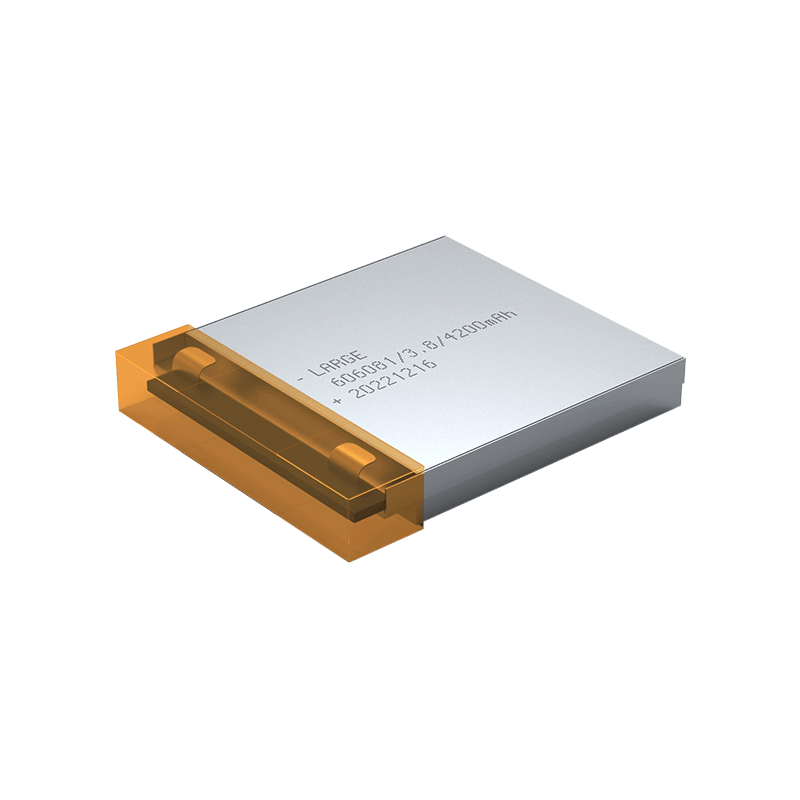

High Energy Polymer Lithium-ion Battery 606081 3.8V 4200mAh Explosion-proof Lighting Monitoring Terminal

Product number: 04BQ118-45

Cell type: 606081-4200mAh-3.8V

Battery specification: 606081-1S1P-4200mAh-3.8V

Product size: 85*60.5*6.5mm

Nominal voltage: 3.8V

Nominal capacity: 4200mAh

Finished internal resistance: ≤180mΩ

Charging voltage: 4.35V

Charging current: ≤2.0A

Discharge current: ≤2.0A

Discharge cut-off voltage: 3.0V

Battery weight: 50g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ℃

Battery package: polymer simple package

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: multi-function camera lighting device, portable lighting device, mobile lighting device

Product Features

1.Simple package is simple and reliable, easy to install;

2.Battery pack adopts special ACi special connector for good stability and good contact performance;

3.Battery protection management: Use special lithium battery protection chip, with high stability, high precision monitoring, accurate control,temperature NTC sensing and other functions to minimize safety hazards;

4. The battery pack is safe with high discharge rate, and its discharge capacity of more than 90%;

5.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
