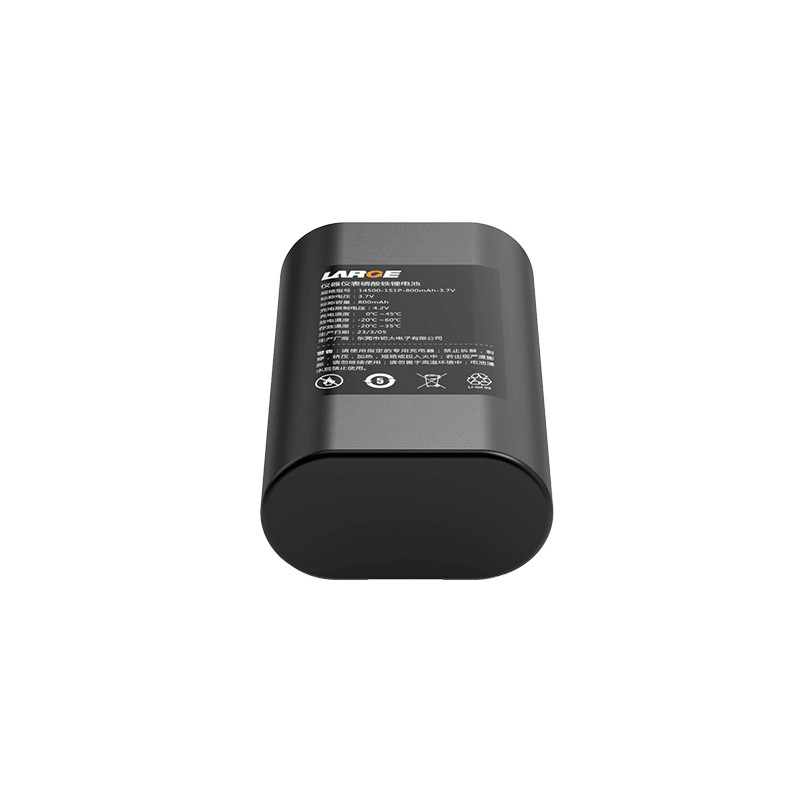

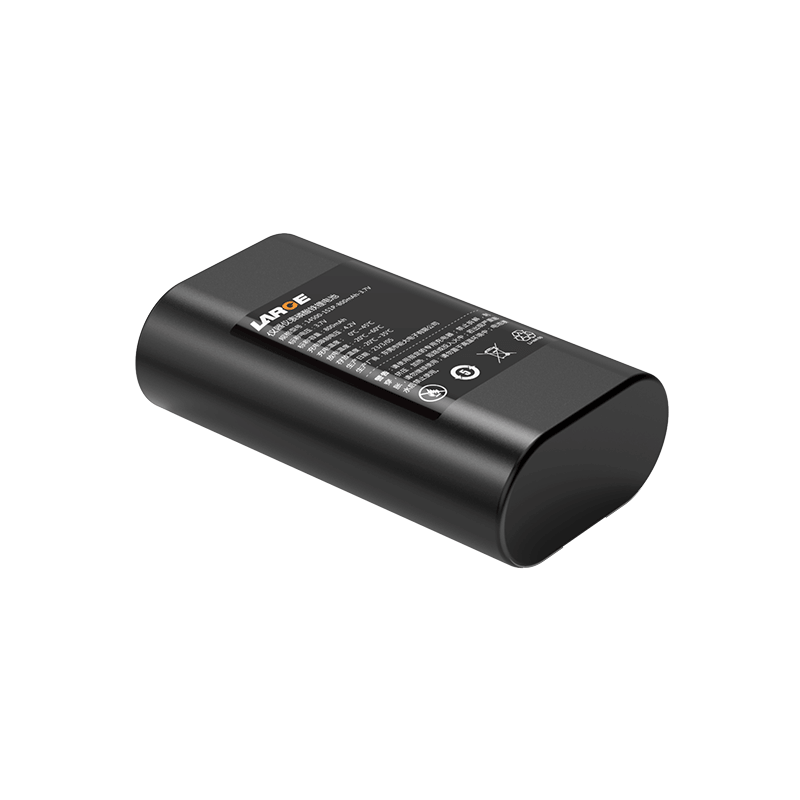

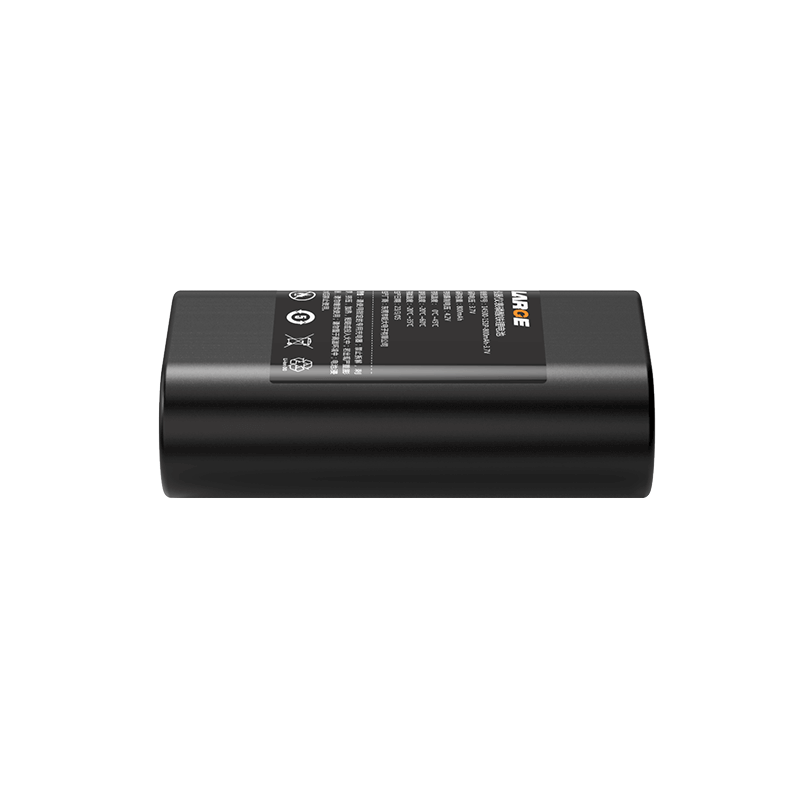

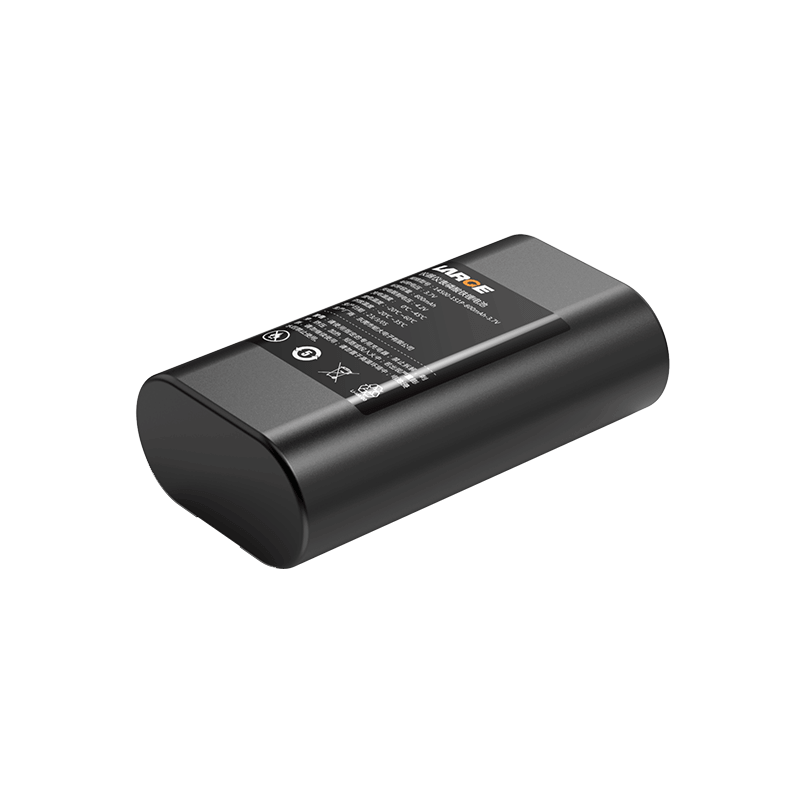

18650 6.4V 1800mAh Instrument LiFePO4 battery

Product number: 01DQ0162-01

Battery model: 18650-1800mAh-3.2V

Battery specification: 18650-2S1P-1800mAh-6.4V

Product size: 68*37.5*21mm (Max)

Nominal voltage: 6.4V

Nominal capacity: 1800mAh

Finished internal resistance: ≤150mΩ

Charging voltage: 7.2V

Charging current: ≤1.6A

Discharge current: ≤5.0A

Discharge cut-off voltage: 5.0V

Battery weight: 100g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Applications: Instrumentation, portable equipment

Product Features

1.Blue PVC heat shrink film package is simple and reliable,and easy to install;

2.The battery pack is connected with special nickel core, which has good shock resistance and impact resistance.

3.National standard wire output mode: Use solder joint. Solder welding can increase conductive reliability;

4.Battery protection management: Use special lithium-ion battery protection chip, with high stability, high precision monitoring, accurate control,to minimize safety hazards;

5.The battery pack use lithium iron phosphate battery cell with good safety performance and long cycle life.It can support more than 800 cycles;

6.The battery pack has long cycle life,which in line with low carbon, energy saving, environmental protection value concept.
