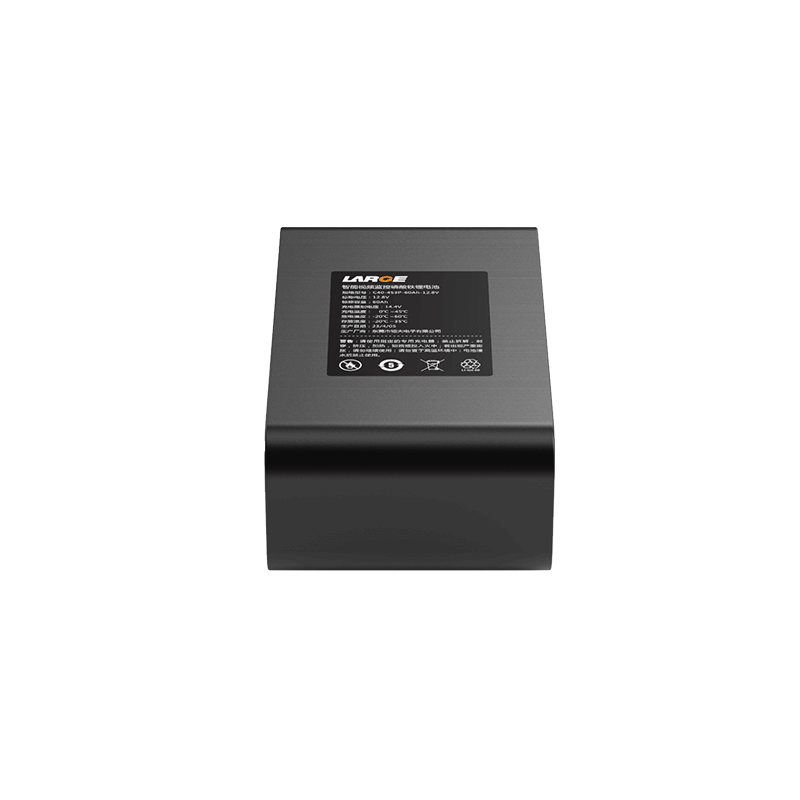

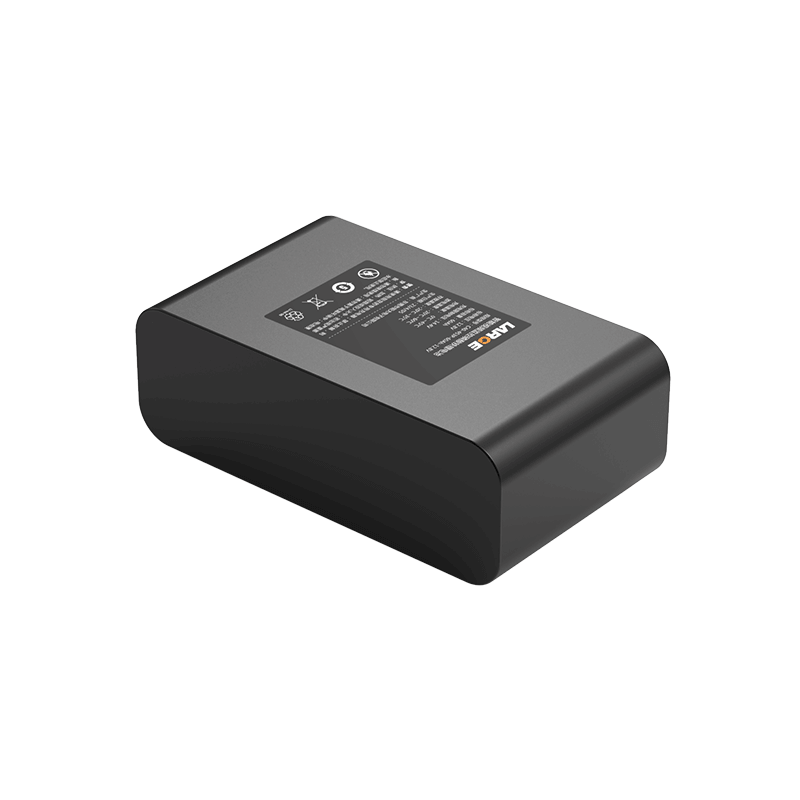

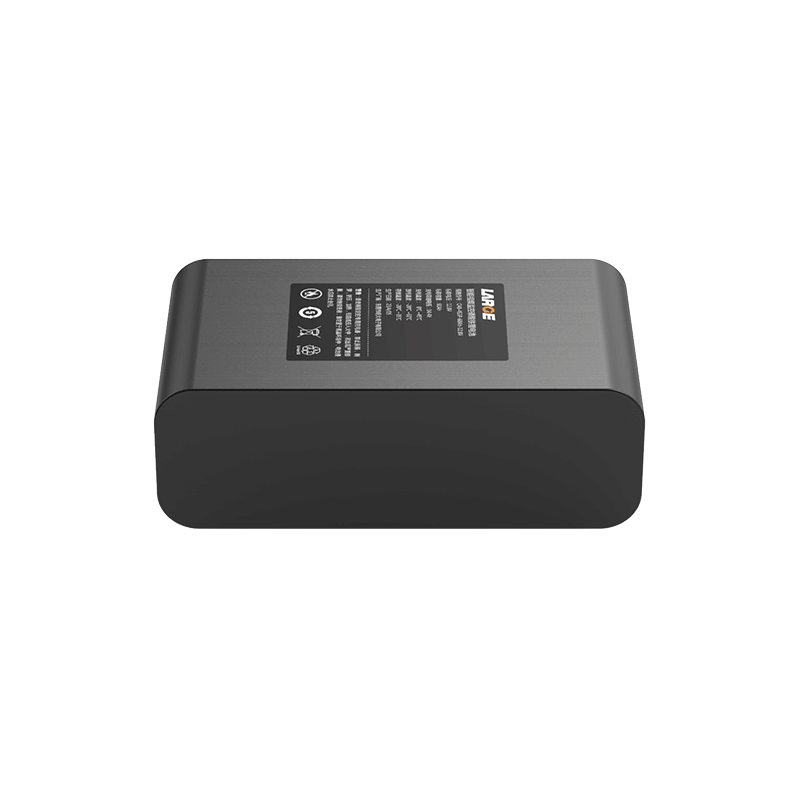

C40 12.8V 60Ah Intelligent Video Surveillance Lithium Iron Phosphate Battery

Product number: 05DQ0068-07

Cell model: C40-20Ah-3.2V

Battery specifications: C40-4S3P-60Ah-12.8V

Product size: 243*142*81mm

Nominal voltage: 12.8V

Nominal capacity: 60Ah

Finished internal resistance: ≤120mΩ

Charging voltage: 14.4V

Charging current: ≤10.0A

Discharge current: ≤10.0A

Discharge cut-off voltage: 8.8V

Battery weight: 1500g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Applications: power/national road and other intelligent video surveillance equipment, security equipment

Product Features

1.Blue PVC heat shrink film package is simple and reliable,and easy to install;

2.The battery pack is laser welded with special nickel sheet, which has good vibration resistance, shock resistance and connection performance.

3.Adopt MOLEX plug output mode to increase electrical conductivity reliability;

4.Use special lithium battery protection chip, with high stability, high precision monitoring, precise control, temperature protection and other functions, to eliminate safety hazards;

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
