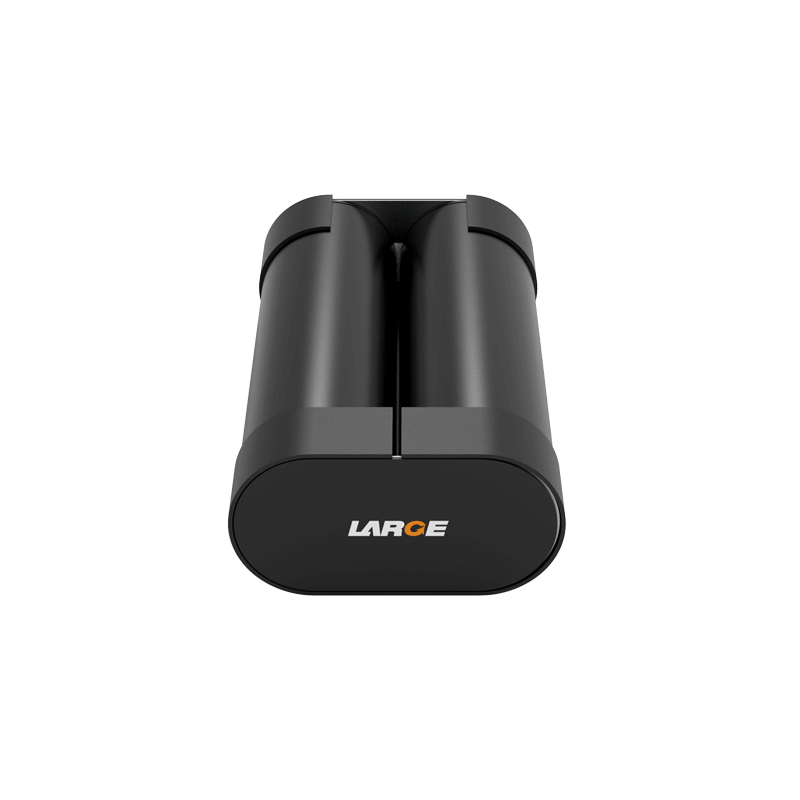

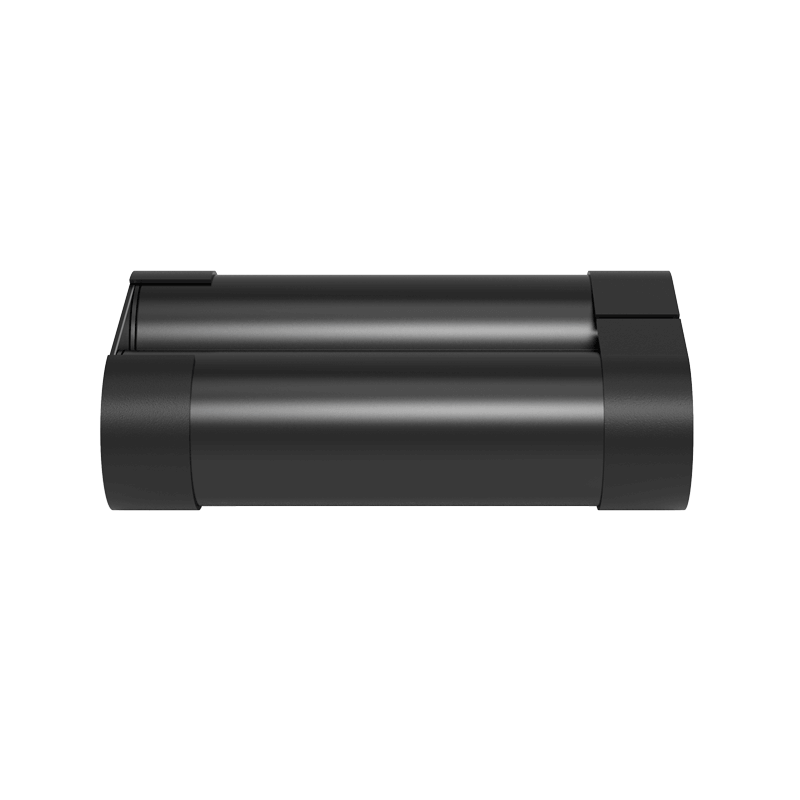

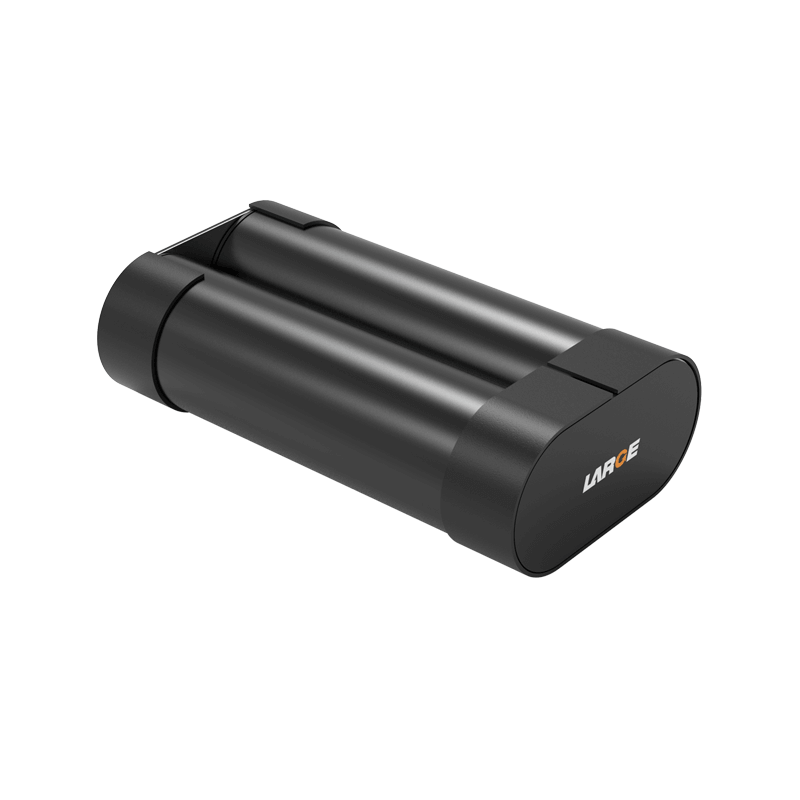

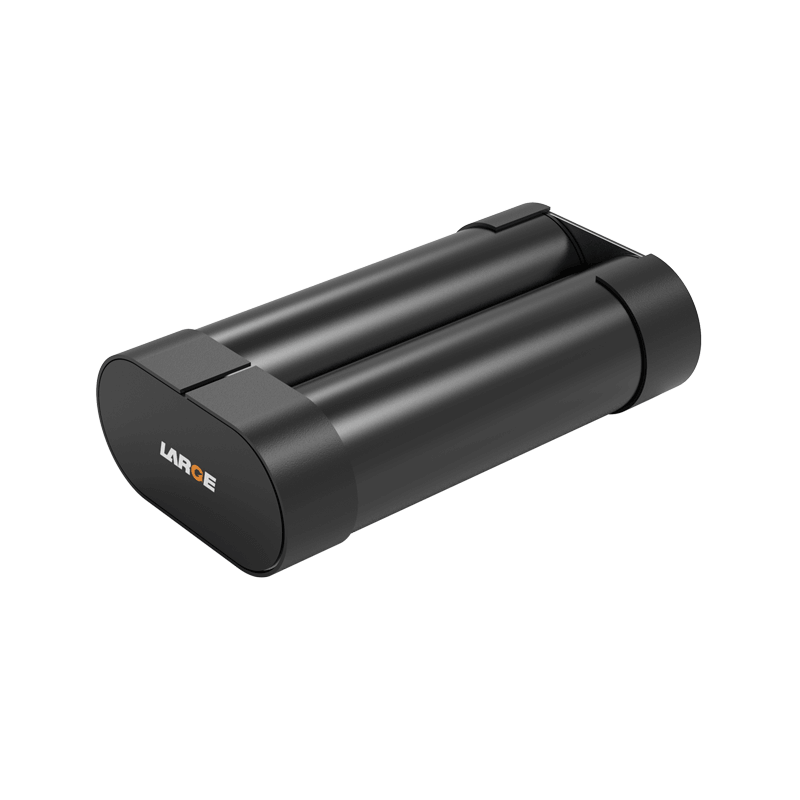

18650 3.6V 5200mAh LS Battery for Security Monitoring Equipment

Product number: 04DQ0118-01

Cell model：18650/2600mAh/3.6V

Battery specification: 18650-1S2P/5200mAh/3.6V

Nominal voltage：3.6V

Nominal capacity：5200mAh

Charging voltage: 5V to 4.2V charging

Charging current: ≤2.5A

Discharging current: 2.5A

Instant discharging current: 9A

End-off voltage: 3.0V

Internal resistance: ≤250mΩ

Battery weight: 130g

Product dimension: 19.3*38.1*66.7mm

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～25 ℃

Battery case: ABS+PC

Lithium ion battery protection: capacity calculation, short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: security monitor
