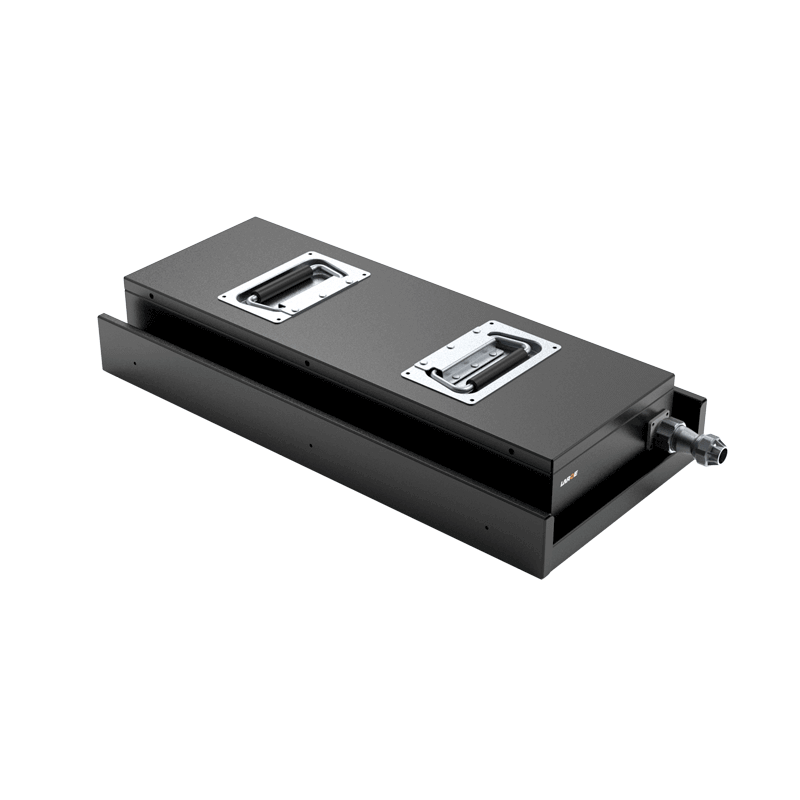

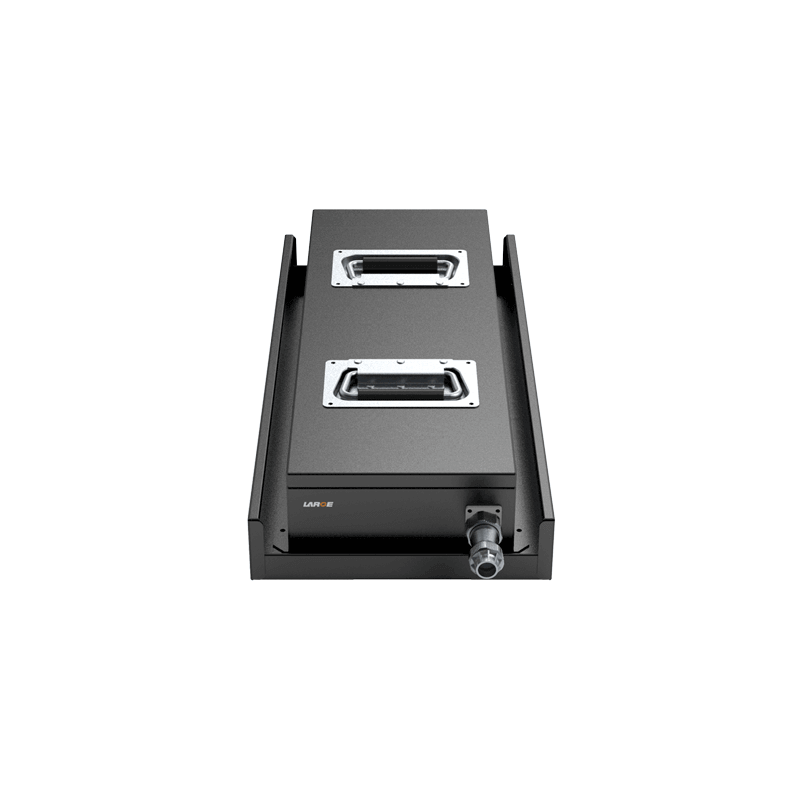

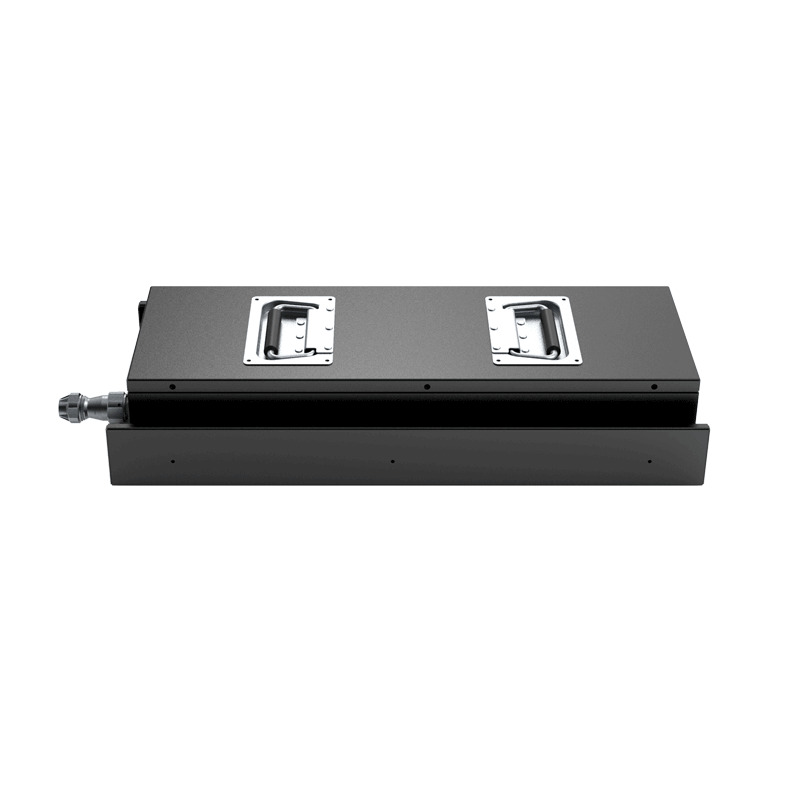

26650 25.6V 34Ah LiFePO4 Battery for Outdoor Computer

Product number: 41DZ010-01

Cell model: 26650-3400mAH-3.2V

Battery specification: 26650-8S10P-34AH-25.6V

Nominal voltage: 25.6V

Nominal capacity: 34Ah

Charging voltage: 29.2V

Charging current: ≤10A

Discharge current: 20A

Instant discharge current: 30A

Discharge cut-off voltage: 20V

Finished product internal resistance: ≤300mΩ

Battery weight: 10kg

Product dimension: length 513*210*90mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -10 ~ 60℃

Storage temperature: -20 ~ 45℃

Battery shell: industrial grade metal-plated shell

Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: outdoor computer equipment

Product features

1.Large current output: Copper nickel composite nickel strip is used to connect the cell, which can satisfy the charge and discharge of large current. It is safe and reliable.

2.Output aviation plug: Use aviation linker, which is safe and reliable, to meet the requirement of high current discharge;

3.Data communication management: Adopt imported high-precision BMS management chip, accurate protection parameter control, precise temperature control to eliminate security risks.

4.Battery characteristics: The cell has long life up to 2000 cycles, and can charge and discharge continuously with high power.

5.The battery has good safety with temperature probe. When the temperature exceeds, start protection automatically;

6.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
