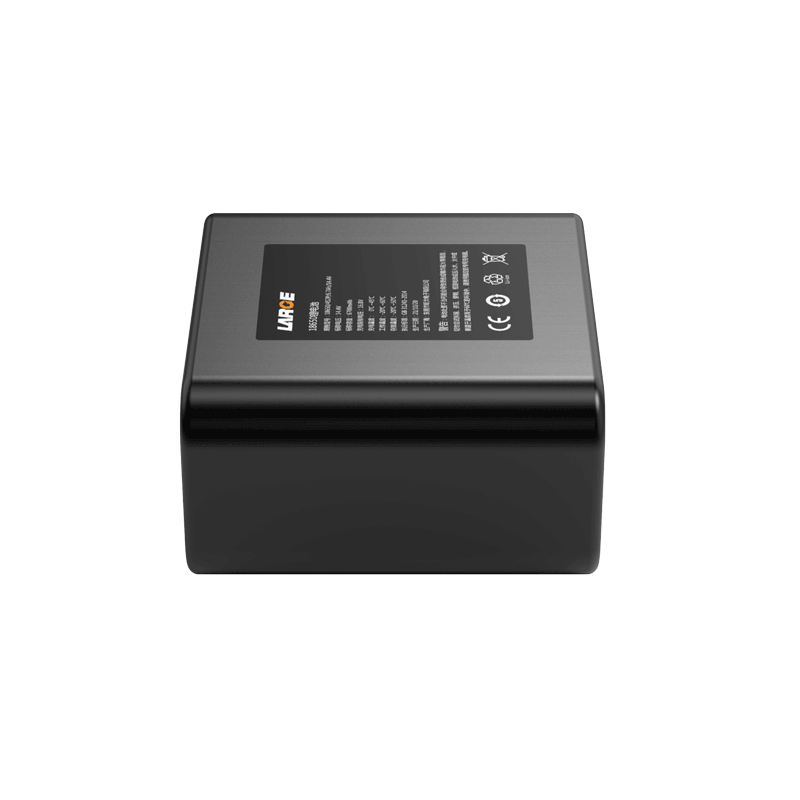

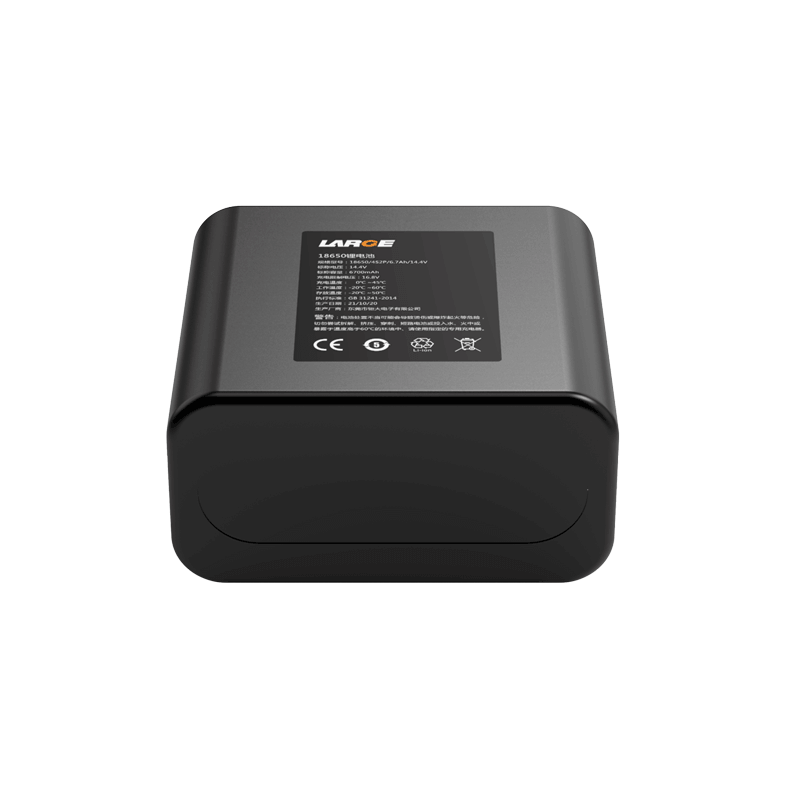

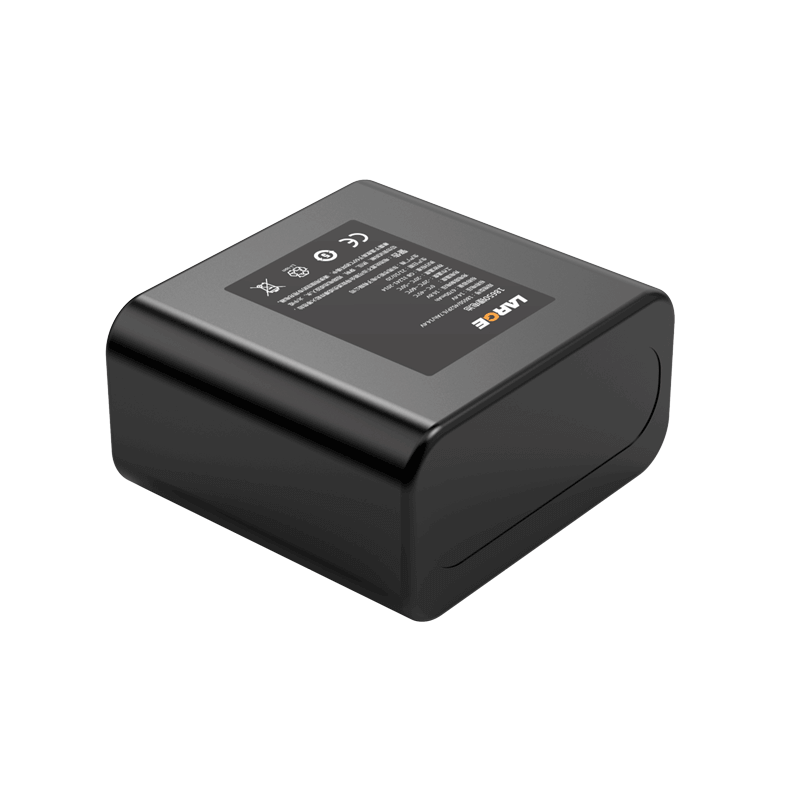

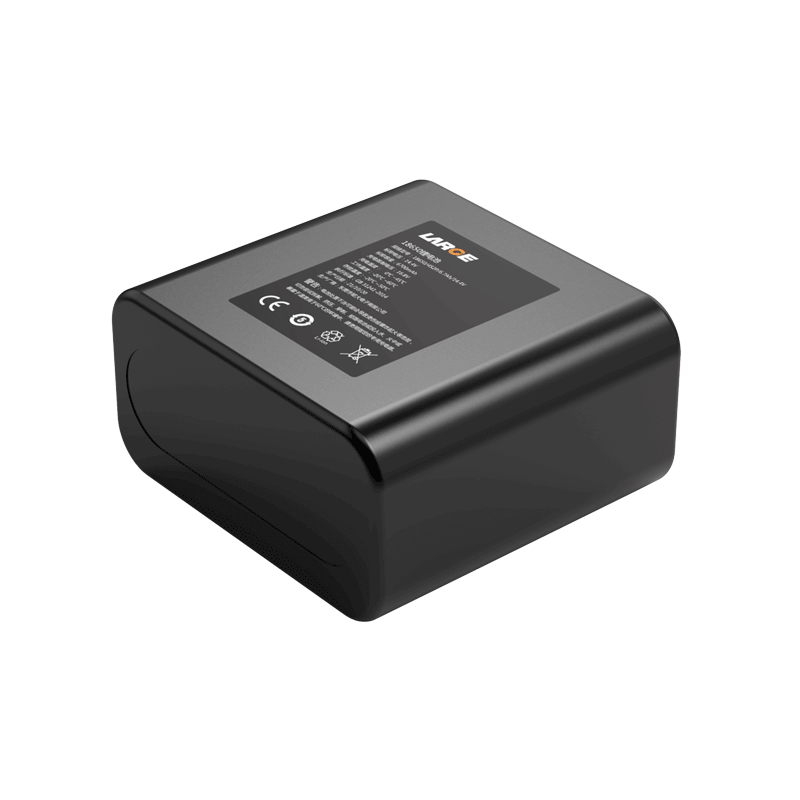

18650 6.7Ah 14.4V Samsung Battery for UV Disinfection Equipment

18650 6.7Ah 14.4V Samsung Battery for UV Disinfection Equipment
18650 6.7Ah 14.4V Samsung Battery for UV Disinfection Equipment
18650 6.7Ah 14.4V Samsung Battery for UV Disinfection Equipment
18650 6.7Ah 14.4V Samsung Battery for UV Disinfection Equipment

Product Detail

Product number: 05DQ0056-01

Cell model: 18650/3350mah /3.6V

Specification: 18650/4S2P/6.7Ah/14.4V

Product size: 75mm*70mm*37.5mm (Max)

Nominal voltage: 14.4V

Nominal capacity: 6.7Ah

Charging voltage: 16.8V

Charging current: ≤3.35A

Discharge current: ≤3.35A

Discharge cut-off voltage: 10V

Product internal resistance: ≤180mΩ

Battery weight: About 500G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20~+50℃ (less than 1 month) -20~ 40 ℃(less than 3 months); -20~+20℃ (less than 12 months)

Battery packaging: PVC process

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: UV disinfection equipment


Product Features

1.PVC process

2.Output terminal: Adopt the GB UL wire output mode to increase conductive reliability.

3.Battery protection management: Adopt well-known protection chips with good stability, high precision monitoring and precise control, to minimize safety risks.

4.The battery pack has good safety, nice discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
