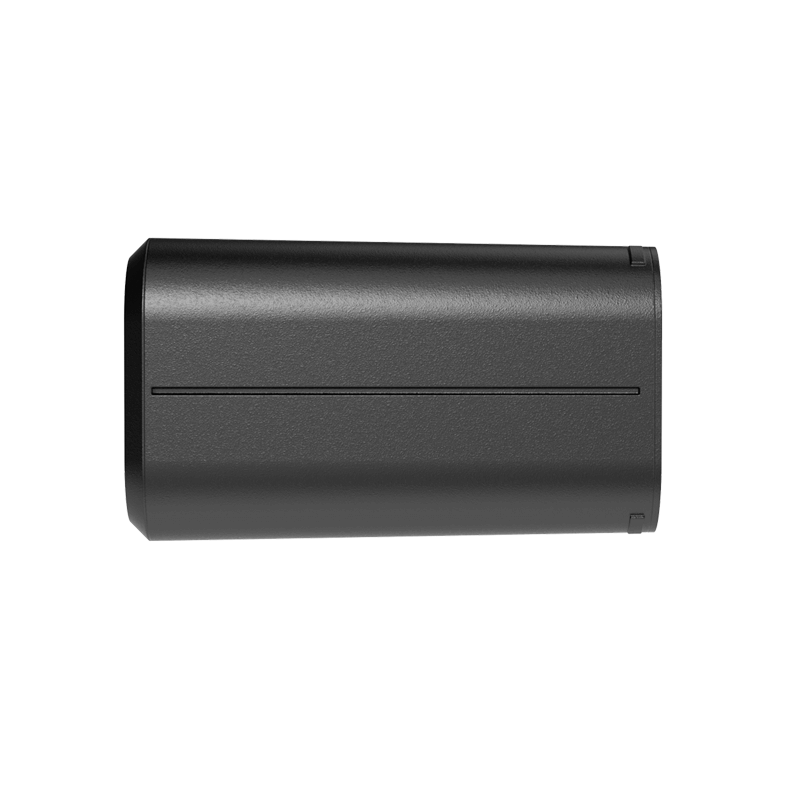

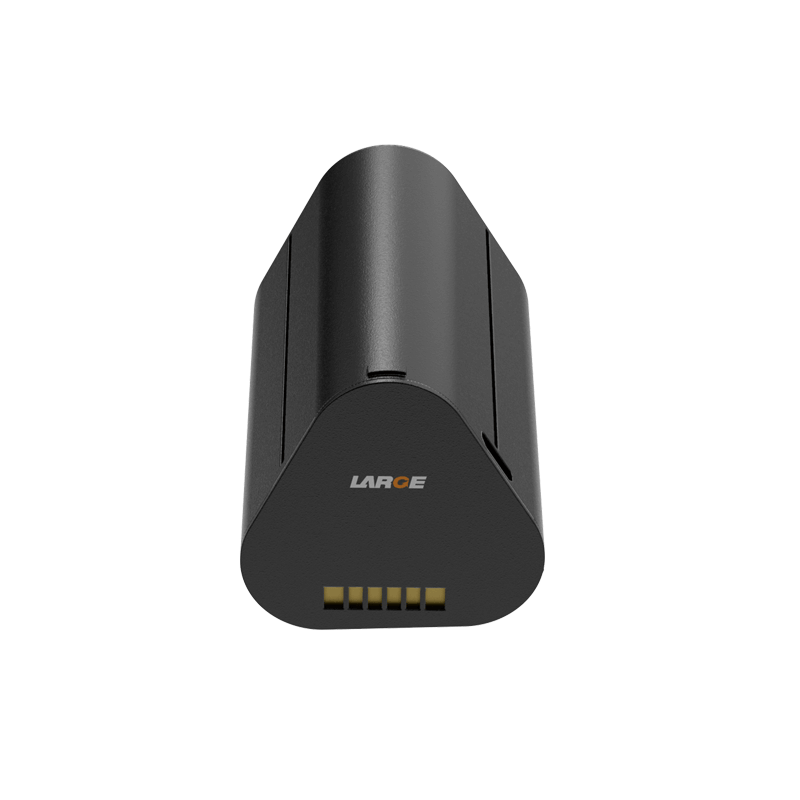

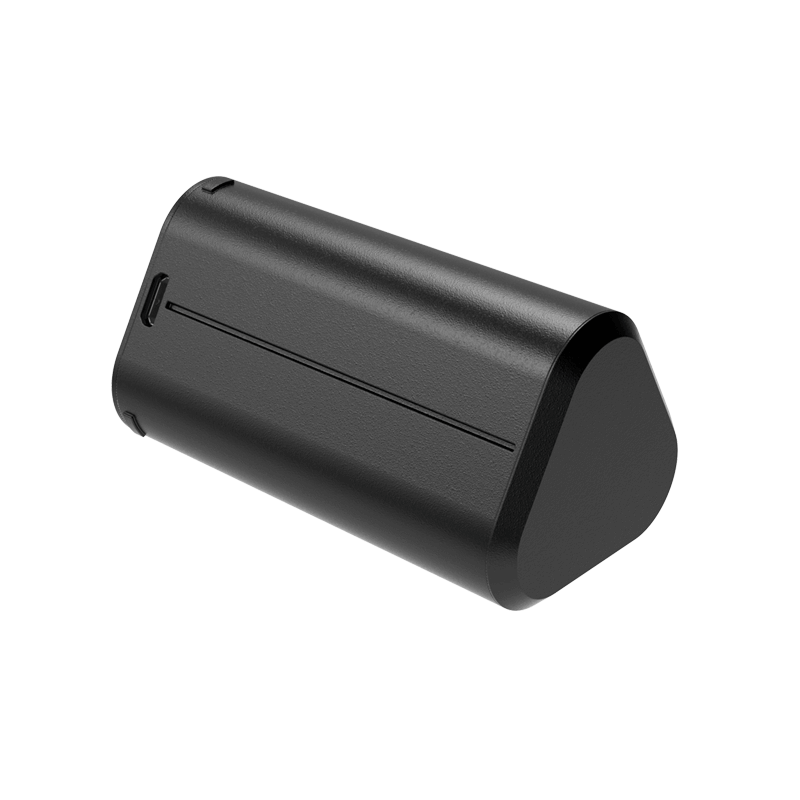

18650 3.6V 7800mAh Lithium-ion Battery for Monitor

18650 3.6V 7800mAh Lithium-ion Battery for Monitor
18650 3.6V 7800mAh Lithium-ion Battery for Monitor
18650 3.6V 7800mAh Lithium-ion Battery for Monitor
18650 3.6V 7800mAh Lithium-ion Battery for Monitor

Product Detail

Project number: 01DQ0040-23T

Cell model: 18650/2600mah /3.6V

Specification: 18650/1S3P/7800mAh/3.6V

Nominal voltage: 3.6V

Nominal capacity: 7800mAh

Charging current: ≤2.0A

Discharge current: 3.5A

Instantaneous discharge current: 3.5A

Discharge cut-off voltage: 2.9V

Finished product internal resistance: ≤160mΩ

Battery weight: 180G

Product size: 39.14*41.65*74.20mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 25 ° C

Battery case: Metal case

Intelligent lithium battery protection: power calculation, short circuit protection, over charge protection, over discharge protection, over current protection, USB charging and so on

Application: Security monitoring

*
*
*
