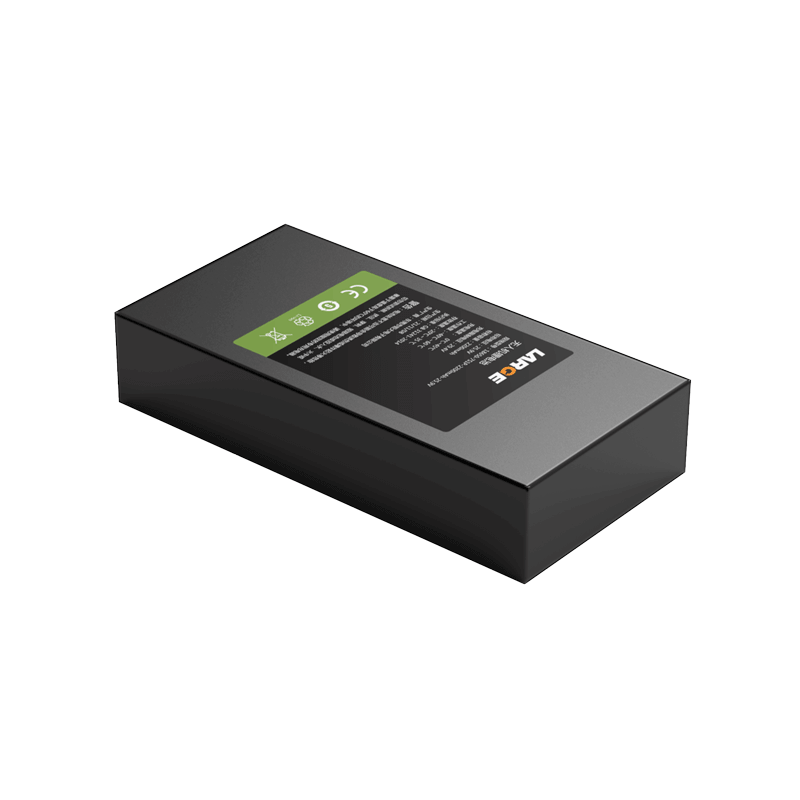

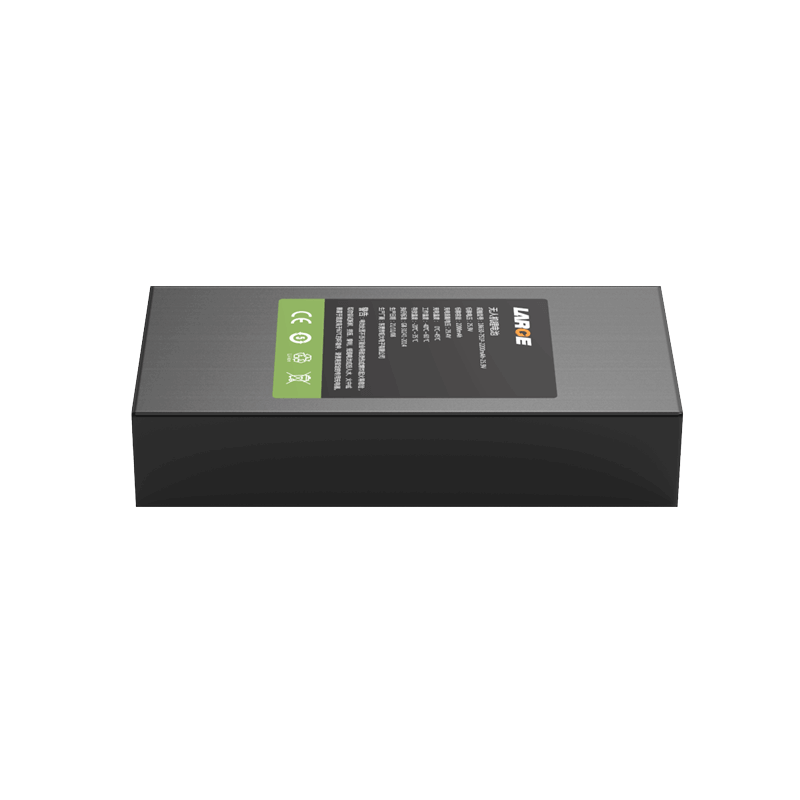

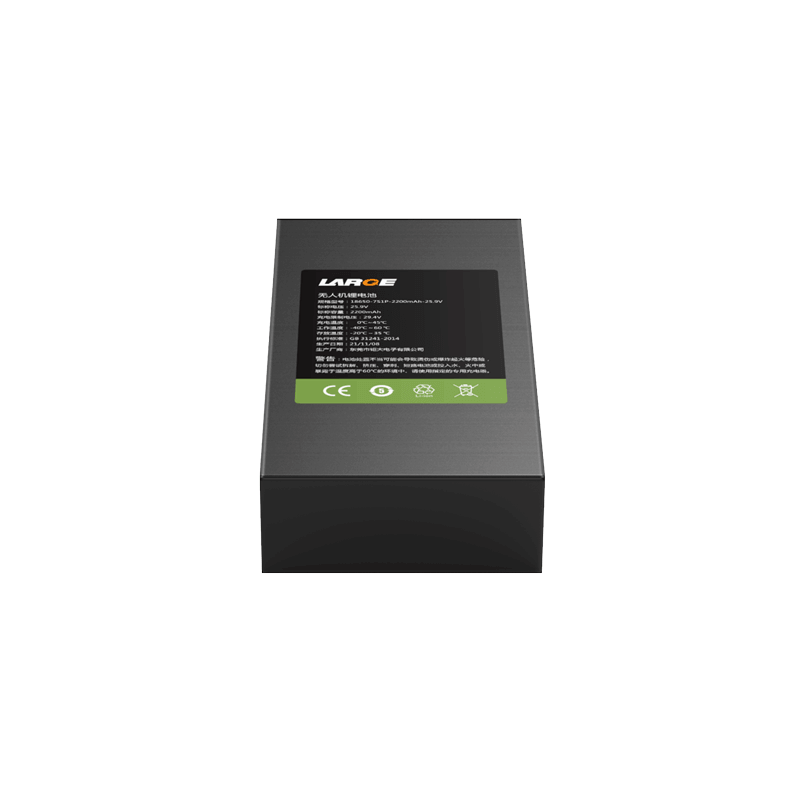

18650 2200mAh 7.4V Lithium-ion Battery for UAV

Product number: 35AQ224-01

Cell model: 18650-2200MAH-3.7V

Specification: 18650-7S1P-2200MAH-25.9V

Product size: 145*72*38mm (Max)

Nominal voltage: 25.9V

Nominal capacity: 2200mAh

Internal resistance of finished product: ≤500mΩ

Charging voltage: 29.4V

Charging current: ≤1A

Discharge current: ≤2A

Discharge cut-off voltage: 17.5V

Battery weight: 370g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery package: blue PVC heat shrinkable film package

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: UAV

Product Features

1.Blue PVC heat shrinkable film package is simple, reliable and easy to install.

2.Low temperature -40℃ discharge lithium battery

3.Battery protection management: Adopt dedicated lithium battery protection chip with good stability, high precision monitoring and precise control,temperature protection and other functions to eliminate security risks to the greatest extent.

4.The battery pack has good safety, nice low-temperature discharge performance and high low-temperature discharge rate, supporting -40℃ discharge rate and the discharging power is over 60%.

5.The battery pack is safe, has good discharge performance and long cycle life.

6.The battery has long cycle life, in line with low carbon, energy saving, environmental protection values.
