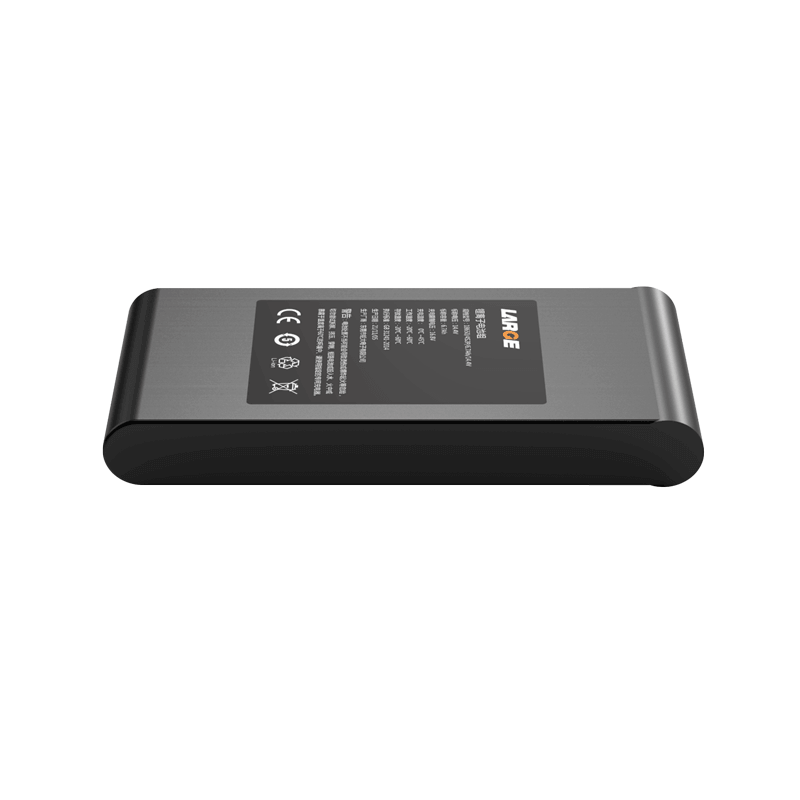

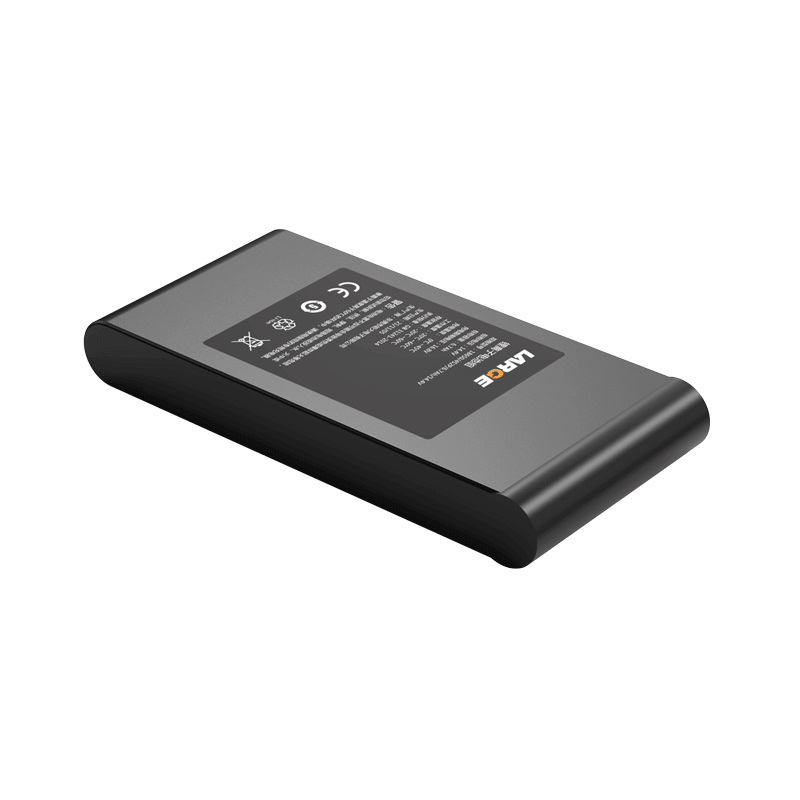

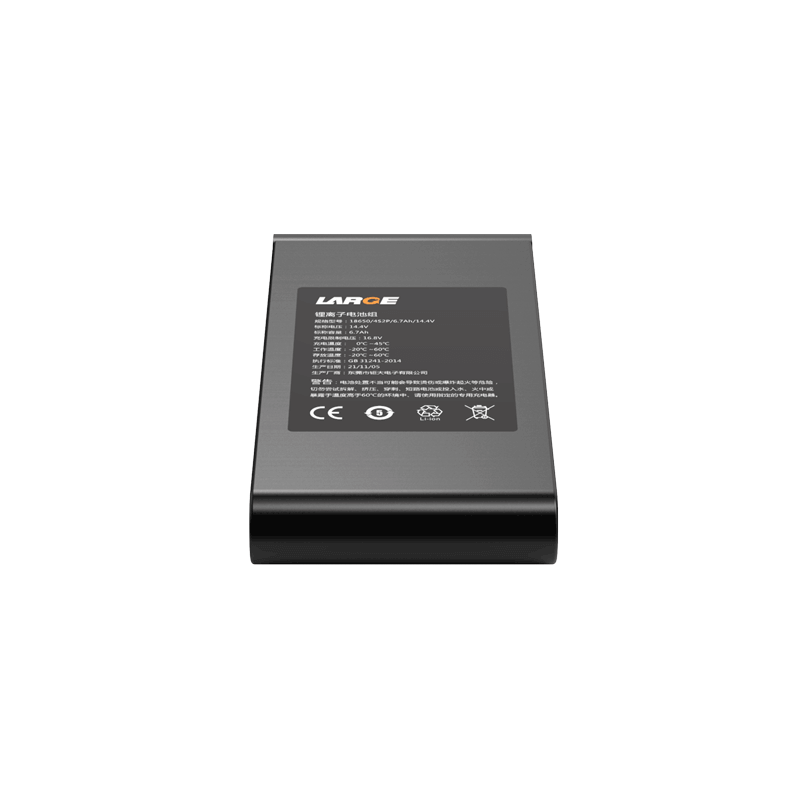

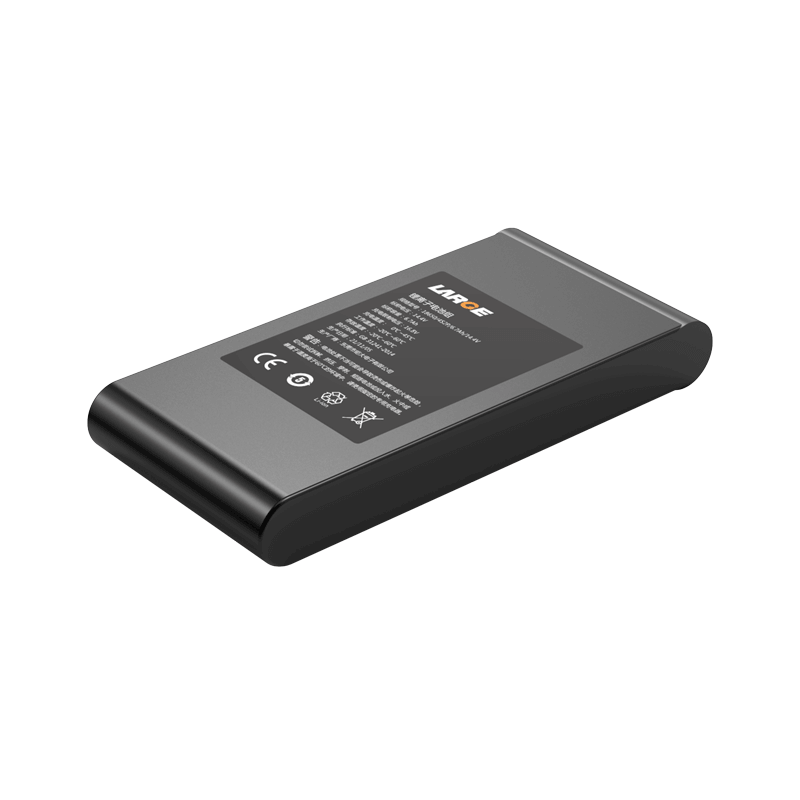

18650 14.4V 6.7Ah Lithium-ion Battery for Rugged Display

Product number: 36AQ6902-01

Cell model: 18650/3350mah /3.6V

Specification: 18650/4S2P/6.7Ah/14.4V

Product size: 154mm *75mm *19.5mm

Nominal voltage: 14.4V

Nominal capacity: 6.7Ah

Charging voltage: 16.8V

Charging current: 5A

Discharge current: 18A

Discharge cut-off voltage: 10V

Product internal resistance: ≤180mΩ

Battery weight: About 480G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20~+60℃ (less than 1 month) -20~ 45 ℃(less than 3 months); -20~+25℃ (less than 12 months)

Battery case: PVC

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: rugged display

Product Features

1.PVC process

2.SMBUS communication protocol

3.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

4.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.

5.The battery pack is safe, has good discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
