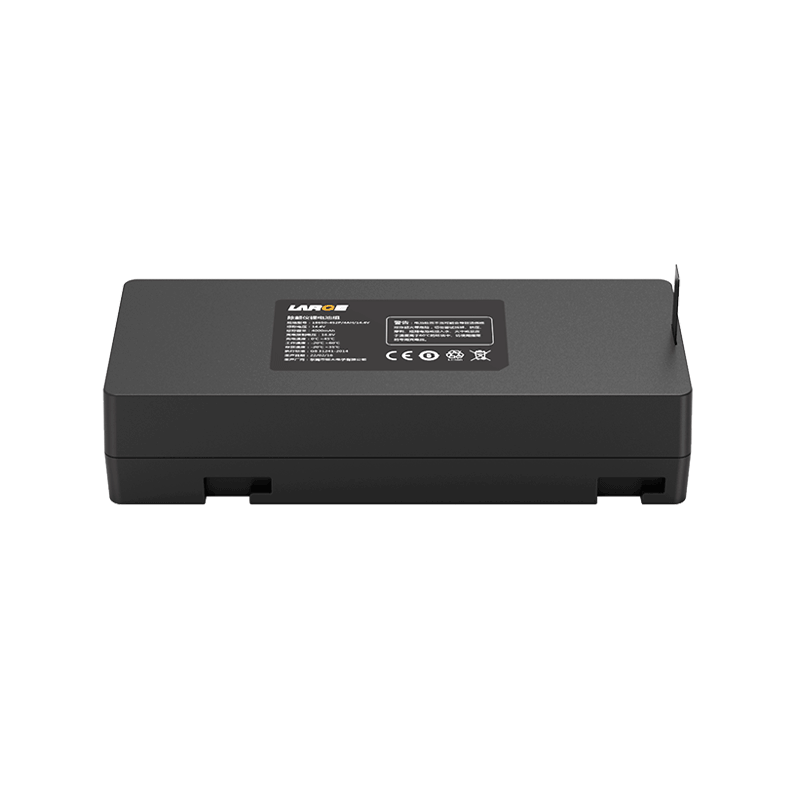

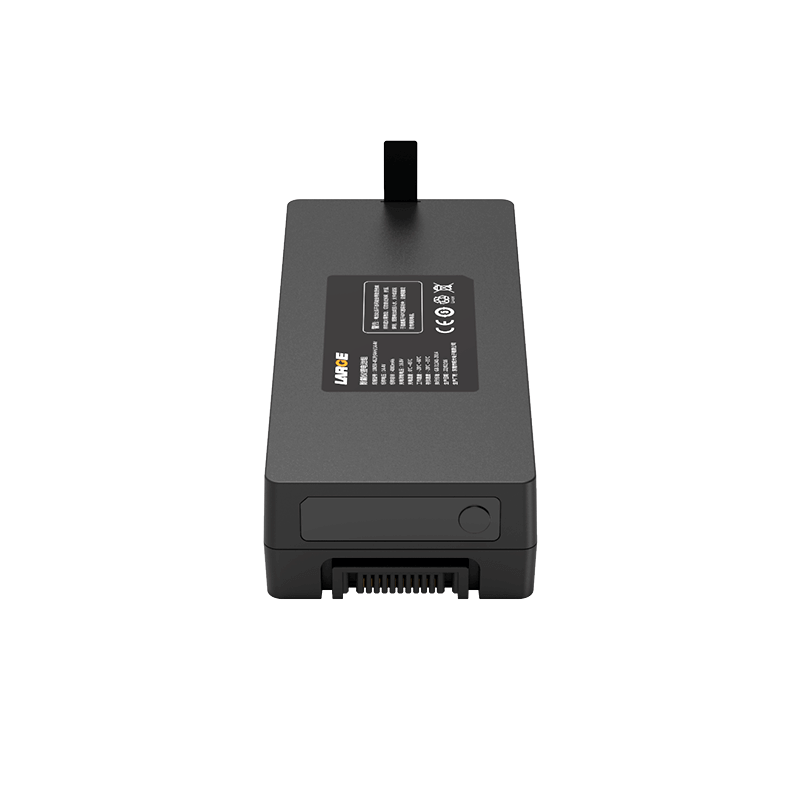

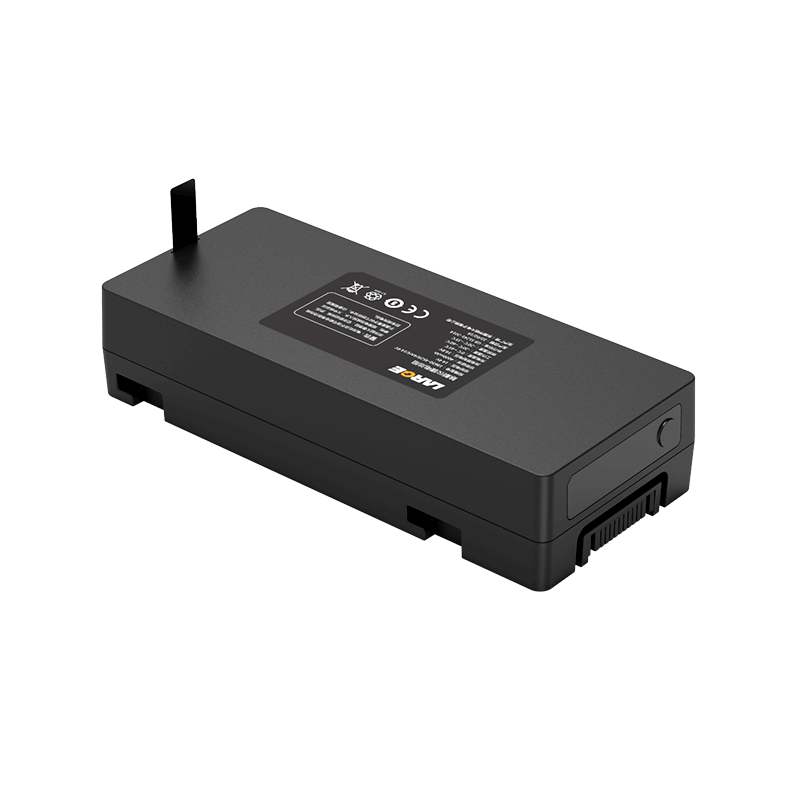

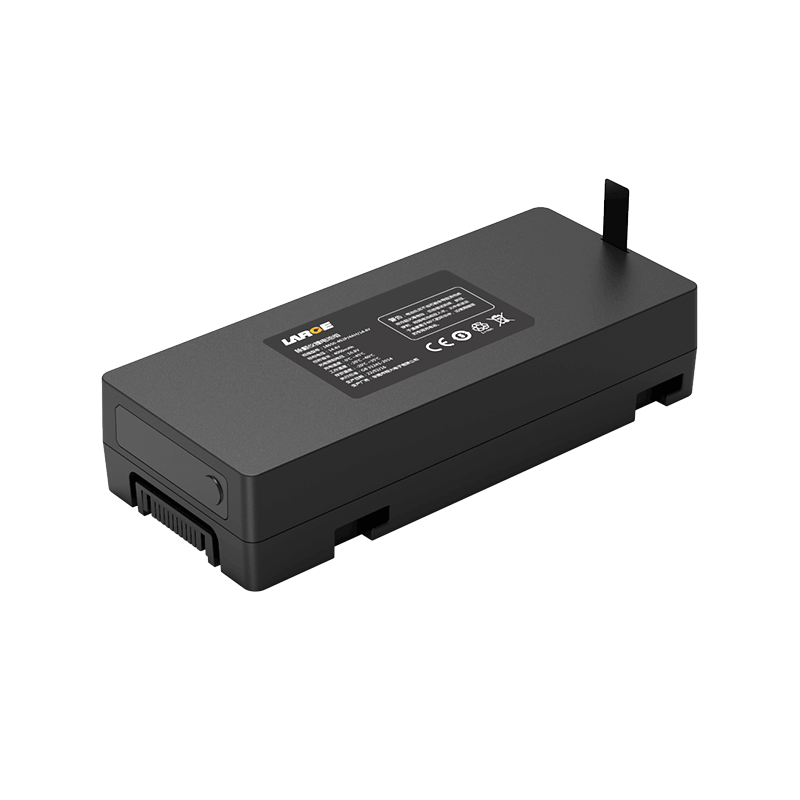

18650 14.4V 4.0Ah Lithium-ion Battery for Cardiac Defibrillator

Project number: 08DQ0082-16

Cell model: 18650/2000mah /3.6V-LS

Specification: 18650-4S2P/4AH/14.4V

Nominal voltage: 14.4V

Nominal capacity: 4.0Ah

Charging voltage: 16.8V

Charging current: ≤4.0A

Discharge current: 10.0A

Instantaneous discharge current: 14.0A

Discharge cut-off voltage: 10.0V

Internal resistance: ≤250mΩ

Battery weight: 500G

Product size: 35*69*160.6mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 35°C

Battery case: ABS+PC

Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Defibrillator
