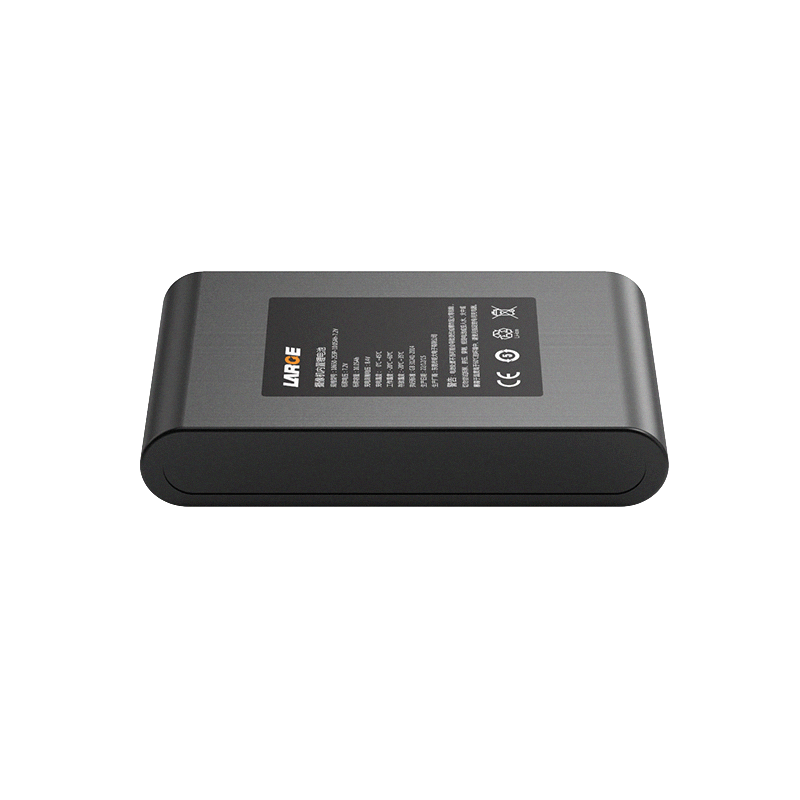

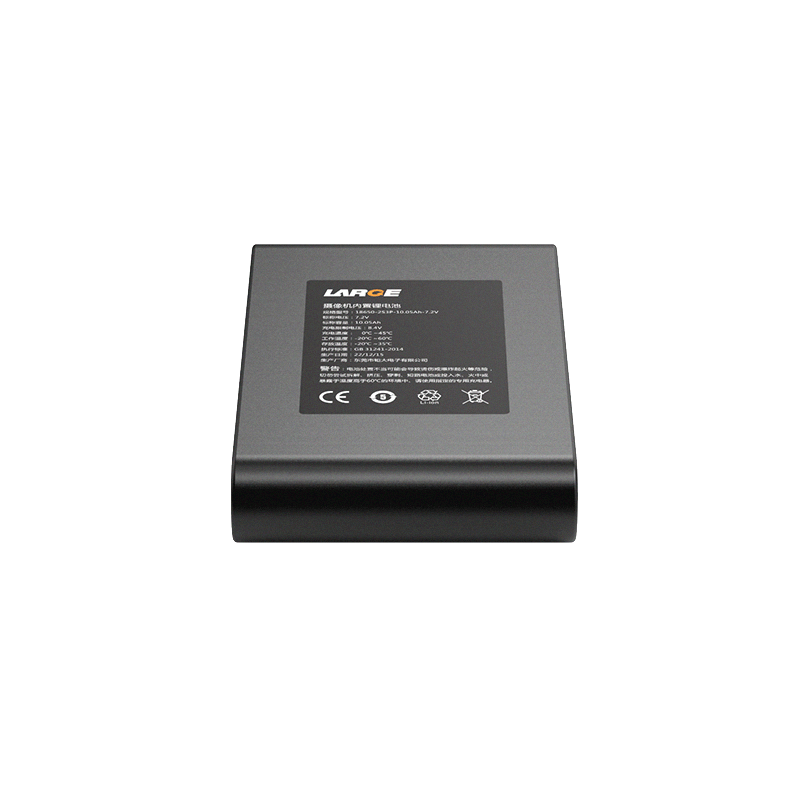

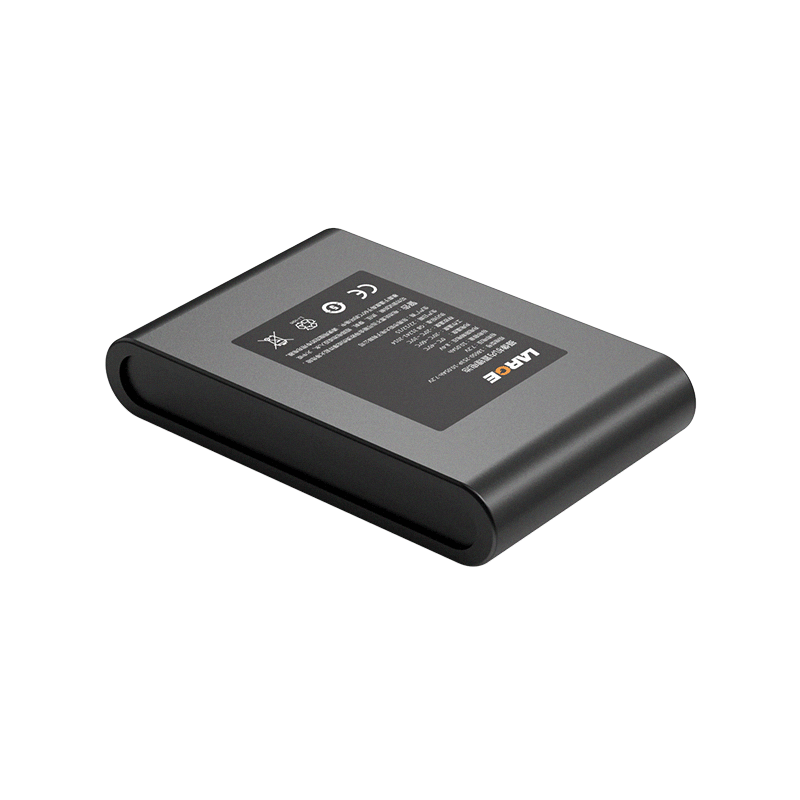

18650 7.2V 10.05Ah Camera Lithium-ion Battery

Product number: 03AQ058-01

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-2S3P-10.05Ah-7.2V

Product size: 113*72*19.5mm (Max)

Nominal voltage: 7.2V

Nominal capacity: 10.05Ah

Finished internal resistance: ≤120mΩ

Charging voltage: 8.4V

Charging current: ≤2.8A

Discharge current: ≤3.0A

Discharge cut-off voltage: 5.0V

Battery weight: 305g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Output mode: JST connector

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc

Applications: Cameras, photographic equipment, portable equipment
