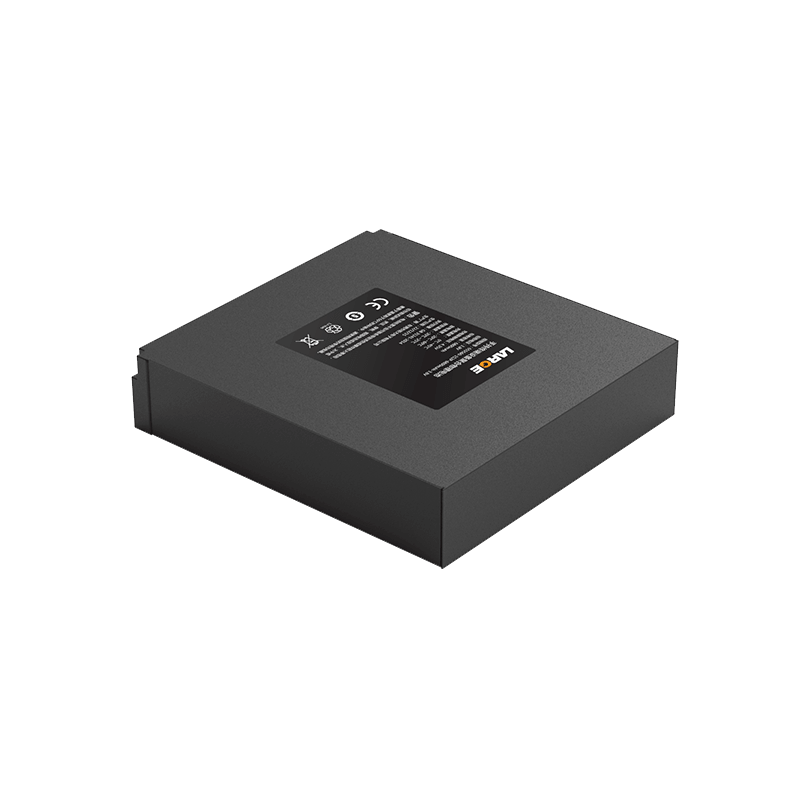

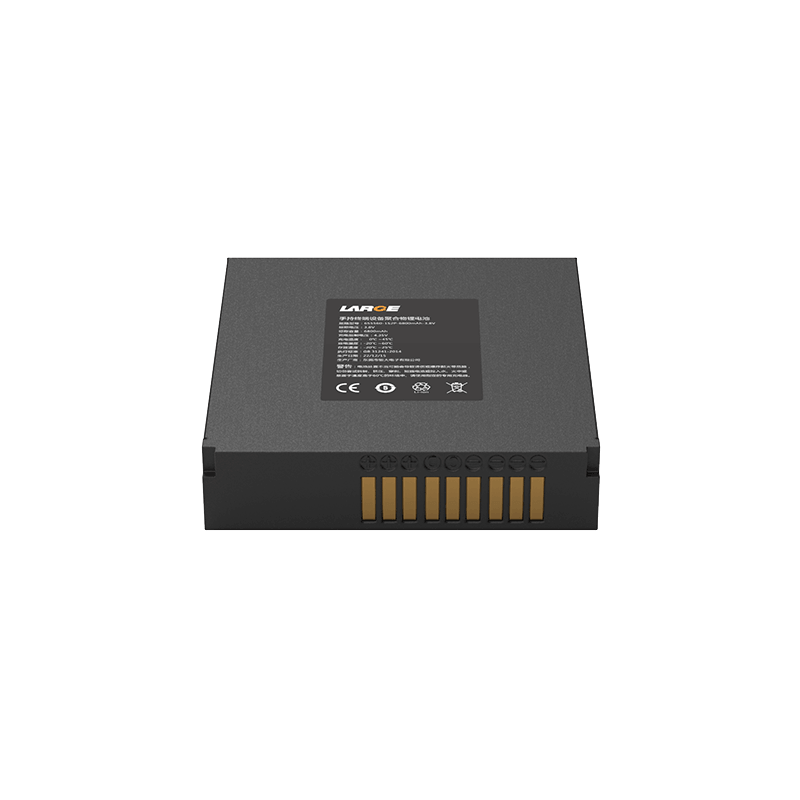

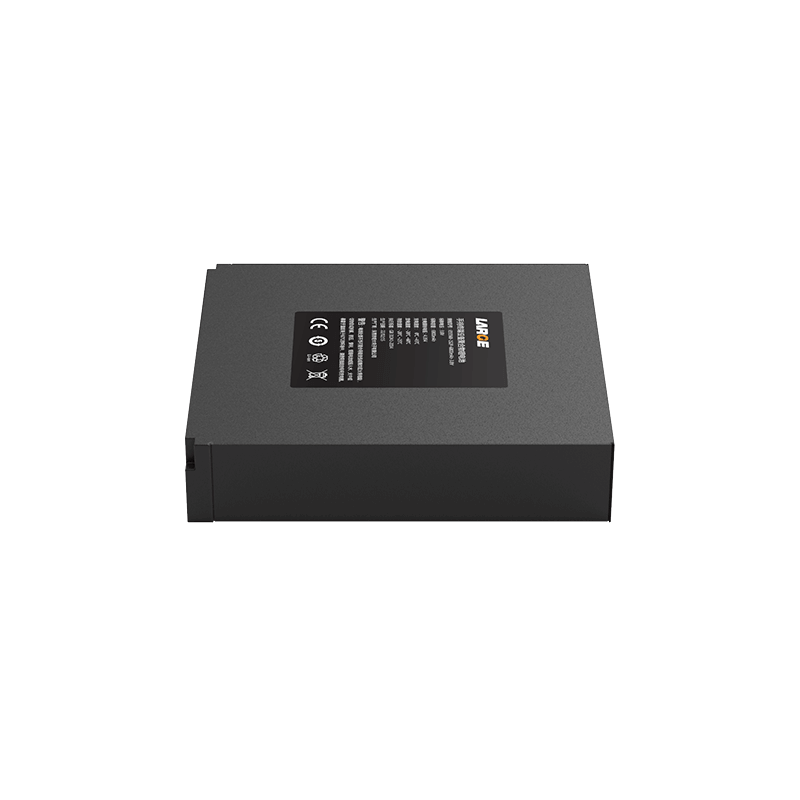

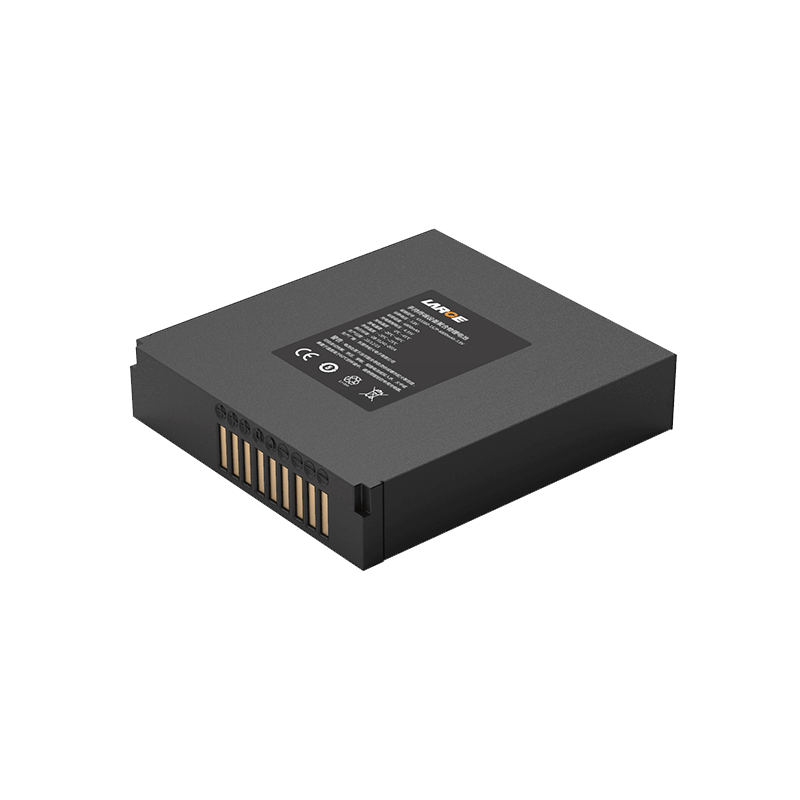

655560 3.8V 6800mAh Handheld Terminal Lithium Polymer Battery

Product number: 35AQ6817-01

Battery model: 655560-3400mAh-3.8V

Battery specification: 655560-1S2P-6800mAh-3.8V

Product size: 65*60*14mm (Max)

Nominal voltage: 3.8V

Nominal capacity: 6800mAh

Finished internal resistance: ≤150mΩ

Charging voltage: 4.35V

Charging current: ≤3.3A

Discharge current: ≤3.3A

Discharge cut-off voltage: 3.0V

Battery weight: 100g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ℃

Battery package: Engineering plastic ABS+PC

Output: Gold plated shrapnel

Communication protocol: SMBus

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Applications: Handheld devices, portable devices
