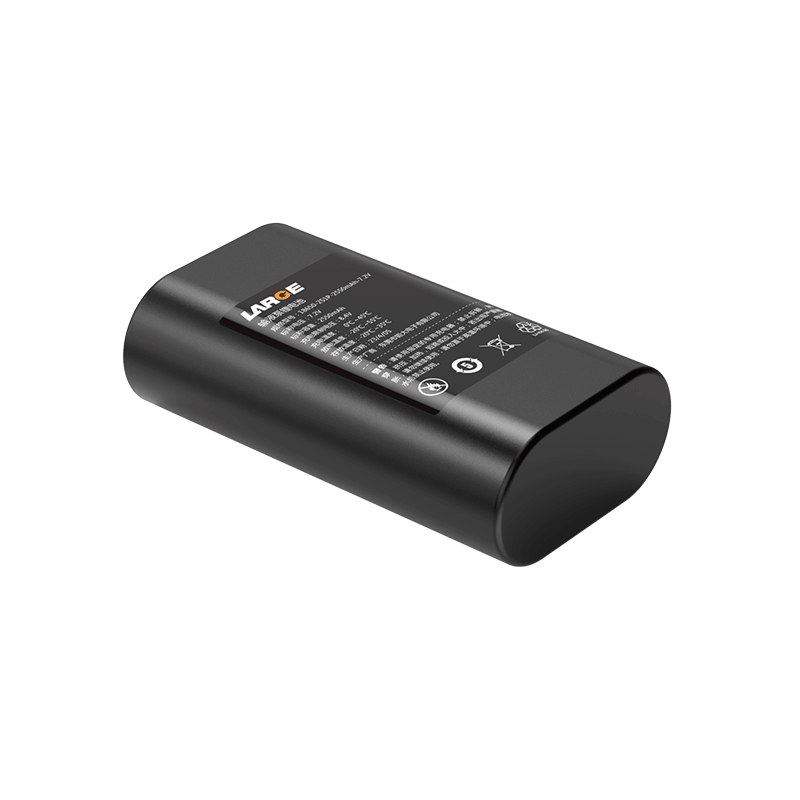

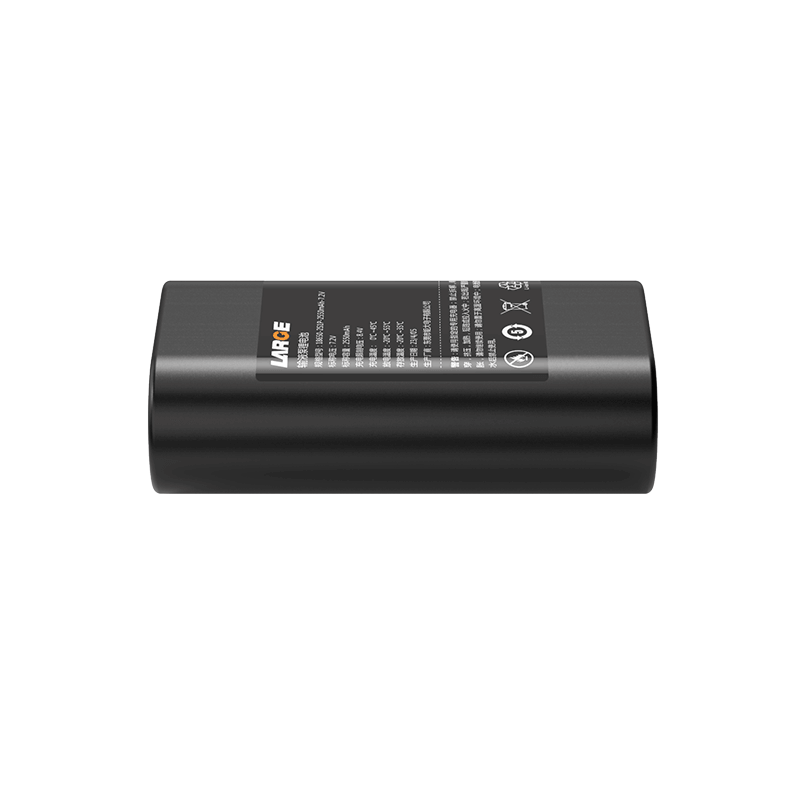

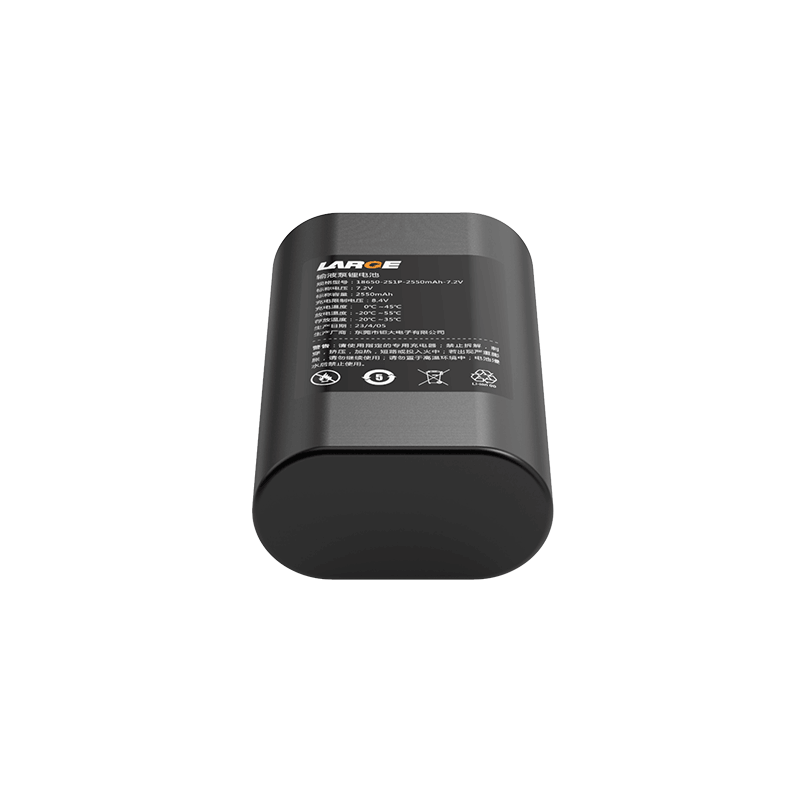

18650 7.2V 2550mAh Infusion Pump Lithium-ion Battery

Product number: 33DZ056-02

Battery model: 18650-2550mAh-3.6V

Battery specification: 18650-2S1P-2550mAh-7.2V

Product size: 72*38.5*19.5mm (Max)

Nominal voltage: 7.2V

Nominal capacity: 2550mAh

Finished internal resistance: ≤200mΩ

Charging voltage: 8.4V

Charging current: ≤1.2A

Discharge current: ≤2.5A

Discharge cut-off voltage: 5.0V

Battery weight: 200g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 55℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Output mode: JST plug

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Medical infusion pump, portable equipment
