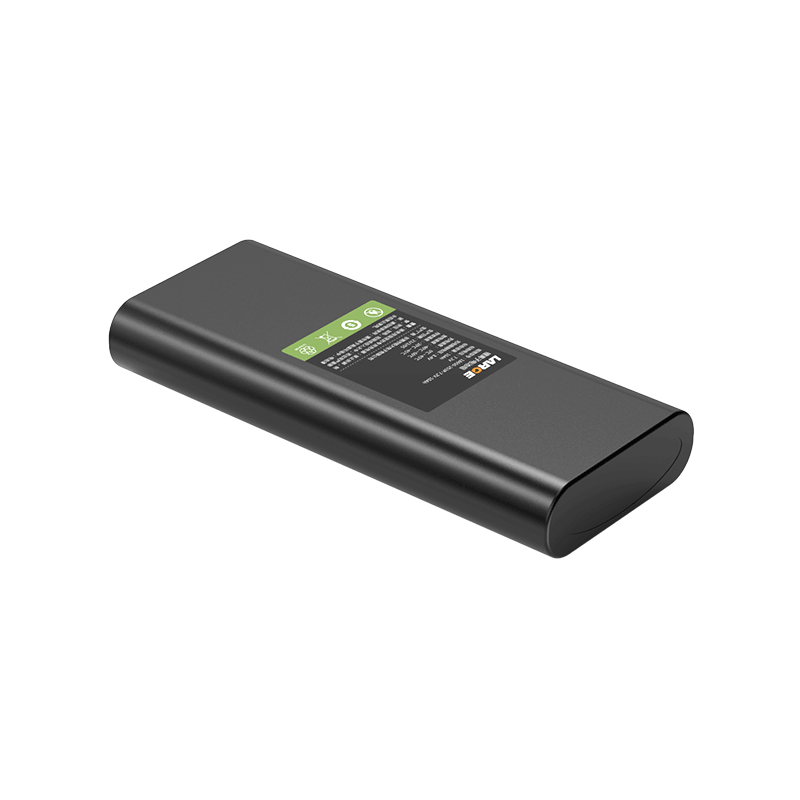

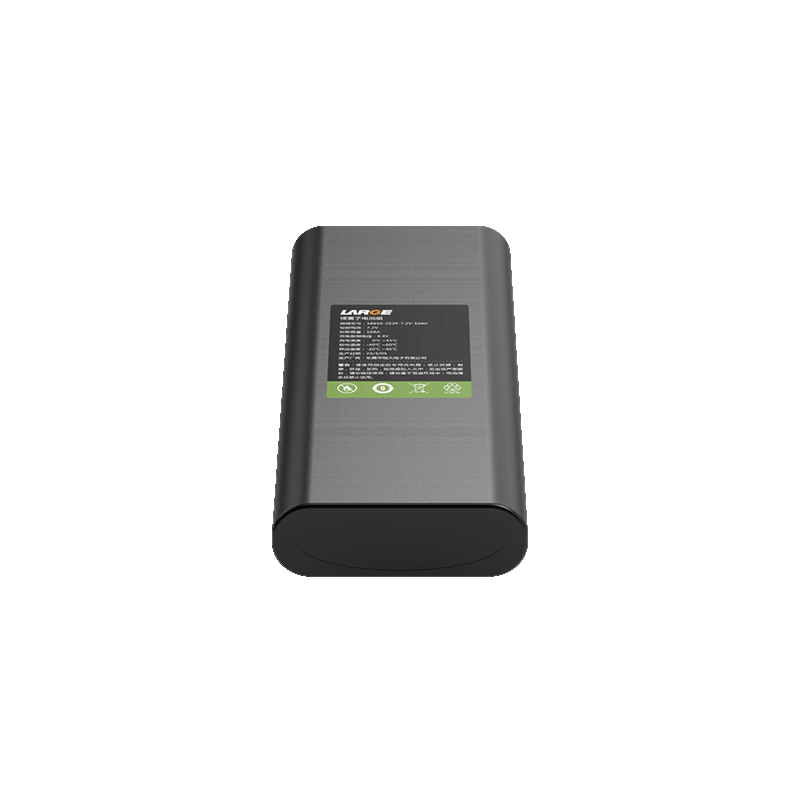

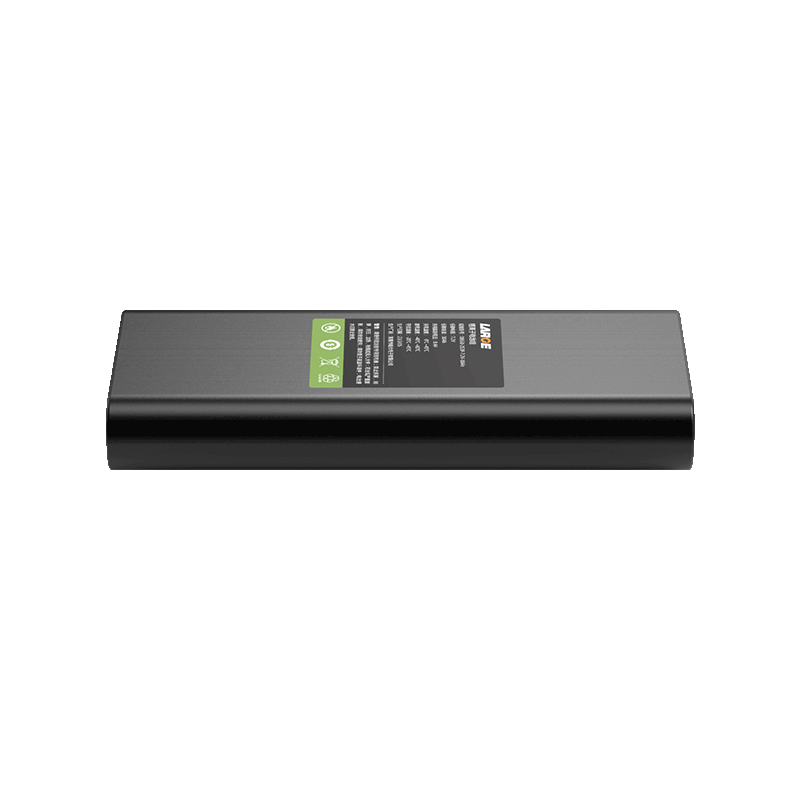

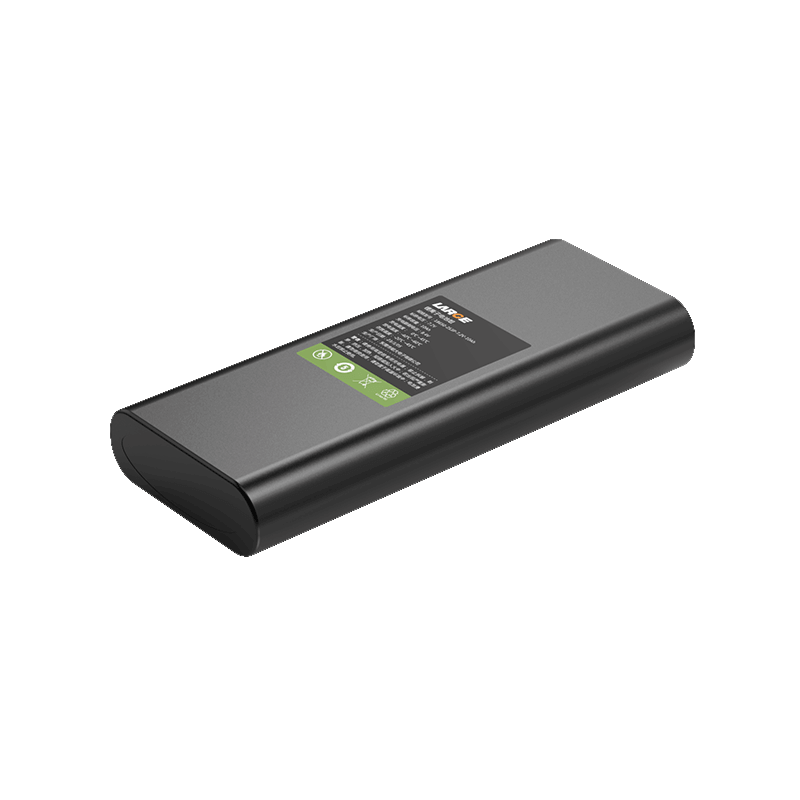

Low Temperature Battery 18650 10.8V 6700mAh Rugged Laptop

Product number: 35AQ101-02

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-3S2P-6700mAh-10.8V

Product size: 138*58*20mm

Nominal voltage: 10.8V

Nominal capacity: 6700mAh

Finished internal resistance: ≤200mΩ

Charging voltage: 12.6V

Charging current: ≤3.2A

Discharge current: ≤3.2A

Discharge cut-off voltage: 7.8V

Battery weight: 500g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: 25±3℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Applications: rugged laptop

Product Features

1.Blue PVC heat shrink film package is simple and reliable, easy to install;

2.Adopt MOLEX plug output mode to increase electrical conductivity reliability;

3.High low temperature ratio, -40℃ discharge capacity is more than 50%;

4.Use special lithium battery protection chip, with high stability, high precision monitoring, temperature protection and other functions, to minimize safety risks;

5.Use TI-SMBus software management chip with SMBus communication accurate data transmission, accurate temperature control, to minimize security risks;

6.The battery pack has nice safety, good discharge performance and long cycle life;

7.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
