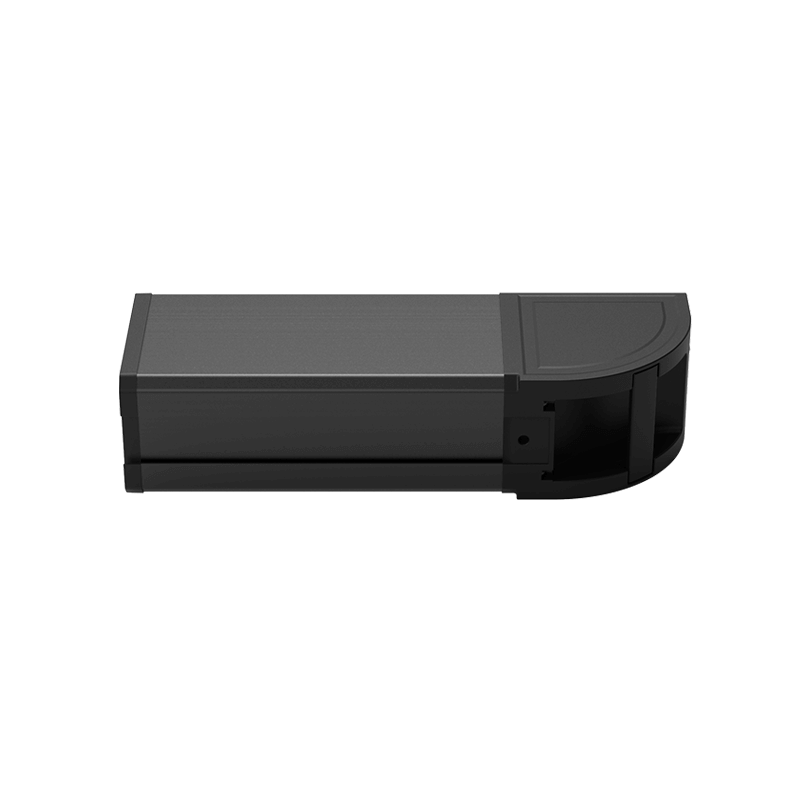

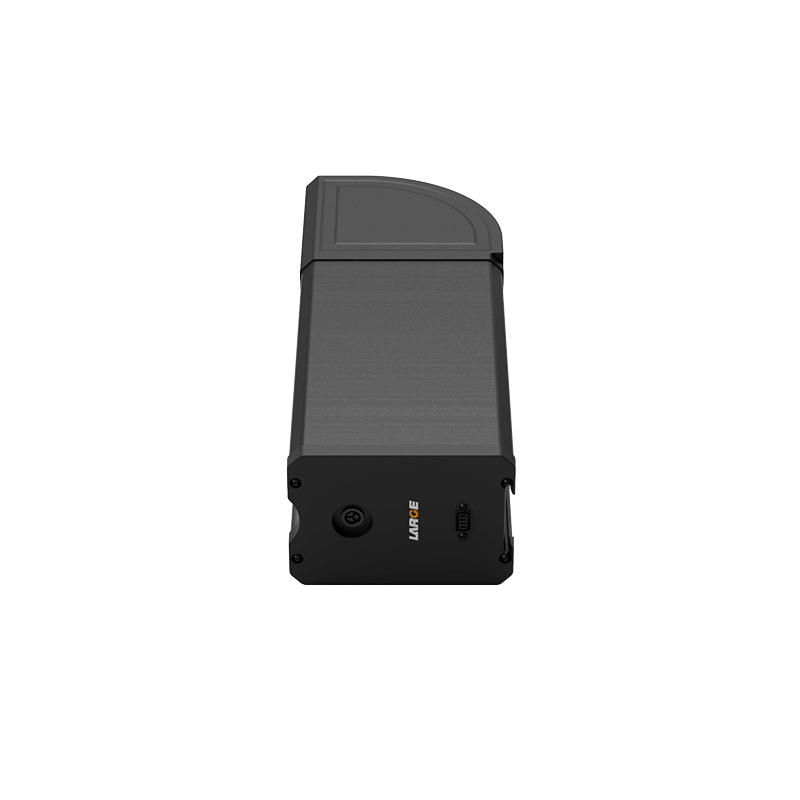

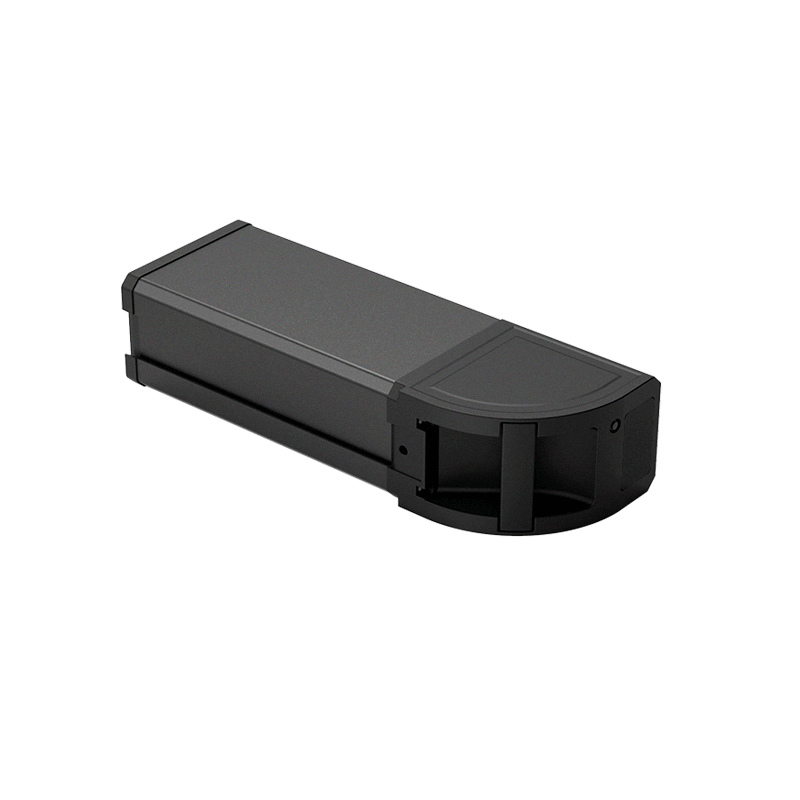

External Bone Robot Lithium Iron Phosphate Power Battery 26700 51.2V 9000mAh

Product number: 06DQ068-01

Cell model: 26700-4500mAh-3.2V

Battery specification: 26700-16S2P-9000mAh-51.2V

Product size: 397*140*97mm

Nominal voltage: 51.2V

Nominal capacity: 9000mAh

Finished internal resistance: ≤220mΩ

Charging voltage: 57.6V

Charging current: ≤8.0A

Discharge current: ≤20A

Discharge cut-off voltage: 40V

Battery weight: 4.6Kg

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: 25±3℃

Communication protocol: CAN2.0 protocol

Battery case: ABS+PC case, aluminum alloy case

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Application: rehabilitation robot, external bone robot, robot

Product Features

1.ABS+PC shell aluminum alloy shell increases the reliability of the battery;

2.The battery pack is assembled with special battery cell bracket, protected by epoxy plate and connected by special nickel sheet, which has good shock and impact resistance.

3.Hardware output:Use gold-plated shrapnel output to increase electrical reliability;

4.Use special lithium-ion battery protection chip, with high stability, high precision monitoring, precise control, temperature protection and other functions, to minimize safety risks;

5.BMS products support CAN bus. The physical layer DDL follows CAN2.0B protocol, which is optional for customers.Communication baud rate is 1000Kbps

6.The battery pack has nice safety, good discharge performance and long cycle life;

7.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept
