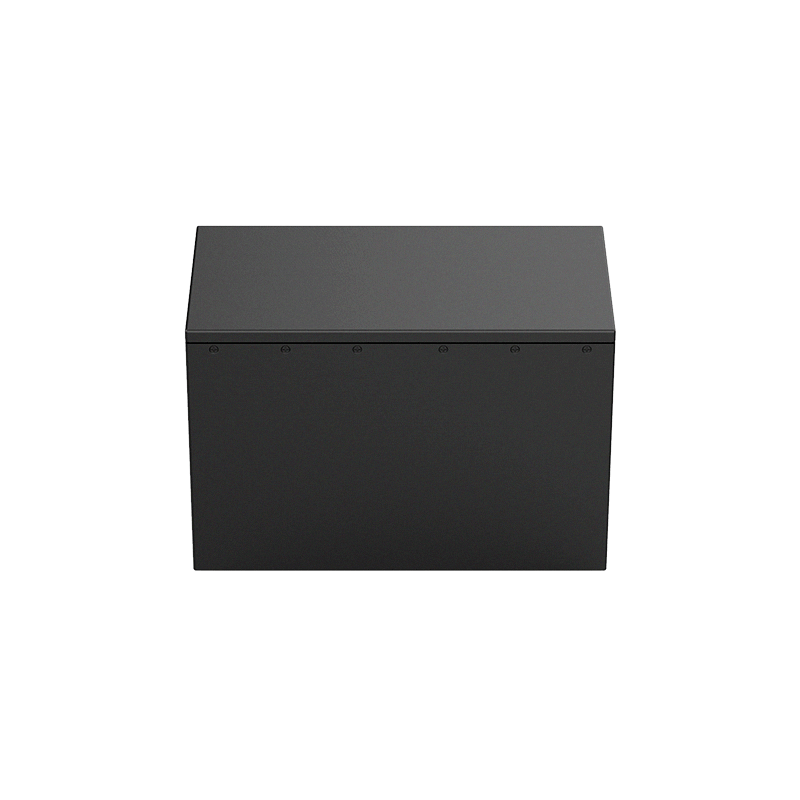

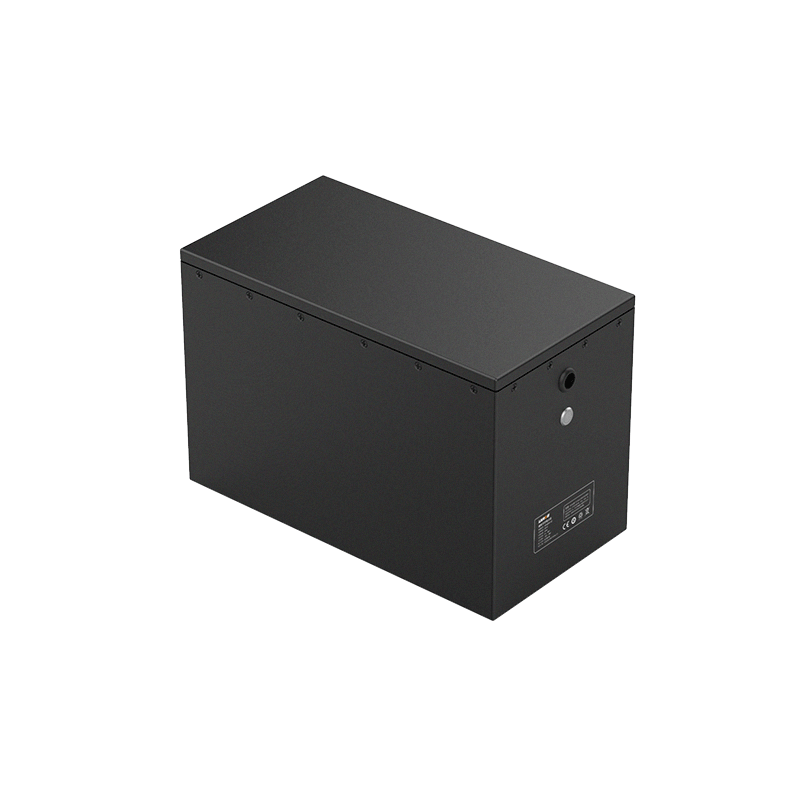

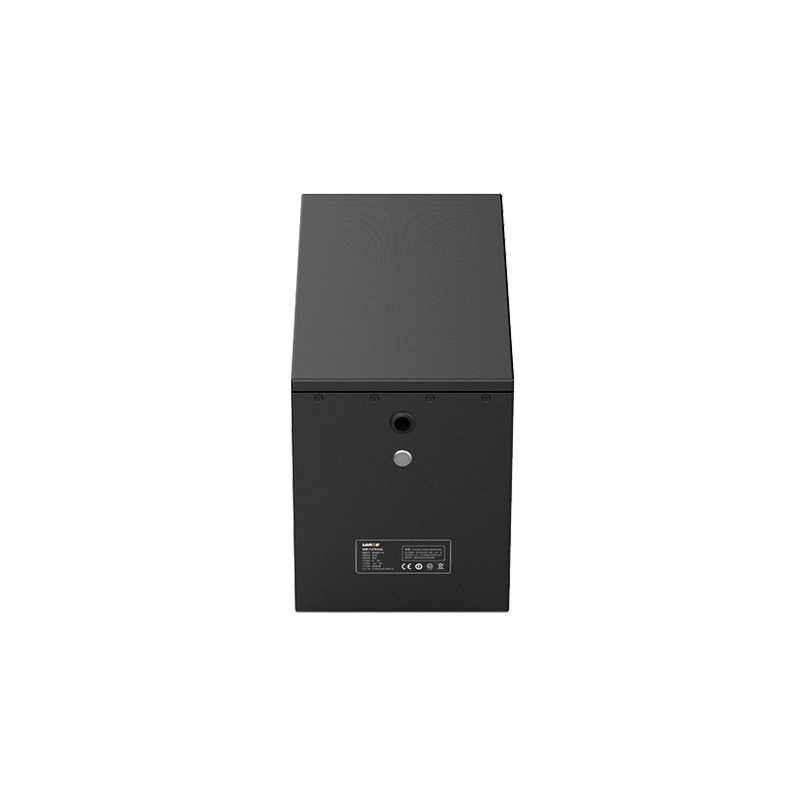

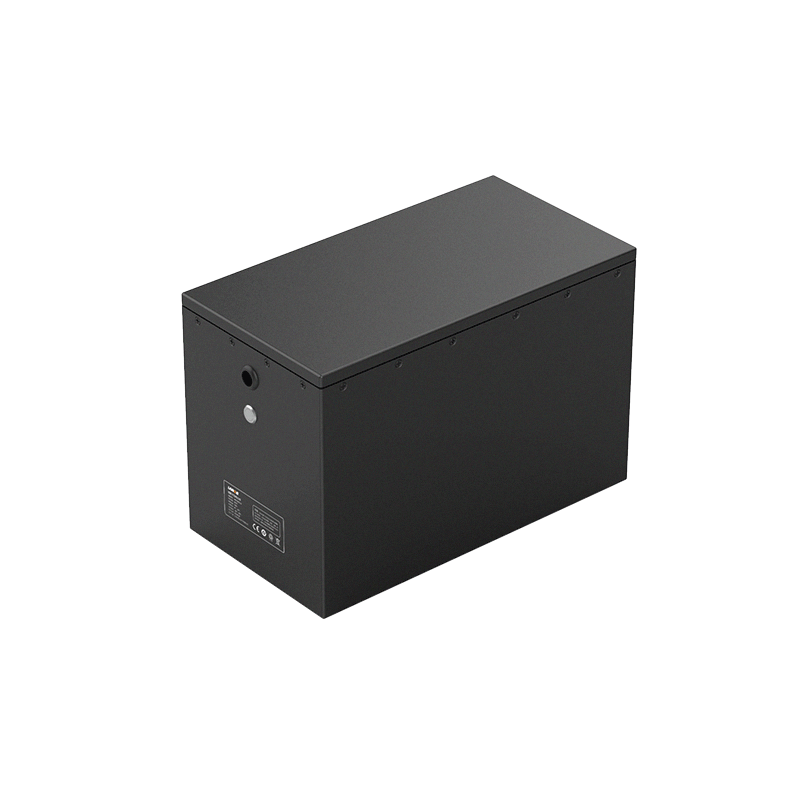

25.6V 60Ah Robot Lithium Iron Phosphate Battery Pack

Product number: 40AQ052-03

Cell model: LFL2-60 (3.2V-60Ah)

Battery specifications: 25.6V-60Ah

Product size: 300×160×205mm

Nominal voltage: 25.6V

Nominal capacity: 61.5Ah

Charging voltage: 29.2V

Charging current: 40A

Discharge current: 60A

Discharge cut-off voltage: 20V

Finished internal resistance: ≤180mΩ

Battery weight: ≤16.5Kg

Charging temperature: 0℃~+55℃

Discharge temperature: -20℃~+55℃

Storage temperature: -20~+45℃ (< 1 month) -20~ 35℃(< 3 months); -20~+25℃ (< 6 months)

Battery package: metal case

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.

Application: Robots

Product Features

1.Hardware shell is simple and reliable,and easy to install

2.RS485 communication protocol

3.Output: national standard UL wire output mode;

4.Battery protection management: Use imported well-known brand protection chip, with high stability, high precision monitoring and precise control, to eliminate security risks.

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life,which in line with low carbon, energy saving, environmental protection value concept.
