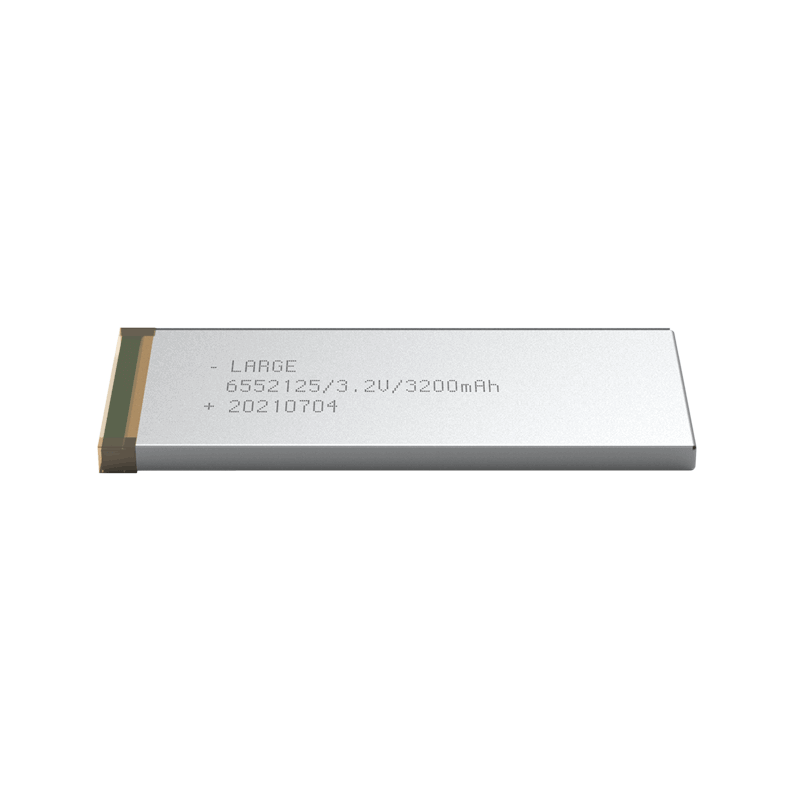

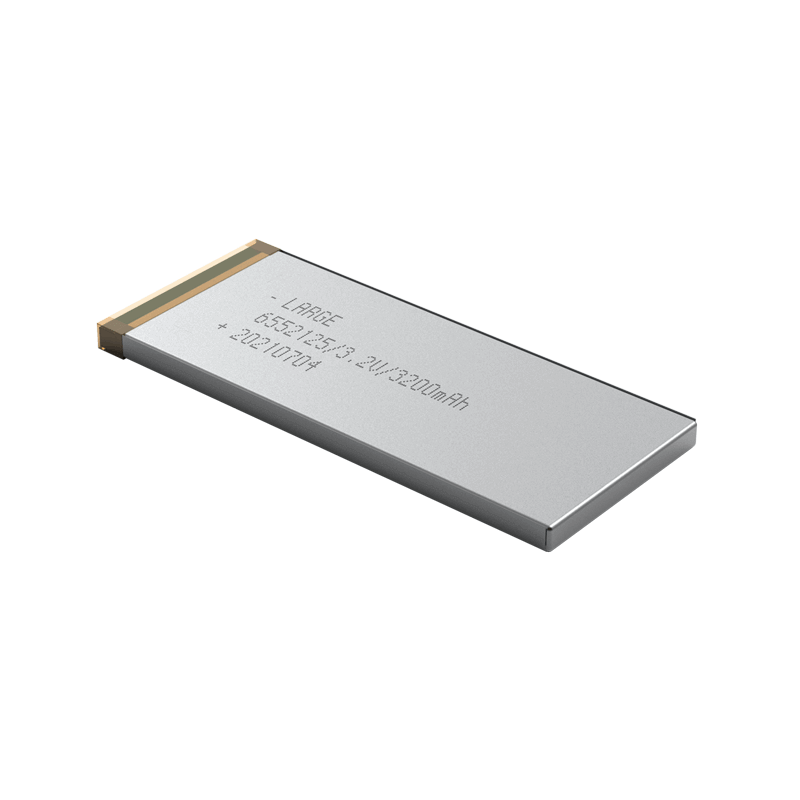

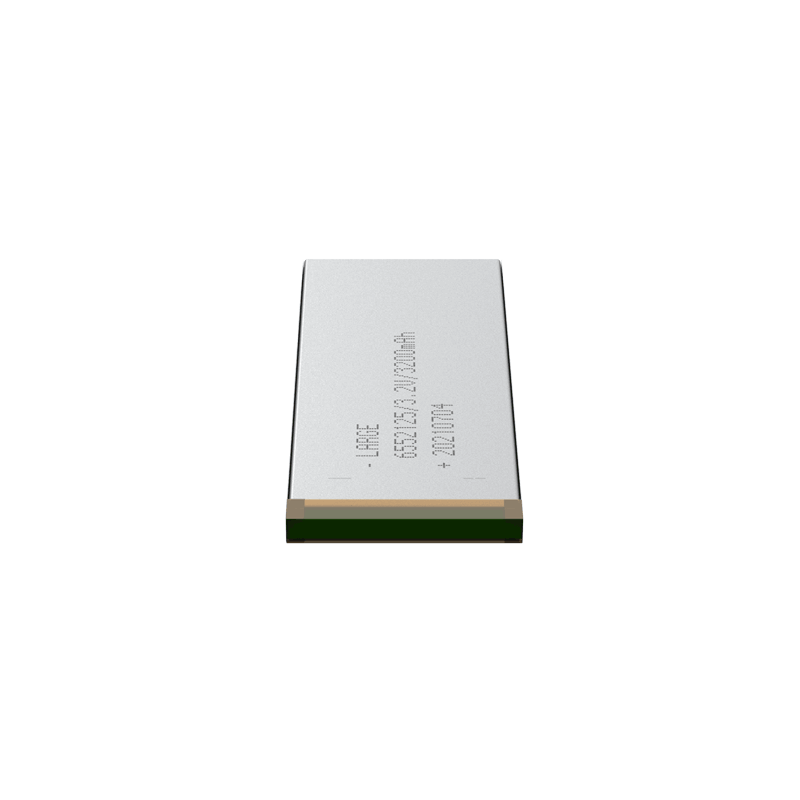

6252125 3.2V 3200mAh LiFePO4 Battery for Backup Power Battery

Product number:37DZ076-02

Cell model: 6252125/3.2V/3200mAh

Battery specification: 6552125-1S1P/3.2V/3200mAh

Nominal voltage: 3.2V

Nominal capacity: 3200mAh

Charging voltage: 3.65V

Charging current: ≤ 2.5a

Discharge current: 3A

Instantaneous discharge current: 5-12A

Discharge cut-off voltage: 2.0V

Finished product internal resistance: ≤110mΩ

Battery weight: 78G

Product size: 6.5*54*132mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 45 ° C

Battery shell: Polymer battery plus board out terminal wire

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: access control power battery
