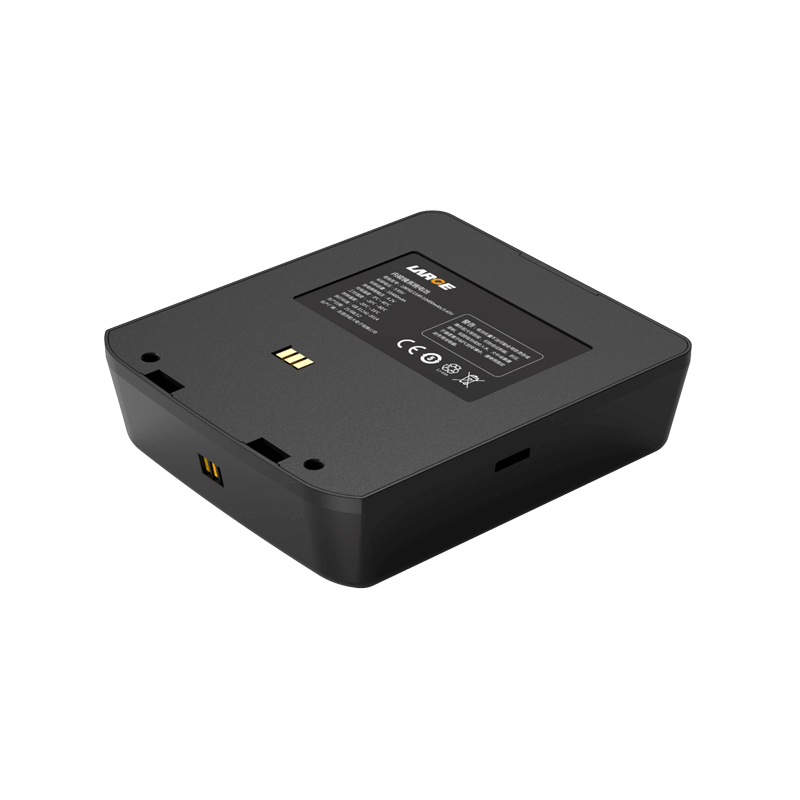

18650 10.4Ah 3.65V Lithium-ion Battery for Endoscopic

Product number: 01DQ0057-01

Cell model: LR1865SK/2600mAh/3.65V

Specification: 18650/1S4P/ 10400 mAh / 3.65V

Product size: 85*74*21.5mm

Nominal voltage: 3.65V

Nominal capacity: 10.4Ah

Finished product internal resistance: ≤220mΩ

Charging voltage: 4.2V

Charging current: ≤3.0A

Discharge current: ≤3.0A

Discharge cut-off voltage: 3.0V

Battery weight: 210G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: ABS+PC case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Endoscope equipment, medical equipment

Product features

1.ABS+PC shell increases battery reliability and firmness.

2.Hardware output: Gold-plated metal output mode is used to increase conductive reliability;

3.Battery protection management: Adopt dedicated lithium battery protection chip with good stability, nice precision monitoring and precise control,temperature protection and other functions to eliminate security risks to the greatest extent.

4.The battery pack has good safety, nice discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
