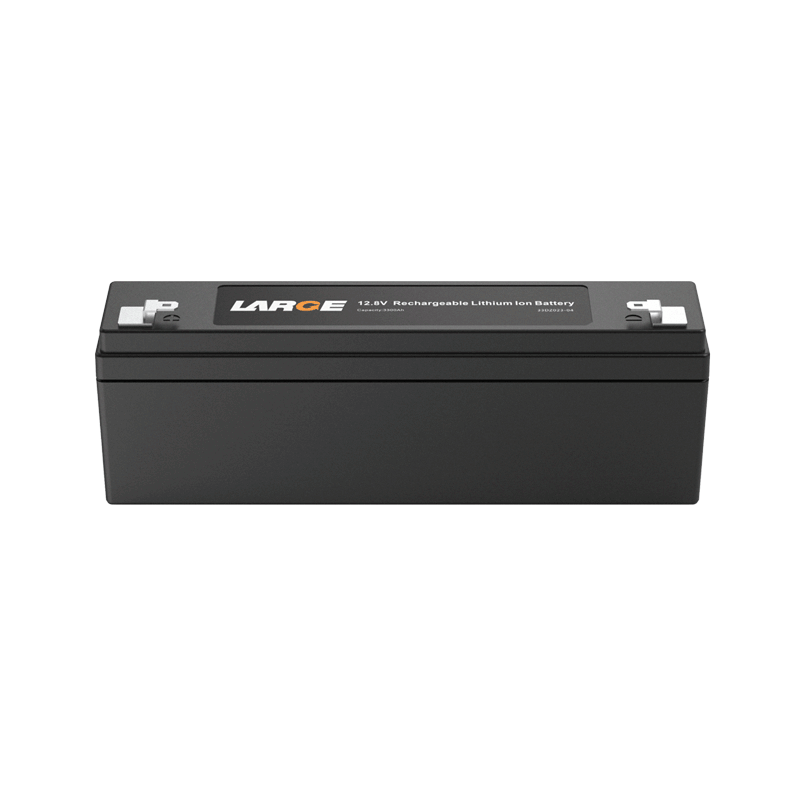

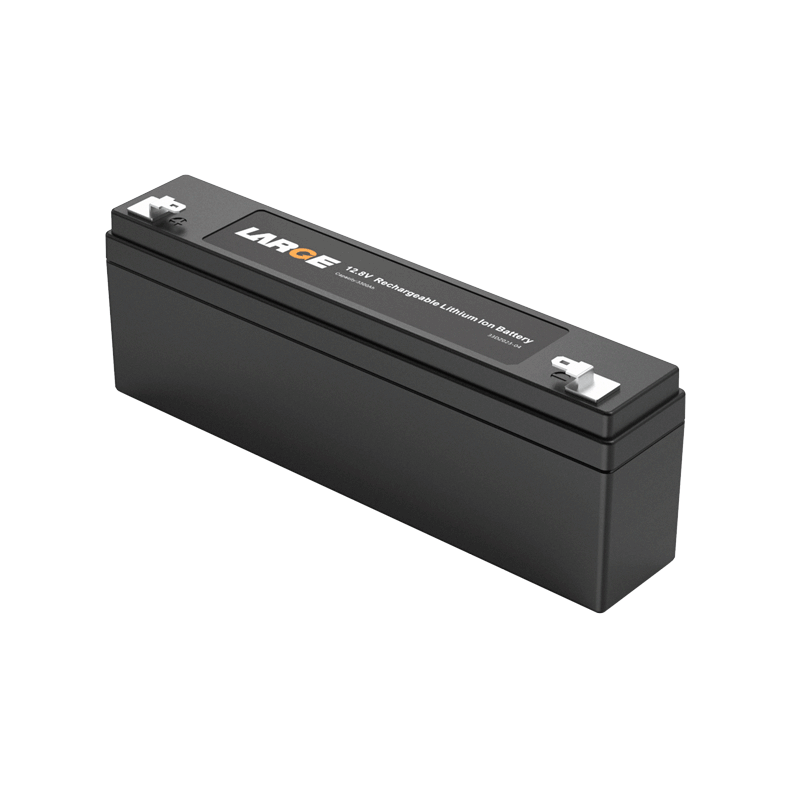

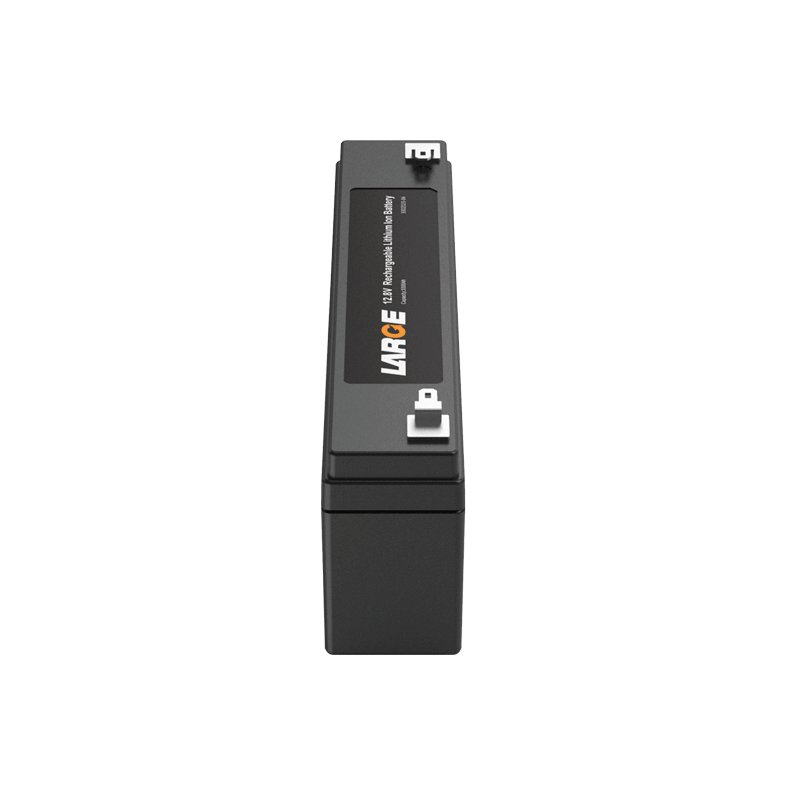

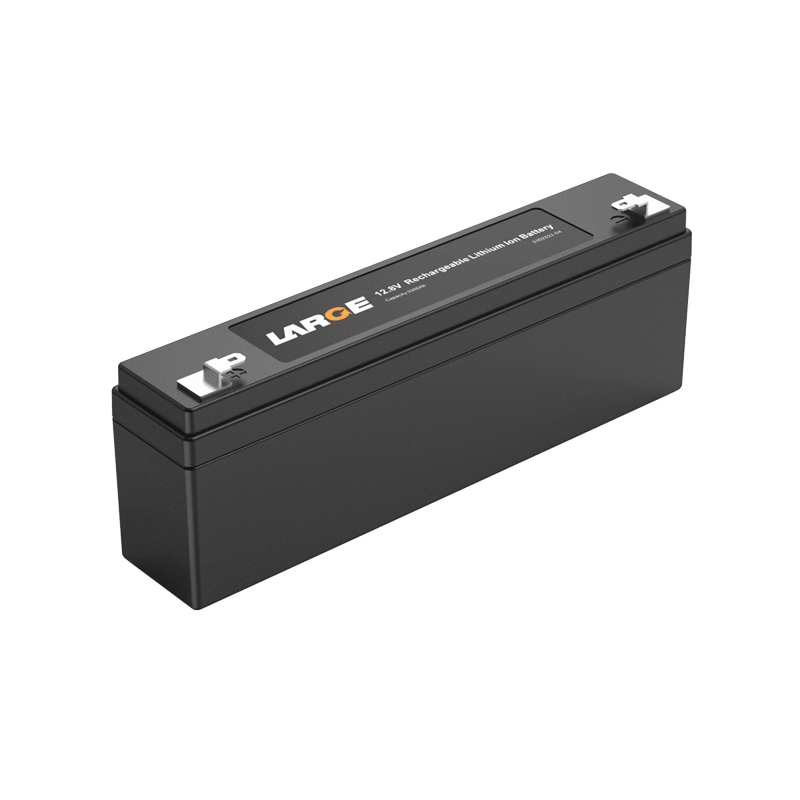

26650 12.8V 3300mAh Lithium Ion Battery for Medical Device

Product number: 33DZ023-04

Cell model: 26650/3.2V/3400mAh

Specification: 26650-4S1P-3300MAH-12.8V

Nominal voltage: 12.8V

Nominal capacity: 3300mAh

Charging voltage: 14.6V

Charging current: ≤1650mA

Discharge current: ≤3300mA

Instantaneous discharge current: 4-8A

Discharge cut-off voltage: 8.8V

Product internal resistance: ≤200mΩ

Battery weight: 400G

Product size: L*W*H 178.6*35*59.5mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 45 ° C

Battery case: plastic case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature and so on

Application: Backup power supply

Product Features

1.CQC (GB31241-2014) standard

2.Cell: A super-safe lithium iron phosphate cell is used to charge at -20C.

3.The battery pack has good safety, low temperature performance and long cycle life.

4.Overtemperature protection

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
