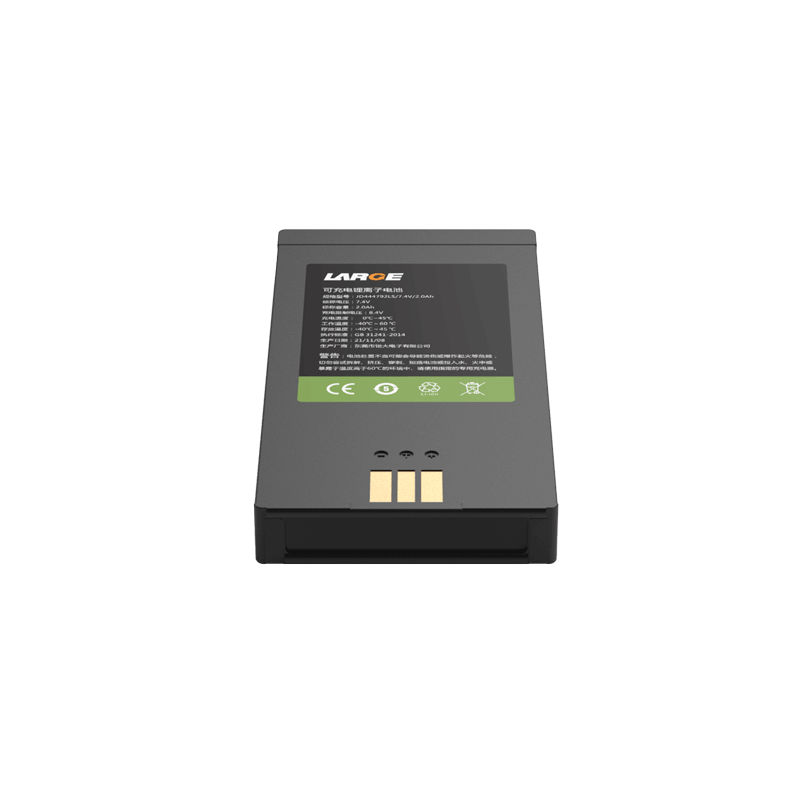

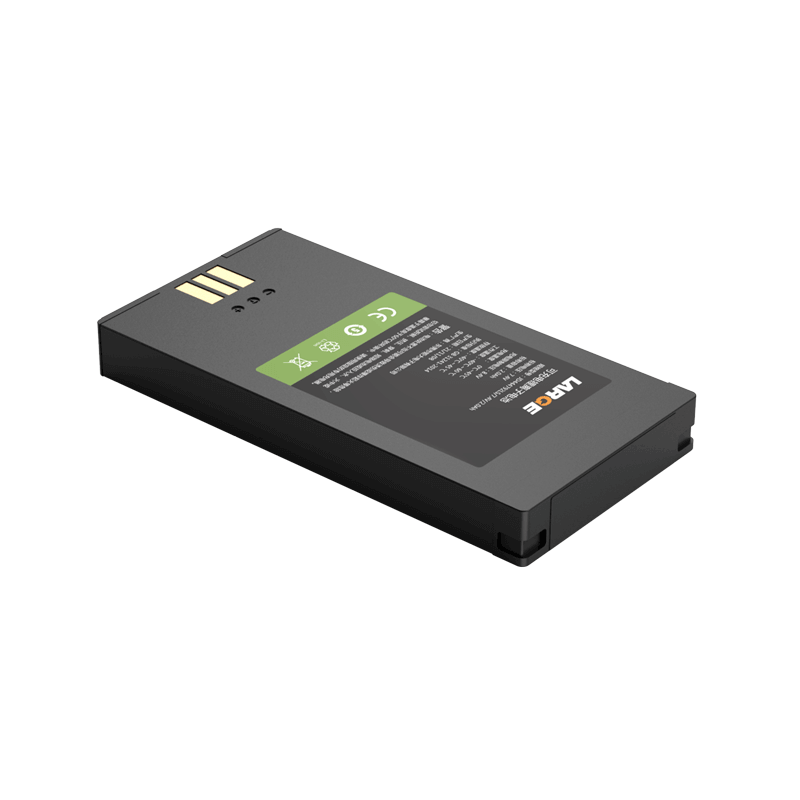

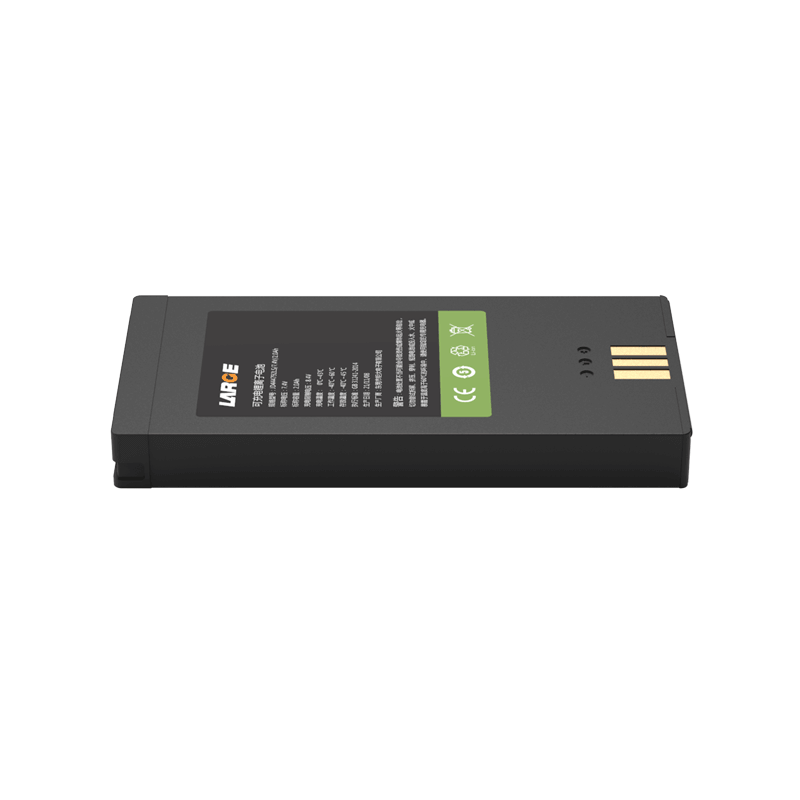

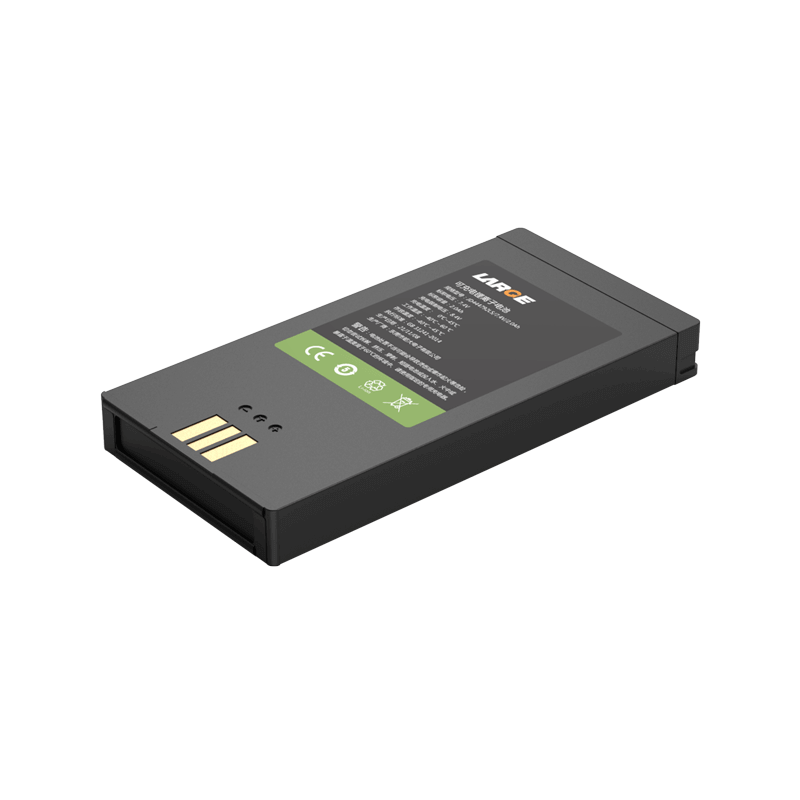

7.4V 2.0Ah Lithium Polymer Battery for Printer

Product number: 36AQ6908-01

Cell model: JD444792LS/2000mAh/3.7V

Specification: 7.4V-2.0Ah

Product size: 100±0.4mm *50±0.4mm *11±0.4mm

Nominal voltage: 7.4V

Nominal capacity: 2.0Ah

Charging voltage: 8.4V

Charging current: 1.95A

Discharge current: 1.95A

Discharge cut-off voltage: 5V

Product internal resistance: ≤200mΩ

Battery weight: 110G

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -40 to +45 ° C (less than 1 month) -40 to 35 ° C (less than 3 months); -20~+25℃ (less than 12 months)

Battery case: plastic case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: Printer

Product Features

1.Plastic shell is simple, reliable and easy to install.

2.A Maxim 1-wire communication protocol

3.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

4.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.

5.The battery pack is safe, has good discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
