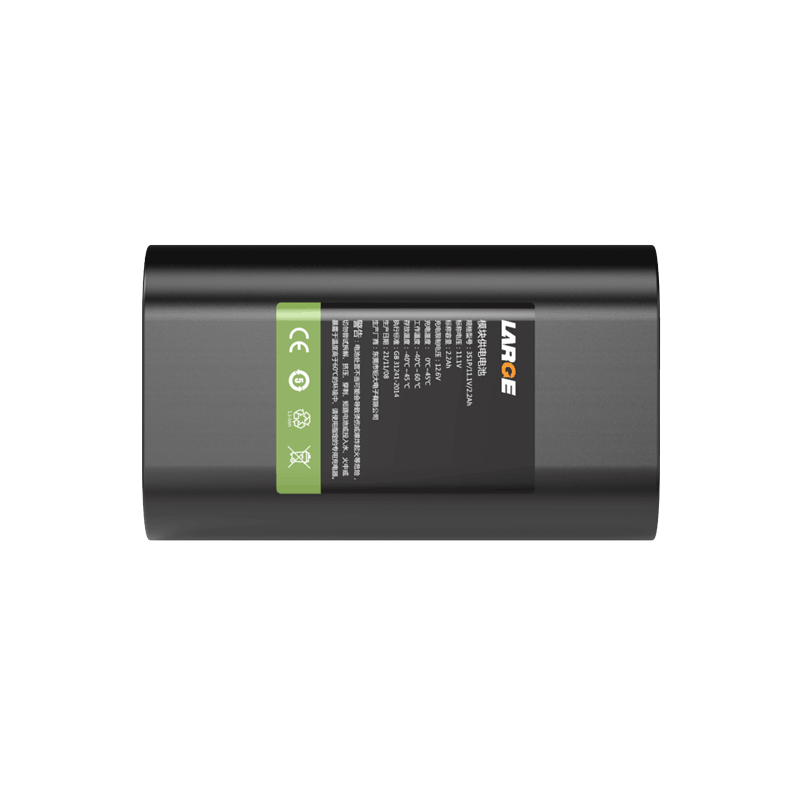

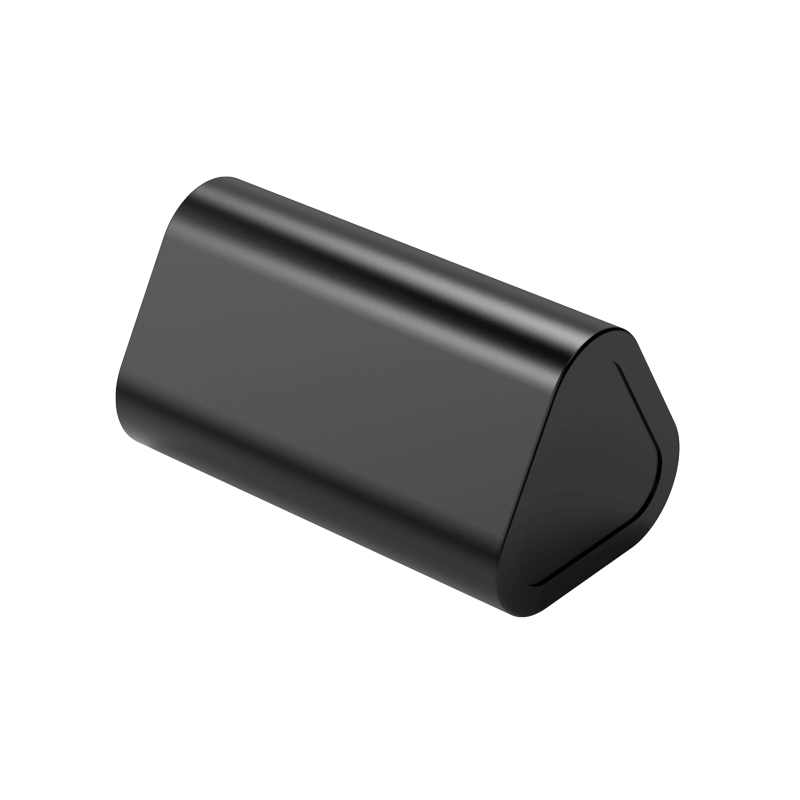

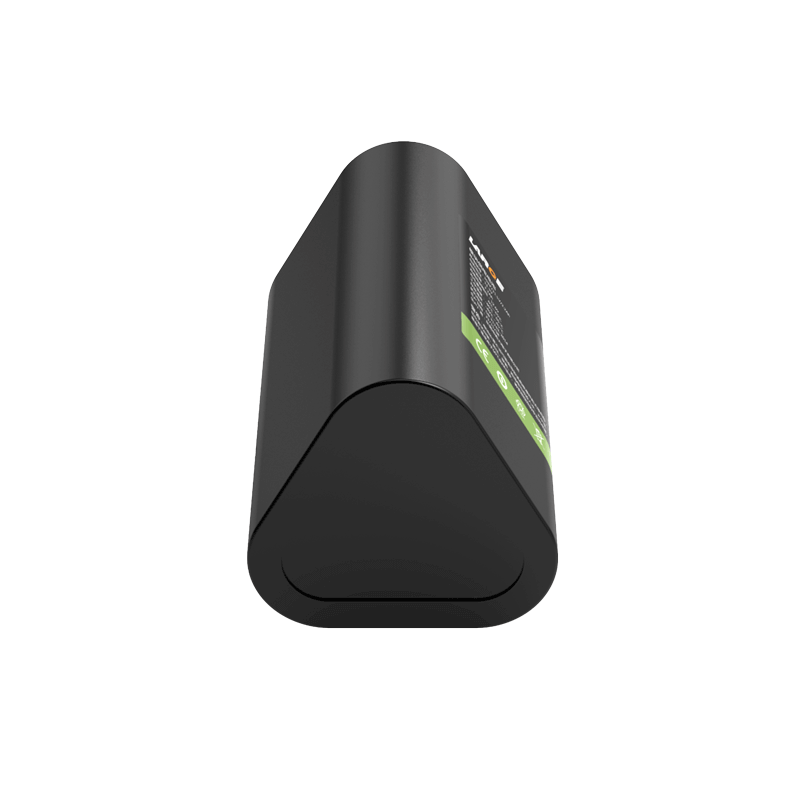

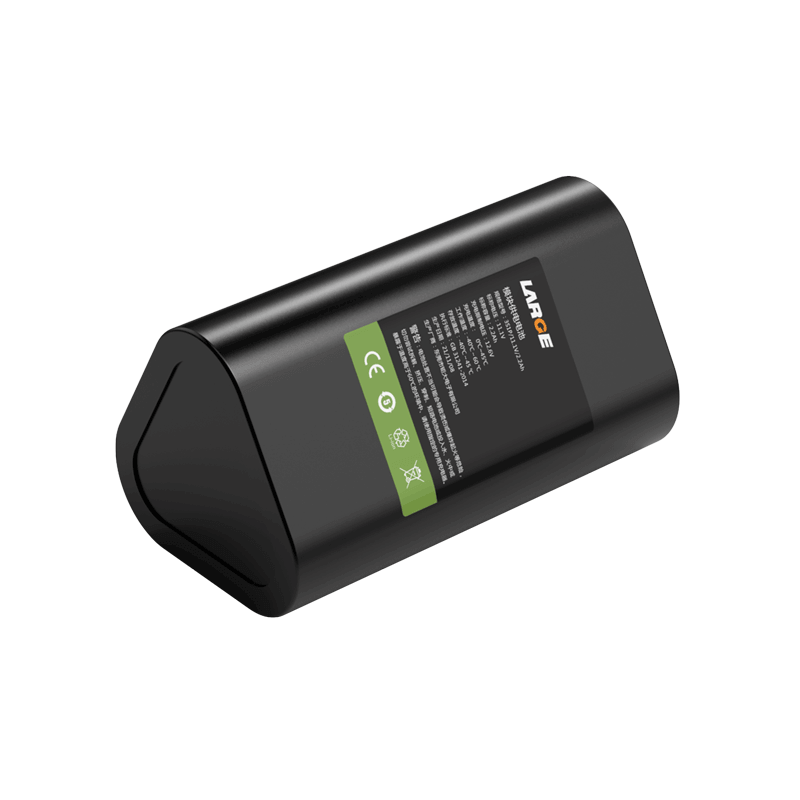

18650 11.1V 2.2AH Low Temperature Battery for Module Power Supply

Project number: 42DZ002-02

Cell model: 18650 3.7V/ 2.2AH

Specification: 3S1P/11.1V/ 2.2AH (low temperature type)

Nominal voltage: 11.1V

Nominal capacity: 2.2Ah

Charging voltage: 12.6V

Charging current: ≤ 1.1A

Discharge current: 2.2A

Instantaneous discharge current: 4-10A

Discharge cut-off voltage: 7.5V

Product internal resistance: ≤200mΩ

Battery weight: 200G

Product size: 38.5*38*68mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -40°C to 45°C

Battery case: PVC

Communication: no

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: module power supply, intelligent switch

Product Features

1.Energy consumption is low;

2.The battery pack is safe and has long cycle life.

3.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
