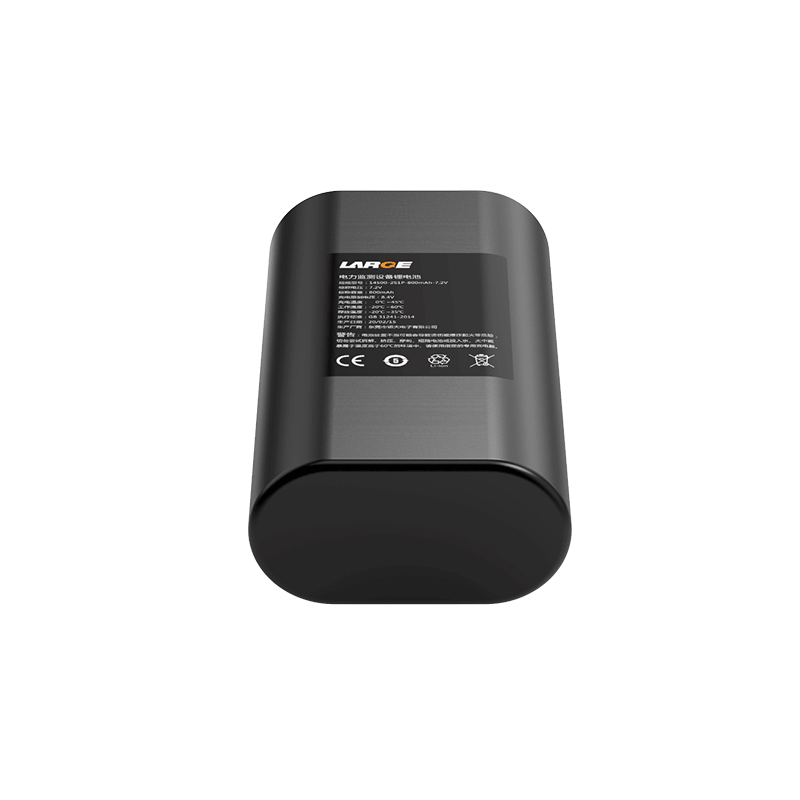

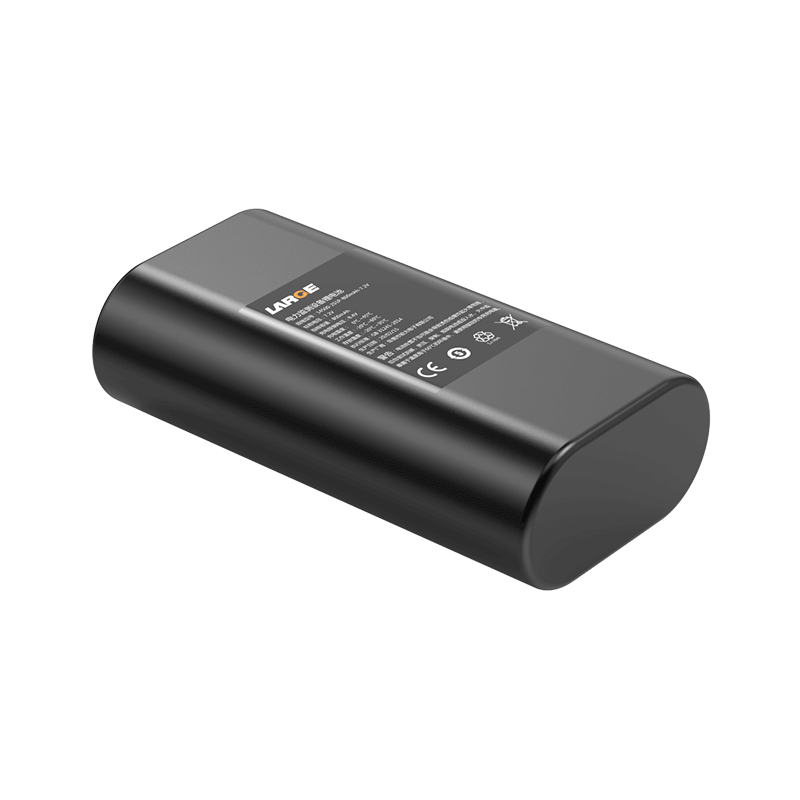

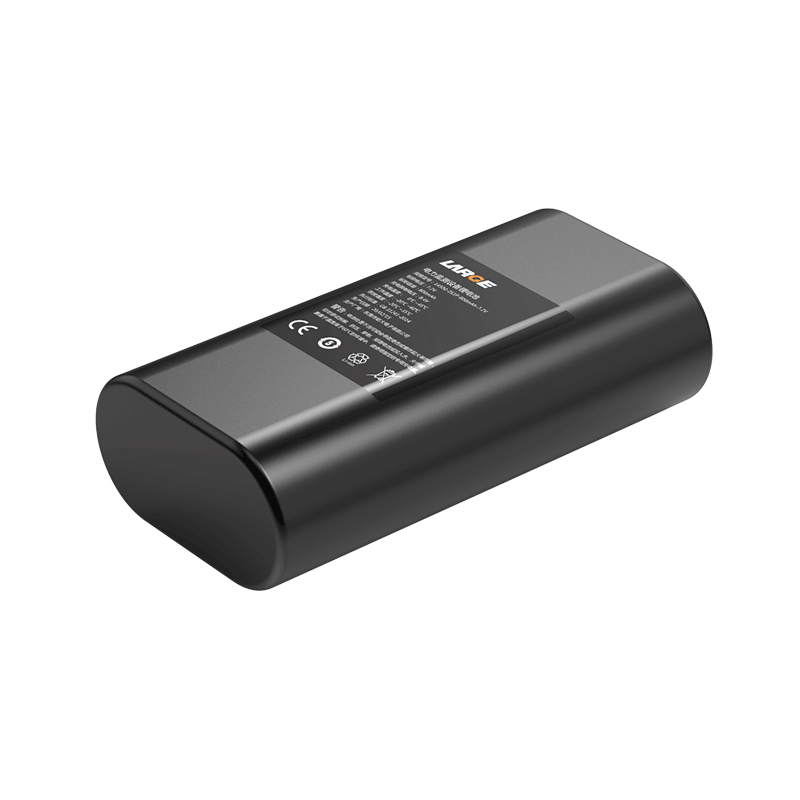

14500 800mAh 7.2V Lithium-ion Battery for Power Monitoring

Product number: 34AQ020-05

Cell model: 14500-800MAH-3.6V

Specification: 14500-2S1P-800MAH-7.2V

Product size: 56*29*16mm (Max)

Nominal voltage: 7.2V

Nominal capacity: 800mAh

Charging voltage: 8.4V

Charging current: ≤0.35A

Discharge current: ≤0.7A

Discharge cut-off voltage: 6.0V

Product internal resistance: ≤230mΩ

Battery weight: 40G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: blue PVC heat shrinkable film package

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Power testing equipment, testing equipment

Product Features

1.Blue PVC heat shrinkable film is simple, reliable and easy to install.

2.Connector plug terminal: The JST plug is used to output the connector to increase conductive reliability.

3.Battery management: Adopt imported seigong protection chip with good stability, high precision monitoring, precise control, and ESD protection, eliminating safety risks to the maximum.

4.The battery pack has good safety, nice discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
