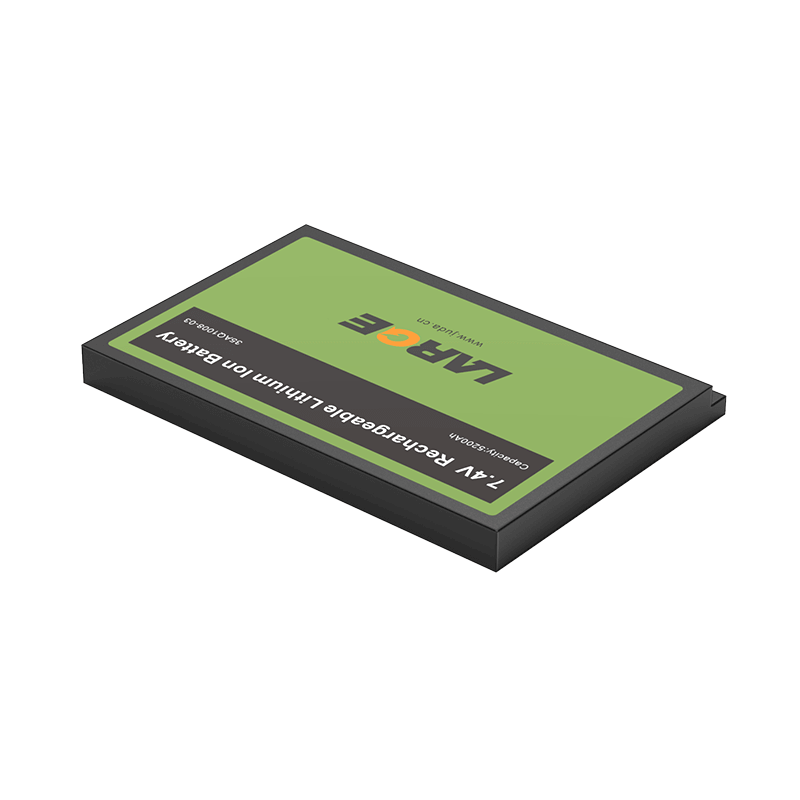

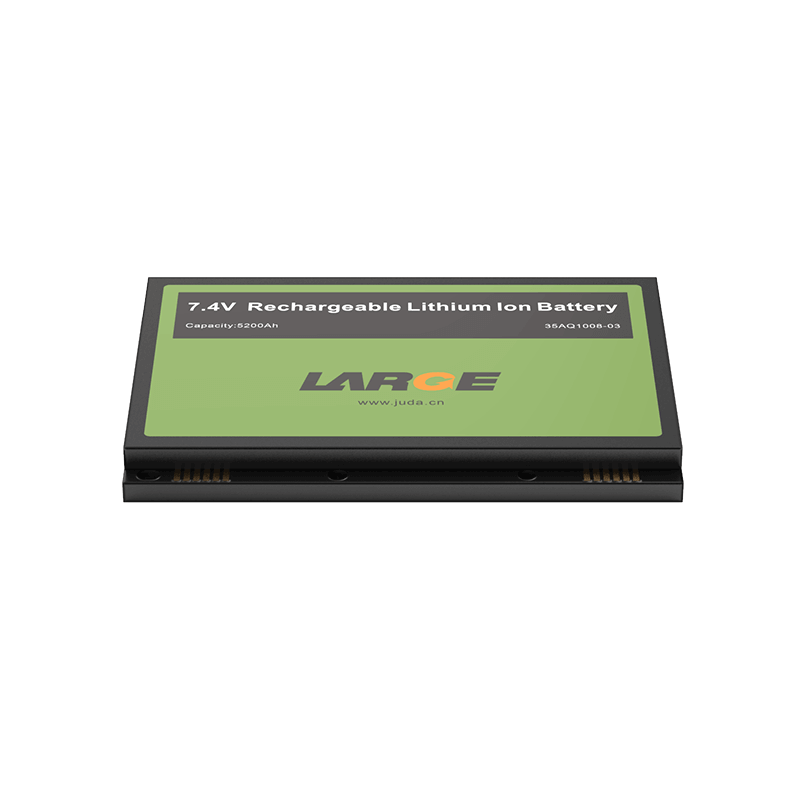

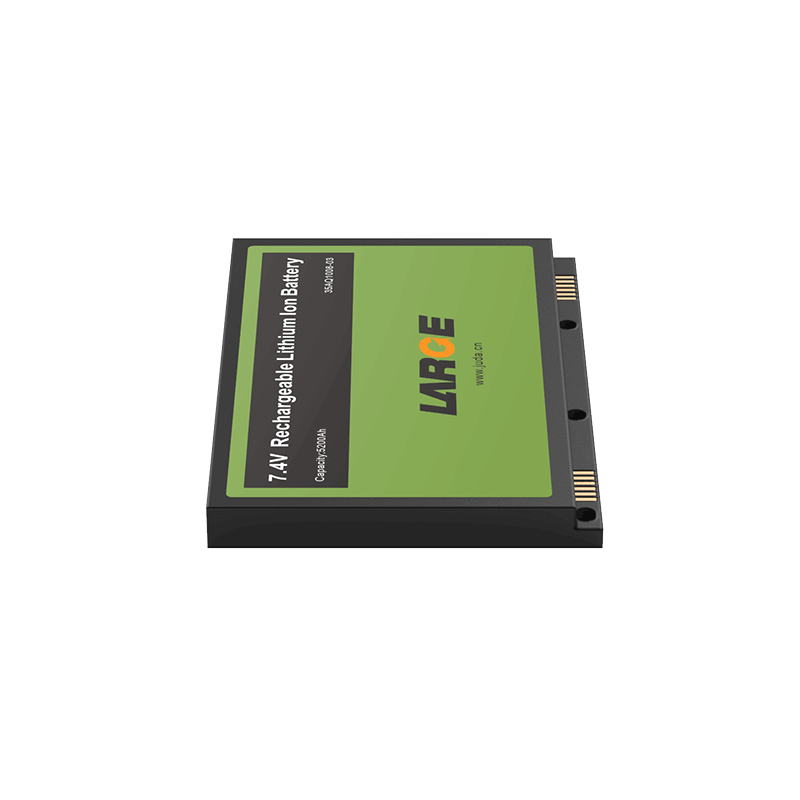

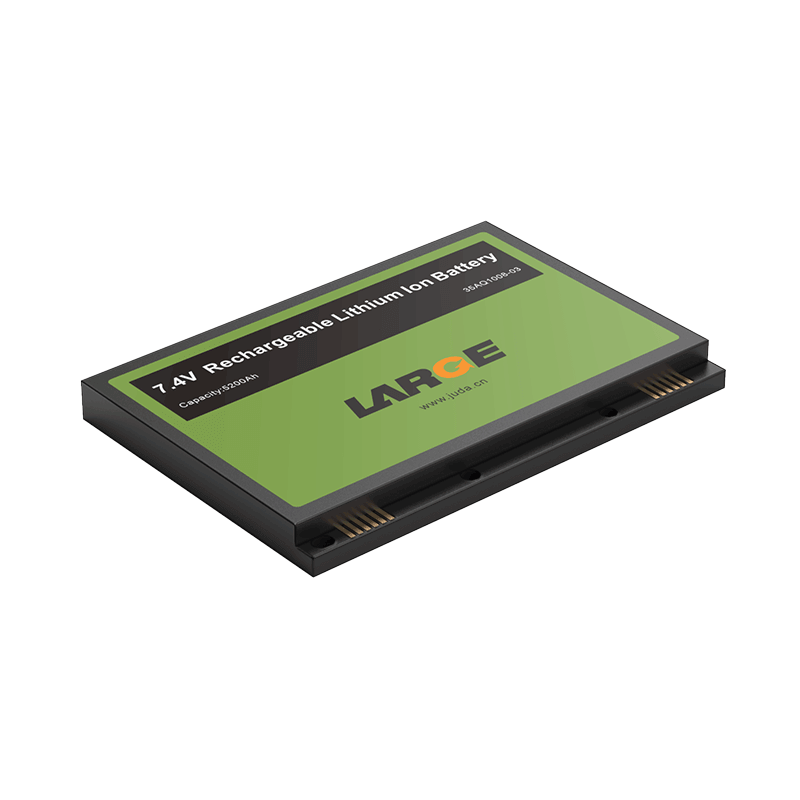

7.4V 2700mAh-5200mAh Low Temperature Battery for Rugged Laptop

Project number: 35AQ1008-03

Cell model: LA524885L/2700mAh/3.7V; LA528985L / 5200 mah / 3.7 V

Battery specification: JDM-1008-03/2S1P/2700mAh/5200mAh-7.4V

Nominal voltage: 7.4V

Nominal capacity: 2700mAh/5200mAh

Charging voltage: 8.4V

Charging current: ≤1.325A/ 2.575A

Discharge current: 1.325A/2.575A

Instantaneous discharge current: 4.0A

Discharge cut-off voltage: 5.0V

Product internal resistance: ≤180mΩ

Battery weight: 260 g

Product size: 12*99.8*114.8mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: 0 to 25 ° C

Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Ruggedized laptop
