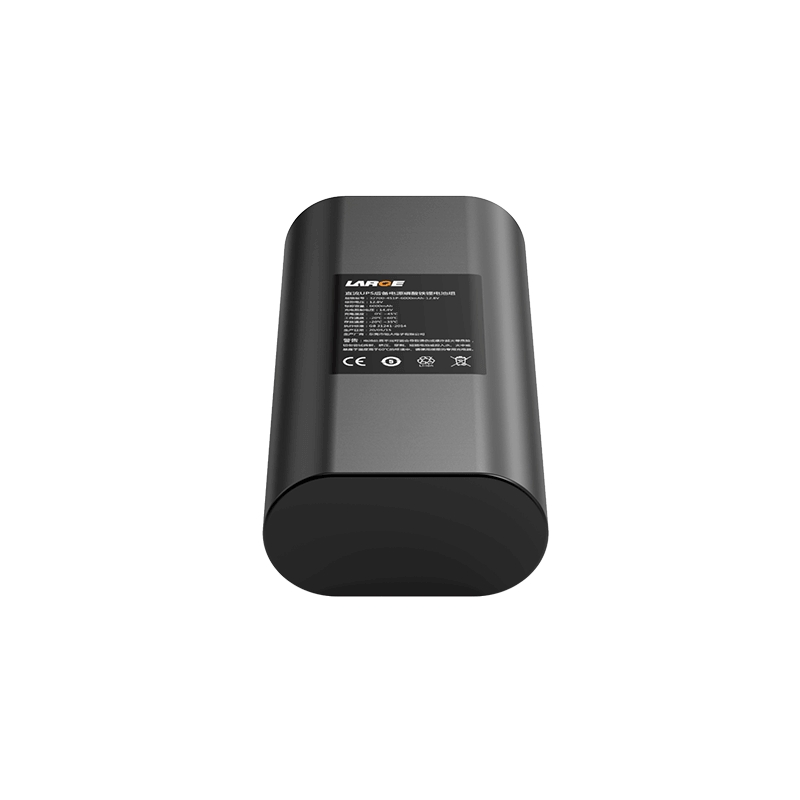

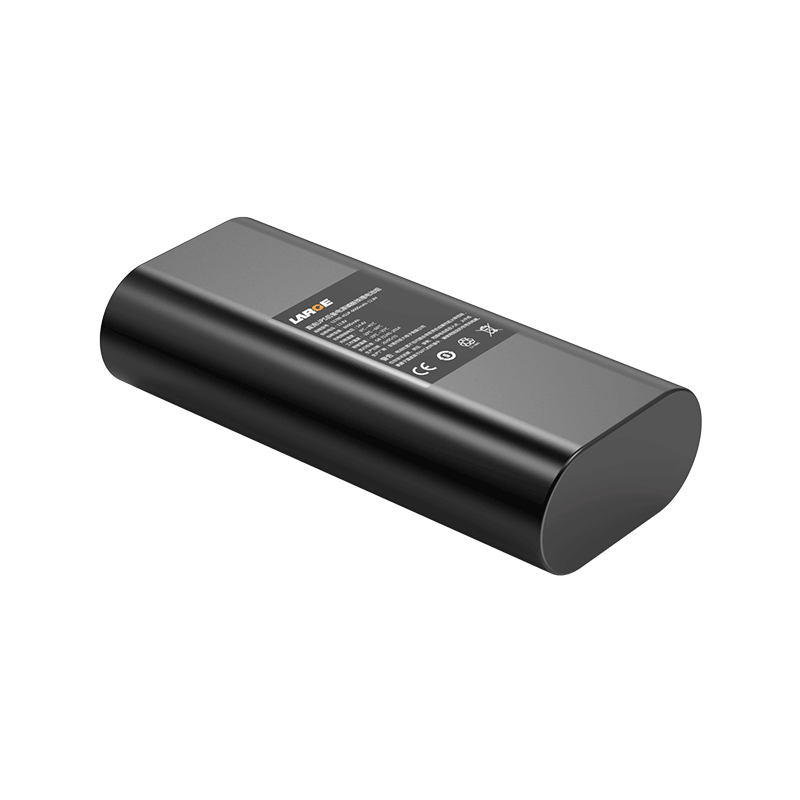

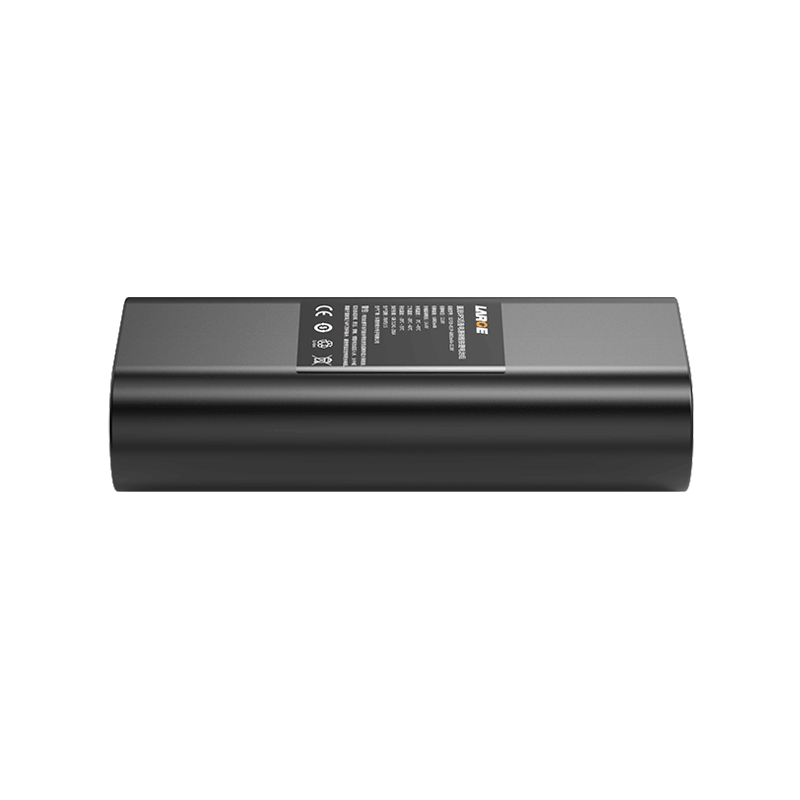

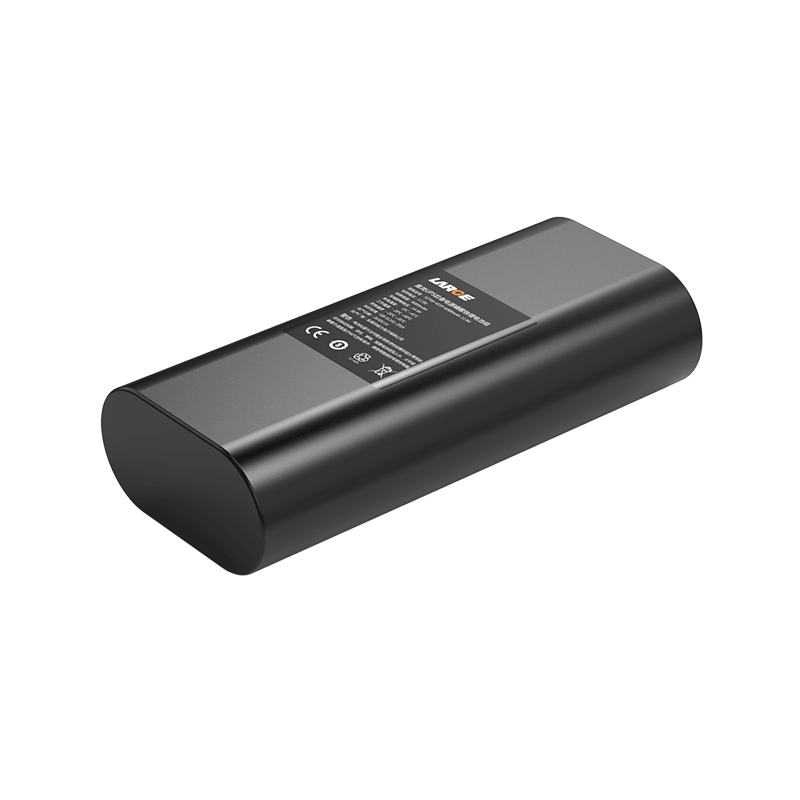

32700 12.8V 6000mAh LiFePO4 Battery for DC UPS Backup Power Supply

Product number: 05DQ0062-01

Cell model: 32700-6000MAH-3.2V

Battery specification: 32700-4S1P-6000MAH-12.8V

Product size: 145*66*42mm

Nominal voltage: 12.8V

Nominal capacity: 6000mAh

Finished internal resistance: ≤200mΩ

Charging voltage: 14.4V

Charging current: ≤2.7A

Discharge current: ≤8A

Discharge cut-off voltage: 10.0V

Battery weight: 600g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: blue PVC heat shrinkable film package

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on

Application: DC UPS backup power battery, portable energy storage backup power supply

Product Features

1.Blue PVC heat shrink film package is simple and reliable, and is easy to install.

2.Connector output terminal: Use DC5521 plug output mode to increase the conductivity reliability of the plug.

3.Battery protection management: Use special lithium battery protection chip with high stability, nice precision monitoring, precise control,temperature protection and other functions, so as to maximize the elimination of safety hazards;

4.The battery pack has good safety, lithium iron phosphate system and long cycle life;

5.The battery pack has long cycle life, in line with the value of low carbon, energy saving, environmental protection;
